Soil Testing Equipment

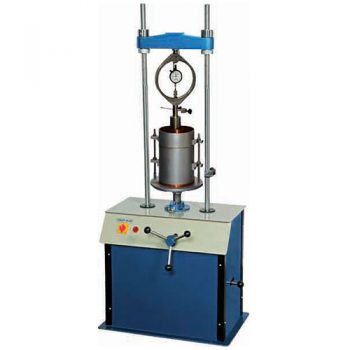

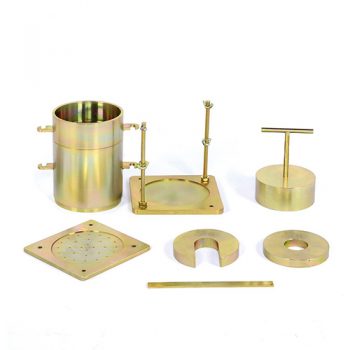

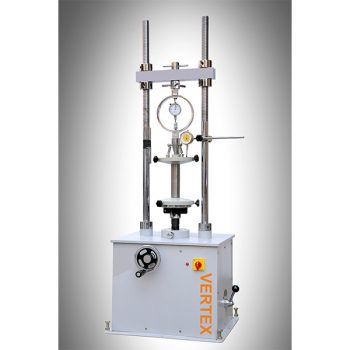

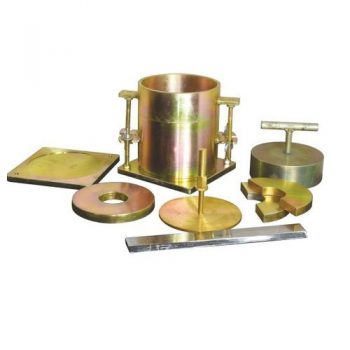

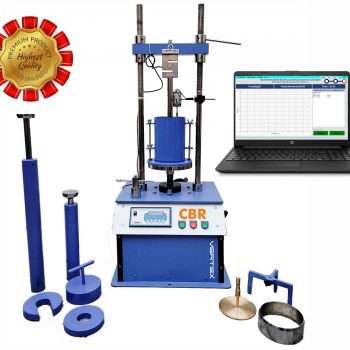

(CBR) Load Frames are used to apply load on the test specimen. The capacity and speed depend on the requirement of a particular test and these are used in C.B.R. triaxial, unconfined compression test. Further, these

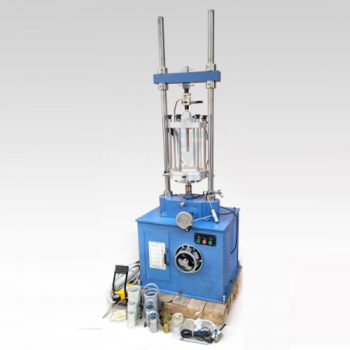

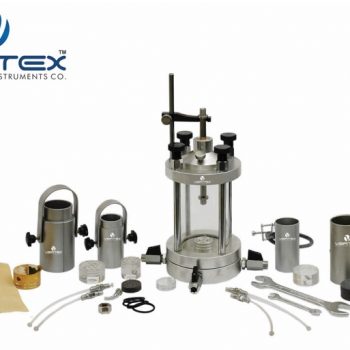

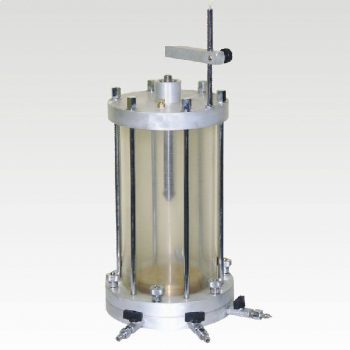

Triaxial UU Test System Determining the mechanical properties of soils is a very important step to design foundations, embankments, and other soil structures.

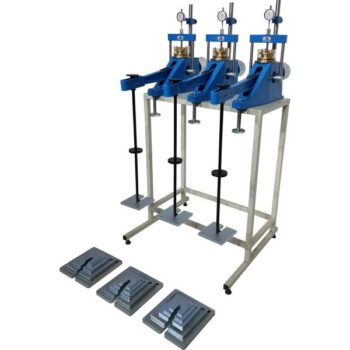

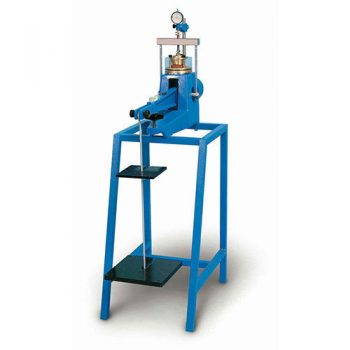

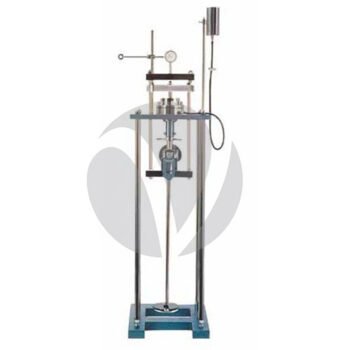

Consolidation Apparatus (Front Loading Type) Rigidly manufactured from aluminium alloy casting to provide a high degree of accuracy with any frame distortion under load.

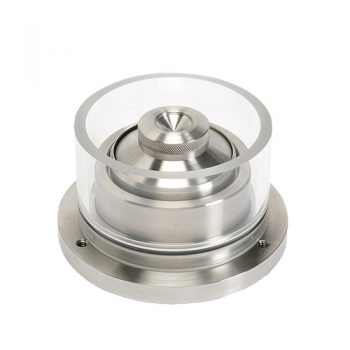

Consolidation Cells (Floating) Complete cell assembly features stainless steel construction with a self-trimming cutter ring. Similar in construction to a fixed ring cell with the exception that the lower porous stone

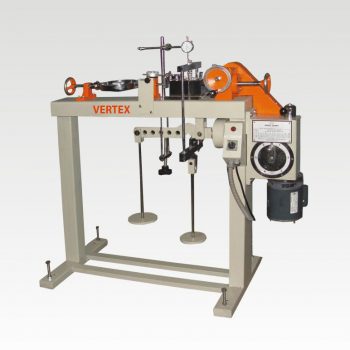

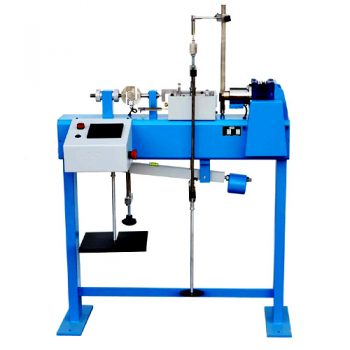

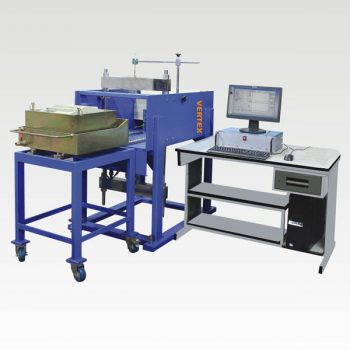

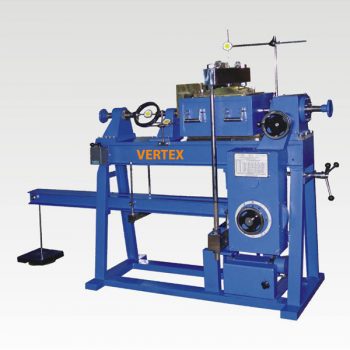

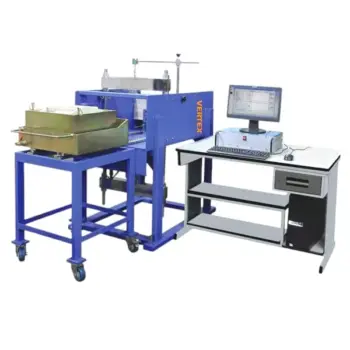

Digital Microprocessor Based Direct Shear accepts specimens 60 mm, 100 mm square, or 2.5 inches in diameter. The use of a microprocessor-controlled drive system and keyboard entry gives the apparatus a wide

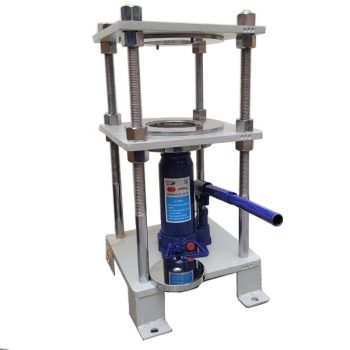

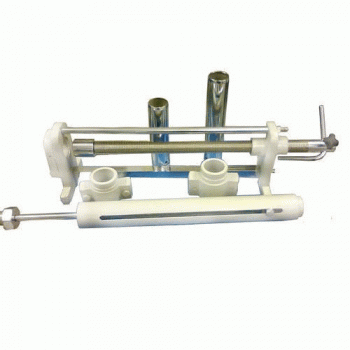

Sample Extractor for 38mm dia specimens for extracting soil core specimens of 38mm dia from sampling tube or from larger size samplers. It can be used in the field also, for taking out samples.

Soil Trimmer (Hand Operated) is used for trimming various diameter specimen for triaxial and unconfined compression tests.

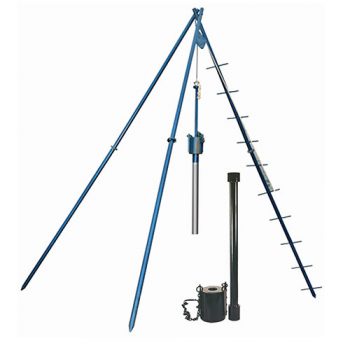

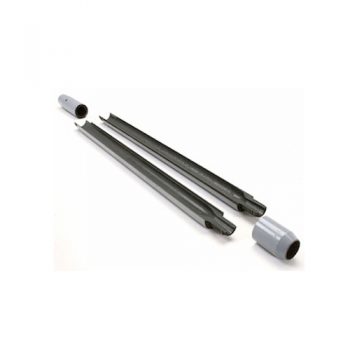

Split Spoon Sampler with Liner is used for the Standard Penetration Test. For determining penetration resistance (N Value) of soil which can be related to unconfined Compressive strength, Penetration resistance

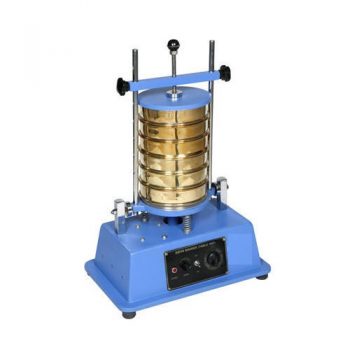

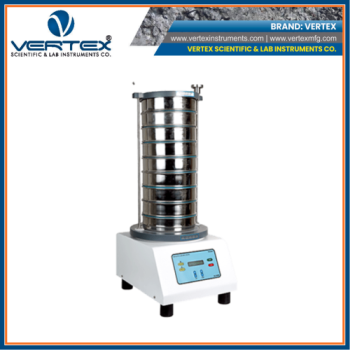

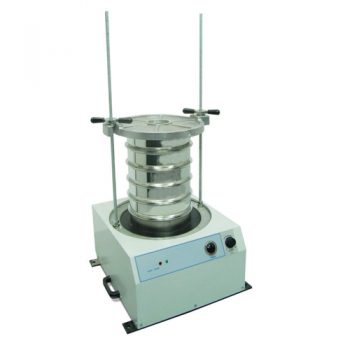

Sieve Shaker with Frequency & Time Adjustment has been specially designed to operate with heavy samples without loss of performance. It is equipped with a dynamic power source that ensures the right vibration
