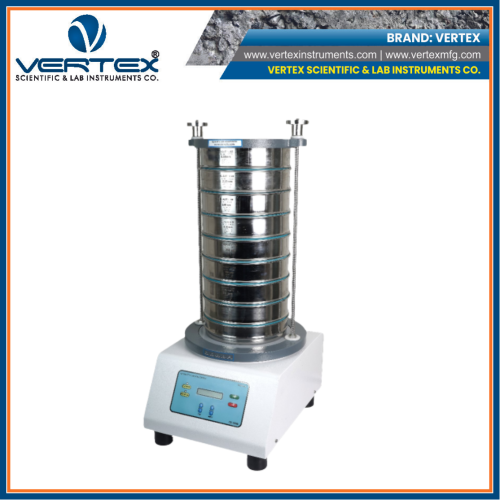

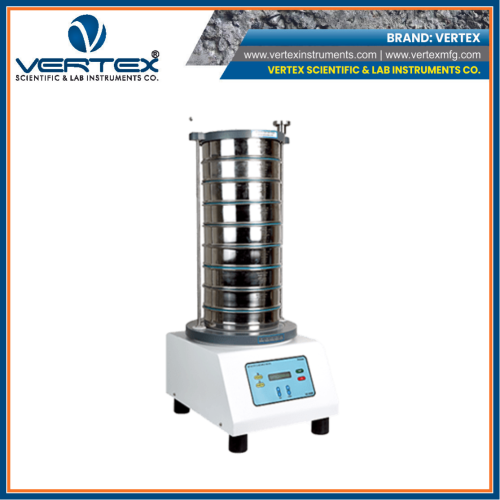

ELECTROMAGNETIC SIEVE SHAKER VERTEX-S227

short info

This series of sieve shakers can be used in research & development, quality control of raw materials, interim and finished products, or production monitoring. Sharp fractions can be obtained even with a short sieving cycle. When controlled amplitude is necessary in sampling, the AS 200 Digit cA model is recommended because it provides the ability to control the amplitude and a digital display of the vibration height and time and the interval of operation.

Model

VERTEX-S227

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Applications:
cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, etc.
Product Advantages:
  • NEW Controlled amplitude
  • Suitable for dry and wet sieving
  • Excellent separation efficiency even with short sieving times
  • Efficient electromagnetic drive
  • 3-D throwing motion, which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
  • Maintenance-free
  • Sieve stack up to 510 mm height
  • Free adjustment of all process parameters (time, amplitude)
  • Interval operation (Fix 10 s)
  • Digital display of vibration height and time
  • Easy operation, ergonomic design


Related Searches

SPECIFICATIONS

Applications Separation, fractioning, particle size determination
Field of applications agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / meta
Feed Material Powders, bulk materials, suspensions
Measuring Range 20 µm – 25 mm
Sieving Motion Throwing motion with angular momentum
Max Batch / Feed capacity 3 kg
Max no of fractions 9 / 17
Max mass of sieve stack 4 kg
Amplitude Digital, 0.2 – 3.0 mm
Controlled amplitude Yes
Time Display Digital, 1 – 99 min
Interval operation 10 Sec
Storable SOPS 1
Suitable for dry sieving Yes
Suitable for wet sieving Yes
Suitable sieve diameters 100 mm / 150 mm / 200 mm / 203 mm (8″)
Max height of sieve stack 510 mm
Clamping device Standard comfort each for “Wet” and “Dry” sieving
Protection code IP 54 / IP 20
Electric supply voltage different voltages
Power connection 1-phase
Dimensions (W x H x D) 417 x 212 x 384 mm
Net Weight ~ 35 kg

FEATURES

Applications:
cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, etc.
Product Advantages:
  • NEW Controlled amplitude
  • Suitable for dry and wet sieving
  • Excellent separation efficiency even with short sieving times
  • Efficient electromagnetic drive
  • 3-D throwing motion, which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
  • Maintenance-free
  • Sieve stack up to 510 mm height
  • Free adjustment of all process parameters (time, amplitude)
  • Interval operation (Fix 10 s)
  • Digital display of vibration height and time
  • Easy operation, ergonomic design
