Triaxial Cell 38mm & 50mm Dia Soil Specimen VSLIC-S252

short info

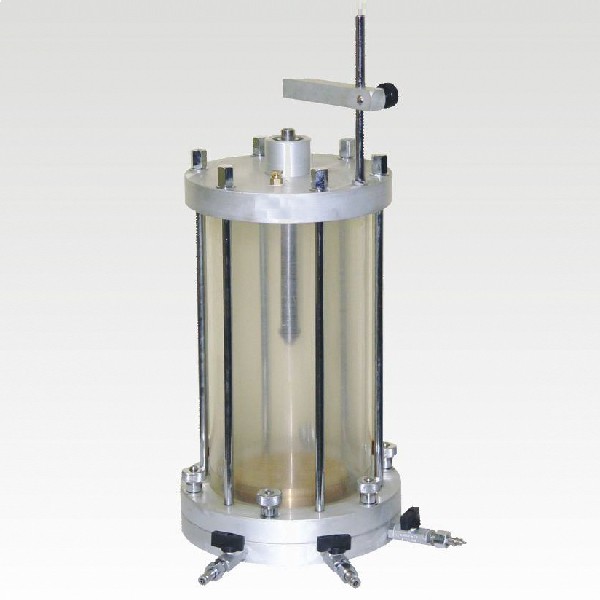

The complete range of VERTEX Triaxial Cells have their top and base assemblies machined from dur-aluminum or non corrosive alloy. The upper assembly, with a seamless acrylic tube, is clamped to the base by quick action studs.

For testing of cylindrical specimens of 38mm, 50mm, 75mm, and 100mm diameter with corresponding length to diameter ratio 1:2 as per IS:2720 part XII.

Standard

IS-2720 Part-XII.

Model

VSLIC-S252

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

(Stationary Bushing) for 38mm and 50mm dia. Specimens.

Pressure-tight Chamber: The cell is made of high-quality, corrosion-resistant material to maintain a sealed, pressure-tight environment. It can withstand the maximum confining pressures required for different types of soils.

Membrane and O-ring Seals: A rubber membrane encases the soil sample to prevent water entry, with O-ring seals at both ends to prevent fluid leakage.

Piston for Axial Load: The triaxial cell has a piston (loading ram) that transfers the axial load to the sample. This piston is carefully aligned and frictionless to avoid additional forces on the specimen.

Valves for Saturation and Drainage: It has ports for drainage and saturation, allowing water or air to be added or removed as needed for different test configurations (e.g., consolidated-drained or consolidated-undrained tests).

Supplied complete with :

  1. Loading pad made of Perspex for 38mm & 50mm Dia. Specimens.
  2. Pair of plain discs made of Perspex for 38mm & 50mm Dia. X 6mm thick.
  3. Pair of porous stone 38mm & 50mm Dia. X 6mm thick.
  4. Split sand former for 38mm & 50mm Dia. Specimen.
  5. Sheath stretcher for 38mm & 50mm Dia. Specimen.
  6. One dozen rubber sheaths for 38mm & 50mm Dia. Samples.
  7. For synthetic rubber ‘O’ rings for 38mm & 50mm Dia. Specimen.
  8. One Plastic drainage tube.

Also available as per ASTM D4767, ASTM D2850,BS 1377-7 and EN ISO 17892-8/9
