short info

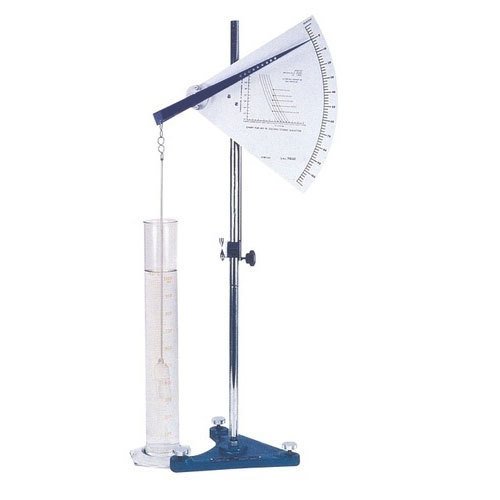

The Plummet Balance consists of a vertical rod mounted on a heavy base with leveling screws.

Standard

IS:2720 (Part4)

Model

VSLIC-S174

Origin

Indian

Make/ OEM

VERTEX

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

A lightweight pointer with pointed steel pivots, turning in jeweled bearings moves over a scale graduated in percentage units 0-100 in 2% divisions. The pointer is provided with a hook for the hanging plummet. The balance moves up and down over the vertical rod with the help of rack and pinion arrangement. A chart showing the relationship between K and Temp. of suspension of soils of varying specific gravity from 2.4 to 2.8 to help solve Stoke’s equation is provided.

Supplied complete with one perspex Plummet, one measuring jar, one rider weight for zero adjustments, and one rider weight for adjusting the pointer to 100%.



SPECIFICATIONS

FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew

REVIEWNew

\"Excellent machine! Accurate readings and very sturdy build. The installation team was professional and the after-sales support has been great. Highly recommend for any lab or industrial use.\"

⭐⭐⭐⭐

K. Kaliputi

With the highly efficient and accurate Servo Universal Testing Machine by Vertex, Now I can test the TMT Bar great accuracy. With the help of this instrument,

⭐⭐⭐⭐⭐

Amjad Ali

The automatic blain air of flowing sample has an amazing accuracy and is simply easy to use. Our team of operators have been using it for more than 7 months now and have submitted zero complaints.

⭐⭐⭐⭐

Faruq Ali

I recently purchased a Servo Compression Automatic Compressive Machine 3000kN from Vertex and I couldn’t be more pleased. The instrument is of high-quality and helps to accurately measure the strain distribution in the preforms. It is easy to use and produces reliable test results.

⭐⭐⭐⭐⭐

Ritesh

×
