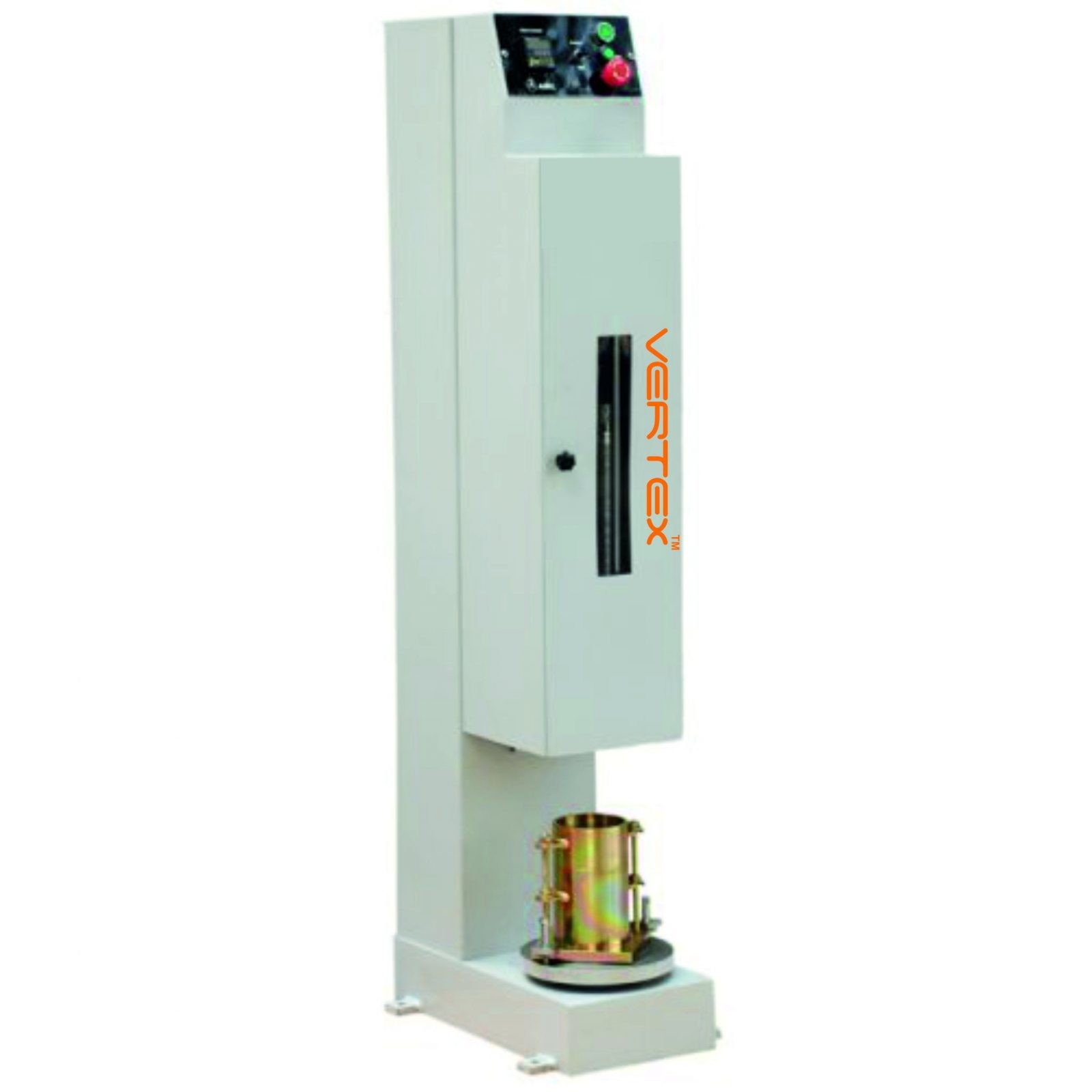

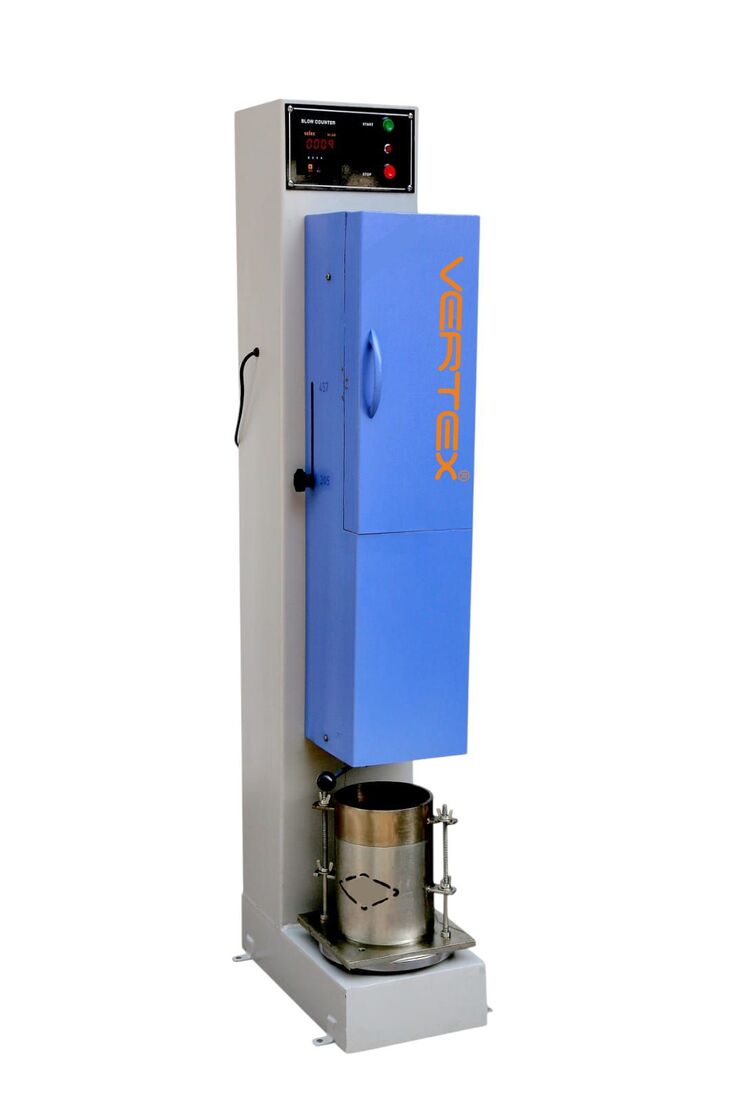

Automatic Soil Compactor (ASTM D558) VSLIC-S107

short info

Automatic compactors are essential in geotechnical engineering for conducting Proctor compaction tests, which determine the optimal moisture content and maximum dry density of soils.
These devices ensure uniform and repeatable compaction, reducing manual effort and enhancing test accuracy. With Digital Automatic Blow Counter and Controller.

Standard

IS:2720 (Part 7 and 8), ASTM D558, D559, D560, D698, D1557; AASHTO T99, T134, T135, T136, T180

Model

VSLIC-S107

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Objective:

The time and effort required to prepare specimens for compaction studies and other test methods can often be costly and time consuming. The Vertex Compactor automatically compacts soil specimens, thereby eliminating the laborious hand compaction method. The height and weight of the hammer is adjustable to suit test requirements.

Salient Features:

  • With easy and simple (manual) height adjuster and digital counter
  • Pre-set blow pattern ensures even compaction
  • Solid state controls for reliability and ease of maintenance
  • Automatic counter reset after completion of blow pattern
  • An automatic blow pattern ensures optimum compaction for each layer of soil.
  • The hammer itself travels across the mould and the table rotates the mould in equal steps on a base that is extremely stable.
  • Hammer, Circular faced, 2.0″ (50.8 mm) diameter – foot adjustable to either 2.6 kg or 4.89 kg weight.
  • Drop Adjustable to either 310 mm or 450 mm
  • Controls Digital counter system, selector switch for either standard proctor test or modified proctor/CBR testing.
  • Supplied without moulds.
  • The Moulds are offered at extra cost and are essential accessory. The Moulds have special design and you existing mould will not fit in this Instrument.
    1. As per IS 2720 ( Part 7 & 8)
    2. Overall Dimensions : 660 X 520 X 1400 (L X W X D) mm
    3. Weight (Approx.) : 125 Kg

    The Instrument can be modified to make it suitable as per ASTM D698/ ASTM D1557 / AASHTO T99 / AASHTO T180 / BS 1377-4/ EN 13286-2


Related Searches

SPECIFICATIONS

Technical Specifications:

  • With easy and simple (manual) height adjuster and digital counter
  • Pre-set blow pattern ensures even compaction
  • Solid state controls for reliability and ease of maintenance
  • Automatic counter reset after completion of blow pattern
  • An automatic blow pattern ensures optimum compaction for each layer of soil.
  • The hammer itself travels across the mold and the table rotates the mold in equal steps on a base that is extremely stable.
  • Hammer, Circular faced, 2.0″ (50.8 mm) diameter – foot adjustable to either 2.6 kg or 4.89 kg weight.
  • Drop Adjustable to either 310 mm or 450 mm
  • Controls Digital counter system, selector switch for either standard proctor test or modified proctor/CBR testing.
  • Supplied without moulds.
  • The Moulds are offered at extra cost and are essential accessory. The Moulds have special design and you existing mould will not fit in this Instrument.
    1. As per IS 2720 ( Part 7 & 8)
    2. Overall Dimensions : 660 X 520 X 1400 (L X W X D) mm
    3. Weight (Approx.) : 125 Kg

FEATURES

Features:

  • With easy and simple (manual) height adjuster and digital counter
  • Pre-set blow pattern ensures even compaction
  • Solid state controls for reliability and ease of maintenance
  • Automatic counter reset after completion of blow pattern
  • An automatic blow pattern ensures optimum compaction for each layer of soil.
  • The hammer itself travels across the mold and the table rotates the mold in equal steps on a base that is extremely stable.
  • Hammer, Circular faced, 2.0″ (50.8 mm) diameter – foot adjustable to either 2.6 kg or 4.89 kg weight.
  • Drop Adjustable to either 310 mm or 450 mm
  • Controls Digital counter system, selector switch for either standard proctor test or modified proctor/CBR testing.
  • Supplied without moulds.
