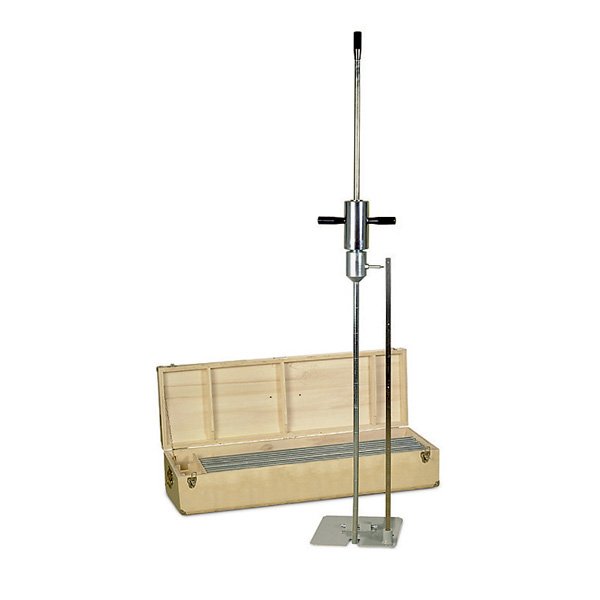

Dynamic Cone Penetrometer Test (DCPT) VSLIC-S137
short info
The Dynamic Cone Penetrometer Test- DCPT is used for the rapid measurement of structural properties of existing road pavements constructed with non-binding materials on site.
short info
The Dynamic Cone Penetrometer Test- DCPT is used for the rapid measurement of structural properties of existing road pavements constructed with non-binding materials on site.
Compliance with ASTM D6951, IRC:SP:72
The Dynamic Cone Penetration Test provides a measure of a material’s in-situ resistance to penetration. The test is performed by driving a metal cone into the ground by repeated striking it with a 17.6 lb (8 Kg) weight dropped from a distance of 2.26 feet (575 mm). The penetration of the cone is measured after each blow and is recorded to provide a continuous measure of shearing resistance up to 5 feet below the ground surface. Test results can be correlated to California Bearing Ratios, in-situ density, resilient modulus, and bearing capacity.
Features:
Equipment detail:
The 8 kg free fall hammer is lifted and dropped through a height of 575mm. The distance of penetration of the cone tip is then recorded and the cycle repeated. Continuous measurements can be made down to a depth of approximately 850mm or when extension shafts are fitted to a maximum recommended depth of 2 meters. Where sub-pavement layers have different strengths, the boundaries can be identified and the thickness determined.
The equipment comprises of the following parts and accessories:
Compliance with ASTM D6951, IRC:SP:72
The Dynamic Cone Penetration Test provides a measure of a material’s in-situ resistance to penetration. The test is performed by driving a metal cone into the ground by repeated striking it with a 17.6 lb (8 Kg) weight dropped from a distance of 2.26 feet (575 mm). The penetration of the cone is measured after each blow and is recorded to provide a continuous measure of shearing resistance up to 5 feet below the ground surface. Test results can be correlated to California Bearing Ratios, in-situ density, resilient modulus, and bearing capacity.
Features:
Equipment detail:
The 8 kg free fall hammer is lifted and dropped through a height of 575mm. The distance of penetration of the cone tip is then recorded and the cycle repeated. Continuous measurements can be made down to a depth of approximately 850mm or when extension shafts are fitted to a maximum recommended depth of 2 meters. Where sub-pavement layers have different strengths, the boundaries can be identified and the thickness determined.
The equipment comprises of the following parts and accessories:
Compliance with ASTM D6951, IRC:SP:72
The Dynamic Cone Penetration Test provides a measure of a material’s in-situ resistance to penetration. The test is performed by driving a metal cone into the ground by repeated striking it with a 17.6 lb (8 Kg) weight dropped from a distance of 2.26 feet (575 mm). The penetration of the cone is measured after each blow and is recorded to provide a continuous measure of shearing resistance up to 5 feet below the ground surface. Test results can be correlated to California Bearing Ratios, in-situ density, resilient modulus, and bearing capacity.
Features:
Equipment detail:
The 8 kg free fall hammer is lifted and dropped through a height of 575mm. The distance of penetration of the cone tip is then recorded and the cycle repeated. Continuous measurements can be made down to a depth of approximately 850mm or when extension shafts are fitted to a maximum recommended depth of 2 meters. Where sub-pavement layers have different strengths, the boundaries can be identified and the thickness determined.
The equipment comprises of the following parts and accessories:
