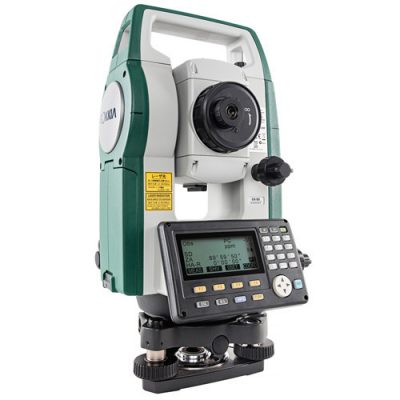

sokkia-cx-55-total-station-500x500

quick info

[xyz-ips snippet="IS-Standard"]

The Sokkia CX-55 Total Station is a builder class instrument with an IP66 waterproof casing and reflectorless EDM technology. In addition, the Sokkia CX-50 series total station features other key specifications such as dual axis compensation, 15-hour battery life and on-board survey software capable of storing 5,000 points. These features combined with the affordable price, makes it the perfect entry-level solution for site layout or as-built survey.

[wpdm_package id='7910']
[vcex_divider color=”#eaeaea”]

In addition, the Sokkia CX-50 series total station features other key specifications such as dual-axis compensation, 15-hour battery life and on-board survey software capable of storing 5,000 points. These features combined with the affordable price makes it the perfect entry-level solution for site layout or as-built survey.

Key Features of Sokkia CX 55 Reflectorless Total Station

Advanced Angle Measurement System

The Sokkia CX-55 Total Station features Sokkia’s orginal absolute encoders which provide long-term reliablity in any job site condition. The dual-axis compensator ensures stable measurements even when setup on uneven terrain.
Sokkia’s traditional motion clamp and tangent screw are employed to ensure stable angle measurement.
Perfect for entry-level site layout and surveying, the Sokkia CX 55 5-Second Reflectorless Total Station is a highly accurate and fast measuring device. It calculates angles and distances up to 350 meters away in reflectorless mode and up to 4000 meters when using a single prism. This surveying equipment also features dual-axis compensation for stable measurements on uneven terrain.
The Sokkia Total Station CX-55 has a single, backlit graphic display and 25 alphanumeric keys for easy controls and setup. It also has a built-in coaxial EDM beam and laser pointer for fast and accurate aiming, which ensures accuracy even with reflective sheets.

With 5,000 points of internal memory, the Sokkia CX-50 series Electronic Total Station can store all data in the field. It also features a rugged, IP66 water-resistant design to survive adverse weather conditions on the Jobsite. This reflectorless total station has a 15-hour battery life and on-board survey software.

RED-tech Technology Reflectorless EDM

  • 5″ Accuracy
  • Fast distance measurement of 0.9s.
  • Sokkia’s traditional pinpoint precision in reflector-less distance measurement.
  • Reflectorless operation from 30cm to 350m.
  • Coaxial EDM beam and laser-pointer provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.

Waterproof, Rugged, and Operator Friendly

  • IP66 dustproof I waterproof rating.
  • Rugged metal chassis and heavy-duty handle.
  • Standard usage temperature range -20° to 60°C.
ModelSokkia CX55 Total Station
Telescope
Magnification / Resolving Power30x / 2.5″
Length171mm
Objective aperture45mm (48mm for EDM)
ImageErect
Field of View1°30′ (26m / 1,000m)
Minimum focus1.3m
Reticle illumination5 brightness levels
Angle Measurement
Display Resolution1″/5″ (0.0002 / 0.0001gon, 0.0005 / 0.02mil)
Accuracy (ISO 17123-3:20015″
Dual Axis Compensator / Collimation CompensationWorking range ±6′ (±111 mgon)
Collimation compensation available
Distance Measurement
Laser output (Reflectorless mode)Class 3R / Prism / sheet mode: class 1
Range reflectorless mode0.3 to 350m
Range prism modeupto 4,000m
Measuring Time
Fine Measurement Mode0.9 sec.(Intial 1.7 sec.)
Rapid Measurement Mode0.7 sec.(Intial 1.4 sec.)
Tracking Measurement Mode0.3 sec.(Intial 1.4 sec.)
Interface and Data Management
Display / KeyboardGraphic LCD, 192 x 80 dots, backlight, contrast adjustment / alphanumeric keyboard / 25 keys with backlight
Control panel locationSingle side
Data storage (internal memoryApprox. 5,000 points
InterfaceRS232C
General
Laser pointerCoaxial red laser using EDM beam
Levels Graphic6′ (Inner Circle)
Circular Level10’/2mm
OpticalMagnification: 3x
Minimum focus: 0.3m from tribrach bottom
Dust and water protectionIP66 (IEC 60529:2001)
Operatig temperature-20°C to 60°C
Size with handle (w x d x h mm)177 x 174 x 348
Weight with batter and tribrachApprox. 5.4kg
Power Supply
Battery (BDC46C) Detachable batteryLi-ion rechargeable battery
Operating time (20°C) BDC46CApprox. 15 hours
