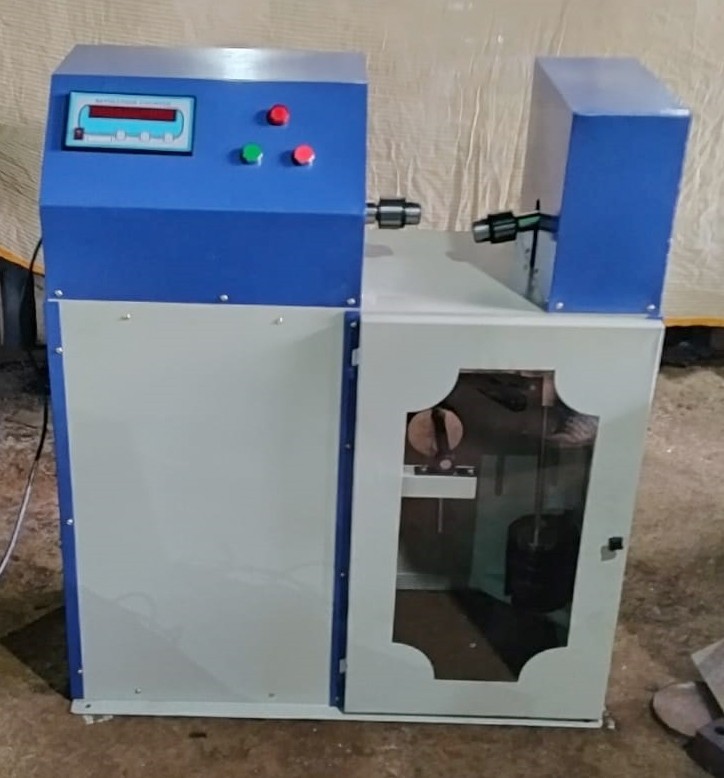

Premium Digital Fatigue Testing Machines 200kg cm VSLIC-SM111

short info

Premium Digital Fatigue Testing Machine is light, compact and simple design used to test the fatigue strength of materials and draw S-N diagram used for research institutes, laboratories, material manufacturers and various industries.

Standard

IS 5075-1969

Model

VSLIC-SM111

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

About Product

  • This machine is light, compact and simple design used to test the fatigue strength of materials and draw S-N  diagram used for research institutes, laboratories, material manufacturers and various industries.
  • Table model, no need of foundation.
  • This is a rotating beam type machine in which load is applied in reversed bending fashion.
  • The standard 8 mm dia specimen is held in special holders at its ends and loaded such that it experiences a uniform bending moment.
  • The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibers of the specimen  is produced during each revolution.
  • The bending moment is applied with a lever system and can be easily changed by moving a weight over the lever.
  • Total number of revolutions at which the specimen fails are recorded by a Digital counter.
  • An interlocking system puts off the motor at specimen failure.
  • Machine meets requirements of IS 5075-1969.


Related Searches

SPECIFICATIONS

Technical Specification

Sr.No. Specification VSLIC-C-100 Nm VSLIC-V-200 Nm
 1 Maximum bending moment Kg cm 200
 2 Bending moment adjustable Kg cm 25 – 200
3 Ranges I, II Kg cm
Kg cm		 25 – 125
125 – 200
4 Gripping dia of specimen mm 12
5 Testing dia of specimen mm 8
6 Rotating speed rpm 4200
7 Accuracy of applied bending moment % ± 1%
8 Digital counter No.of digits – 8
9 Power required HP 0.5
10 Main supply 3 Phase, 440 Volts, 50 Hz, A.C
11 Overall size (approx) mm L 1000 x W 500 x H 600
12 Weight (approx) kg 120
Machine with maximum bending moment upto 400 Kg cm can be offered on request.

FEATURES

Technical Specification

Sr.No. Specification VSLIC-C-100 Nm VSLIC-V-200 Nm
 1 Maximum bending moment Kg cm 200
 2 Bending moment adjustable Kg cm 25 – 200
3 Ranges I, II Kg cm
Kg cm		 25 – 125
125 – 200
4 Gripping dia of specimen mm 12
5 Testing dia of specimen mm 8
6 Rotating speed rpm 4200
7 Accuracy of applied bending moment % ± 1%
8 Digital counter No.of digits – 8
9 Power required HP 0.5
10 Main supply 3 Phase, 440 Volts, 50 Hz, A.C
11 Overall size (approx) mm L 1000 x W 500 x H 600
12 Weight (approx) kg 120
Machine with maximum bending moment upto 400 Kg cm can be offered on request.
