Vertex ATS-120R Total Station is the most economical model, measures without prism up to 600m, configured with advanced dual axis compensator for automatic error elimination and automatic compensation of accuracy, diversified data transfer options such as card SD, USB pen drive, data cable interface.

This high precision total station is widely used in surveying, topography and cartography, engineering construction, is popular in the market of measuring instruments for its high precision, good quality, competitive price.

Standard

2″ Accuracy

Model

VS-120R

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

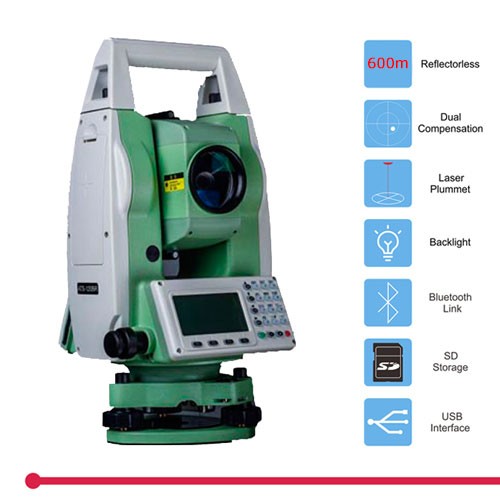

Vertex ATS-120R Total Station is the most economical model, measures without prism up to 600m, configured with advanced dual axis compensator for automatic error elimination and automatic compensation of accuracy, diversified data transfer options such as card SD, USB pen drive, data cable interface.

This high precision total station is widely used in surveying, topography and cartography, engineering construction, is popular in the market of measuring instruments for its high precision, good quality, competitive price.

  • 2″ Accuracy
  • Construction and Survey Application Software On Board
  • Dual Side Display Control Panel.
  • Reflectorless operation upto 600m.
  • IP55 – Strong Environmental Specification against Tough Sites
  • Integrated Bluetooth® technology
  • Up to 16 hours of battery life
  • Key buttons are illuminated to minimze mistakes.
  • USB Pen Drive & SD Memory Card Support
  • Internal memory has 20,000 points to record.

SPECIFICATIONS

Sunway Total Station ATS120R Technical Specifications:

ModelATS-120R Sunway Total Station
Angle Measurement
Measurement MethodAbsolute Encoding
Minimum Readout1″
Accuracy2″
Telescope
Magnification30X
Field of View1°30′
Minimum focusing Distance1.3m
Reticle illumination5 brightness levels
Compensator
SystemLiquid tilt sensor/Dual-axis
Working Range±3′
Accuracy1″
Distance Measurement (with Reflector)
Single Prism
(Under general/good conditions)
5000m
Reflective Sheet800m
Accuracy2mm+2ppm
Measuring Time (Fine/Tracking)1s/0.5s
Distance Measurement (Reflectorless)
Reflectorless Range
(Calculated by Kodak Gray Card white side with 90% reflective)
600m
Accuracy3mm+2ppm
Measuring Time1.5s
Communication
Internal Data MemoryApprox. 20,000 points
External Data MemoryPlug-in memory device: USB flash memory (max. 8GB)
Plug-in memory device: SD memory card (max. 8GB)
InterfaceSerial RS-232, Mini-B
Data FormatASCII
Operation
SystemReal-time Operating System
DisplayHigh resolution back-light black and white display with contrast adjustment
Graphics 192×96 pixels
Control Panel2 Sides Alphanumeric backlight crystal keyboard
Laser Plummet
TypeLaser point, 4 brightness levels adjustment
Centering Accuracy1mm at 1.5m instrument height
Environmental
Operating temperature-4ºF to +122ºF (-20ºC to +50ºC)
Storage temperature-40ºF to +158ºF (-40ºC to +70ºC)
Temperature & PressureManual Input
Dust & Water Proof (IEC60529 Standard)IP55
Power Supply
Battery TypeLi-ion rechargeable battery
Voltage/CapacityZBA400: 7.4V(DC)/3000mAh
Operating Time with ZBA400Optimal 16 Hours
(Continuous angle measurement every 30 seconds)/10 Hours Typical
Measuring TimesApprox 12000 times

FEATURES

Key Features Vertex VS-120R Series Total Station

Vertex VS-120R series Total Station is used in engineering. It have no prism measurement function, absolute encoder angle measurement technology, angle measurement accuracy 2 seconds, no prism measurement accuracy 3mm+ 2ppm and a breakthrough in the use of the STM32 architecture. Vertex VS-120R series Total Station configures a variety of communication interfaces and smart calibration software implements the diversity of data transmission selection and real-time detection function.

Powerful and Fast EDM Capabillity
Vertex VS-120R series Total Station’s no prism measurement range up to 1000 meters. No prism measurement accuracy 3mm+2ppm. Accurate measurement 0.8S, Track measurement 0.3S.

STM32 Architecture
The STM32 MCU based on ARM CortexTM-M processor enables the total station has extra high processing speed and low-power consumption.

Intelligent Calibration Software
Accessible for real-time diagnosis to ensure trouble-free operation. The software can determine 90 percent of the Problem.

Absolute Encoder Angle Measurement
1023 pairs of absolutely coded disc. All Vertex VS-120R Series angle measurement accuracy is two seconds. Starting without initialization.The data will save automatically when the power failure.

Stable Dual-axis Compensation
Compensation range 3′. Operation can be visualized and High accuracy of angle measurement.

Rich Communication and Transmission
With RS232C, SD, USB and MiniUSB communication interface. Using Bluetooth for data transmission, make data transmission more convenient.

Reliable Large Volume Memory
Internal memory has 20,000 points to record.
USB memory can be used up to 8GB.
