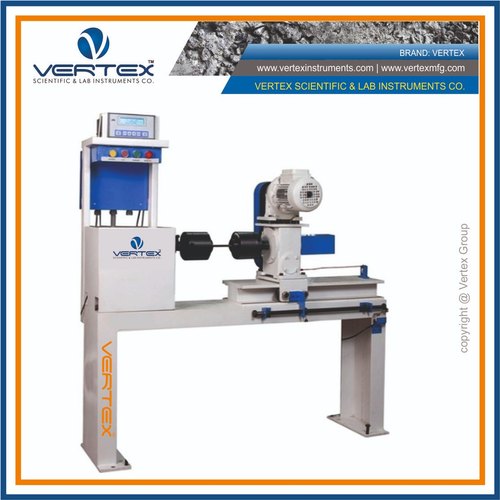

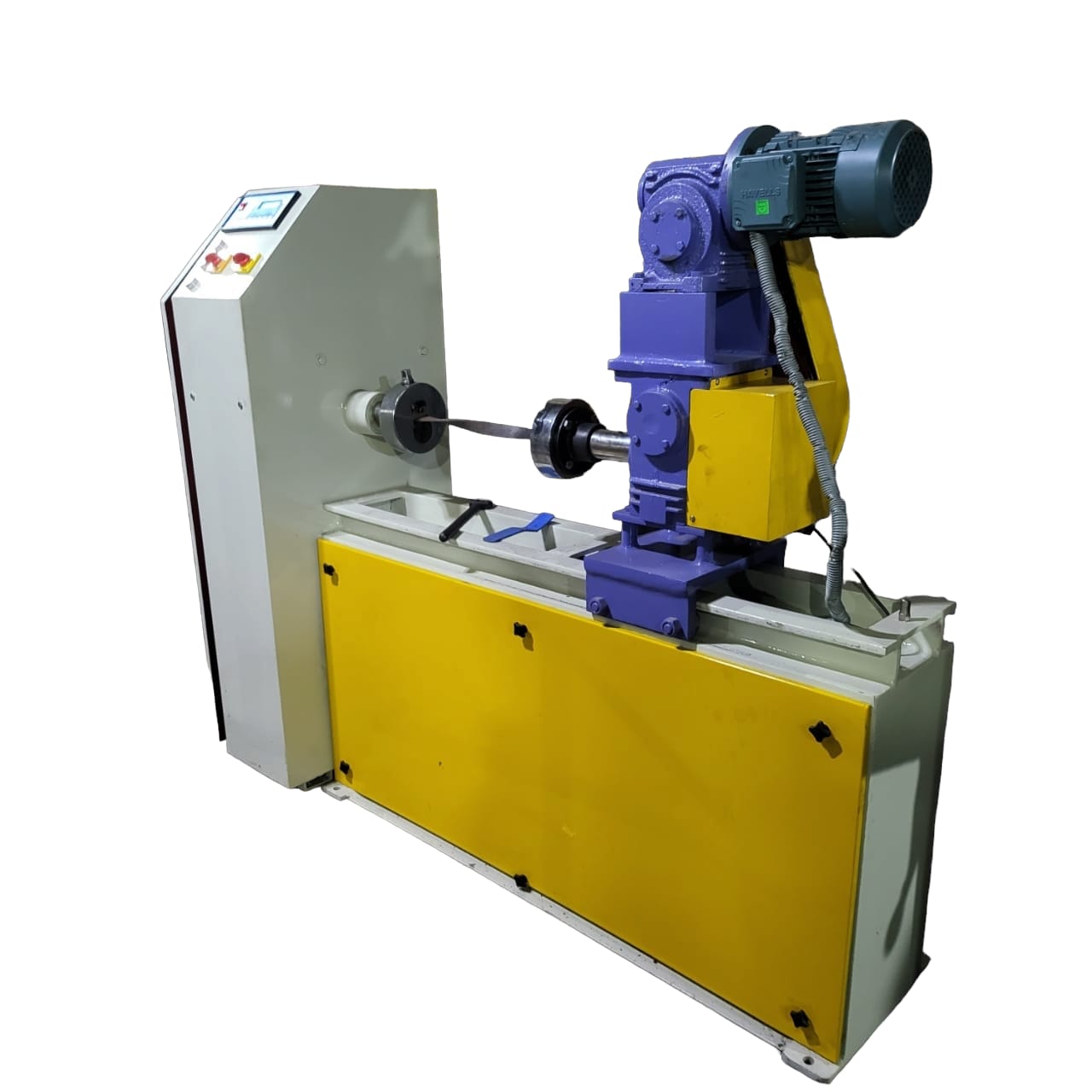

Electronic Microprocessor Based Torsion Testing Machine-100KGF VSLIC-SM106

short info

Capacity: 100KGF

  • Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials. Torque measurement is by torque transducer system.
  • Torque can be applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist.
  • The accuracy of torque indication is + 1% of the true torque.

Standard

As per Indian Standard

Model

VSLIC-SM106

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Technical Data

Type Electronic Torsion Testing Machine
Max. Torque Capacity(Nm) 100
Grips for Specimens (mm) 4-8
Motor (400-440 V, 3 Phase & 50 Hz 0.5 horsepower
No. of div. on dial 500
Clearance between Grips(mm) 0-420
The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following features 7 seg digital display of load displacement/extension
Torsion Speed (RPM) 1.5
Torque Ranges (Nm) 100
Accuracy of torque indication +/-1 percentage
Grips for flat specimens width( mm) 2-8

The electronic control panel is built using microprocessor which incorporates state of the art technology with following features –

  • Front panel membrane type key board for test setup.
  • 7 seg digital display of load displacement/extension.
  • Printer port interface.
  • Serial port for communication with PC.
  • Storage of important parameters such as peak load & maximum displacement after test.
  • Preload selection to take care of initial slippage.
  • Optional real time graph & PC software.
