quick info

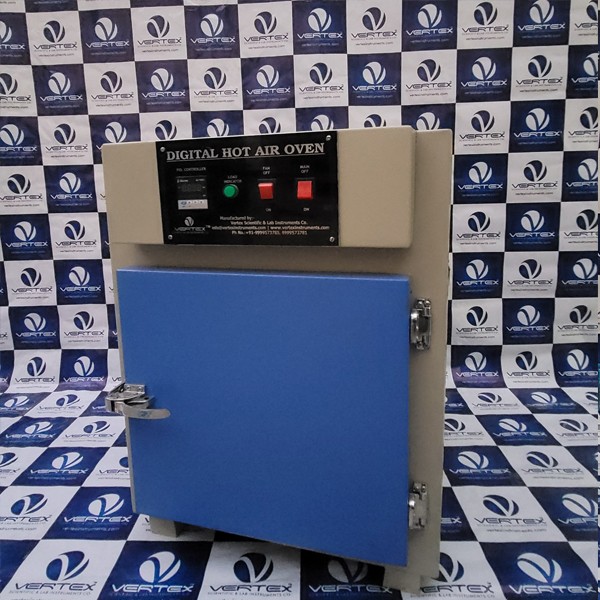

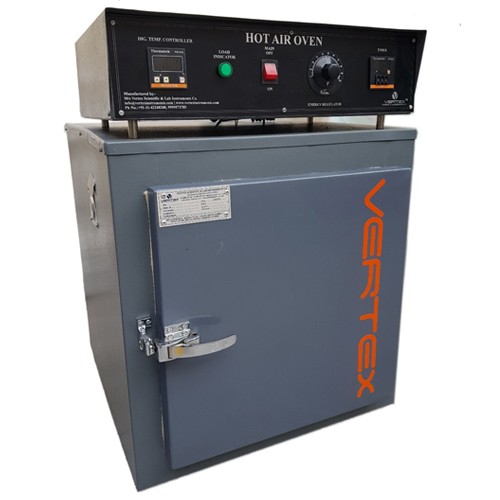

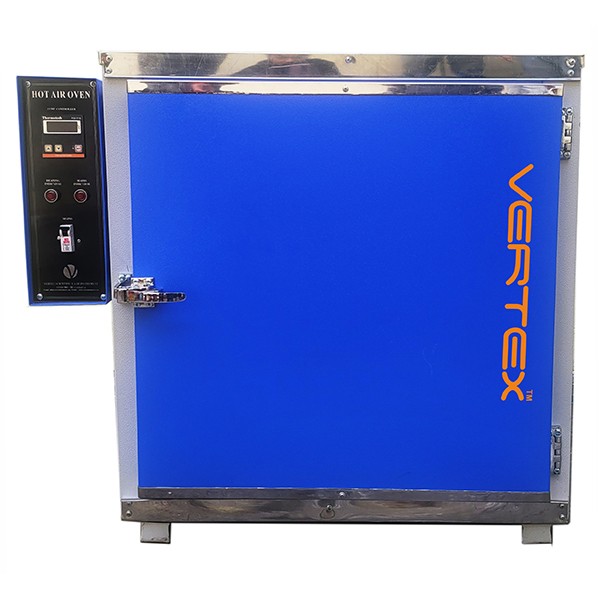

VERTEX Hot Air Oven VSLIC-149 Series is a unique test cabinet designed to detect the change in the physical characteristics of the material and to ascertain the actual working life of testing device at elevated temperature. Works on Forced air circulation, thermal convection principle, suitable for Tests like heat deformation, compression set, heat resistance required in rubber and plastic industries.

Ref. Standard

IS : 2720 (PART 2)

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-E111

Brochure

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Technical Specifications:

  • Inside Body – Stainless Steel ( SS 304 )
  • Out Side Body – MS Powder coated with stove enamel paint. (SS body also
  • available)
  • Number of Selves – 2 Adjustable Perforated Selves.
  • Body Structure – Double Walled structure filled with glass wool insulation
  • Number of Heaters – 2 x 1000 Watts
  • Heater Quality – High Quality Chrome Heater insulated with ceramic beads
  • Air Circulation – By Air Circulating Fan to ensure even temperature distribution.
  • Ventilation – Ventilation port with adjustable Opening.
  • Temperature Control – By Digital Temperature indicator and Controller
  • Temperature Display – Digital Temp. display
  • Range of Temperature – Ambient to 250ºC
  • Accuracy – 0.10C
  • Least Count – 1.0C
  • Power – 220 Volt AC 50 Hz. Single Phase

Uses : For drying and curing of samples at particular temperature and duration To determine the effect of ageing on various physical properties of any type of material like fabric, yarn, paper, rubber, plastic, Powder and metals.

Sizes available are:

  • 12″ x 12″ x 12″ (28 Ltr.)
  • 14″ x 14″ x 14″ (45 Ltr.)
  • 18″ x 18″ x 18″ (95 Ltr.)
  • 24″ x 24″ x 24″ (224 Ltr.)

SPECIFICATIONS

Specifications

Material Aluminum, Stainless Steel
Certification CE Certified
Application Dry Heat To Sterilize
Weight 0-500kg, 1000-1500kg
Color Multi Color
Voltage 110V, 220V
Frequency 50Hz, 60Hz
Power 1-5kw
Driven Type Electric
Features Energy Saving Certified, Low Maintenance, Rust Resistance
Warranty 1yr

Specifications : Hot air oven, 2 shelves

Technical Specifications:

  • Inside Body – Stainless Steel ( SS 304 )
  • Out Side Body – MS Powder coated with stove enamel paint. (SS body also
  • available)
  • Number of Selves – 2 Adjustable Perforated Selves.
  • Body Structure – Double Walled structure filled with glass wool insulation
  • Number of Heaters – 2 x 1000 Watts
  • Heater Quality – High Quality Chrome Heater insulated with ceramic beads
  • Air Circulation – By Air Circulating Fan to ensure even temperature distribution.
  • Ventilation – Ventilation port with adjustable Opening.
  • Temperature Control – By Digital Temperature indicator and Controller
  • Temperature Display – Digital Temp. display
  • Range of Temperature – Ambient to 250ºC
  • Accuracy – 0.10C
  • Least Count – 1.0C
  • Power – 220 Volt AC 50 Hz. Single Phase

Uses : For drying and curing of samples at particular temperature and duration To determine the effect of ageing on various physical properties of any type of material like fabric, yarn, paper, rubber, plastic, Powder and metals.

Sizes available are:

  • 12″ x 12″ x 12″ (28 Ltr.)
  • 14″ x 14″ x 14″ (45 Ltr.)
  • 18″ x 18″ x 18″ (95 Ltr.)
  • 24″ x 24″ x 24″ (224 Ltr.)

FEATURES

Hot Air Oven Feature

  • Stainless steel inner chamber and powder coated exterior
  • Double wall construction with glass observation window
  • Fiberglass insulation between inner and outer walls
  • Silicon rubber door sealing prevents heat loss
  • Forced convection system with the adjustable air vents provides excellent uniformity
  • Microprocessor PID Temperature Control with LED digital display (Make: Thermotech, Model: PID 415)
  • Simple keypad input allows easy temperature setting
  • Visual over temperature alarm indicator
  • Shelves: 3 Nos (As Per Requirement)

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
