Standard Tar Viscometer VSLIC-OP107

short info

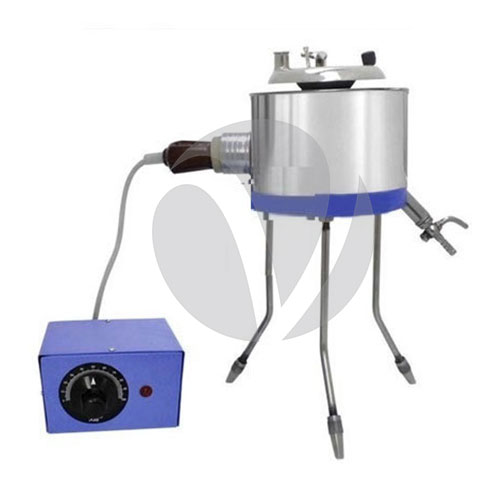

The Standard Tar viscometer consists of a chrome-plated copper bath, with a drain valve and a central tube to receive the test cup and to position the stirrer, and is mounted on a stand with leveling feet.

Standard

IS:1206, BS:2000, (Part72)

Model

VSLIC-OP107

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

IS : 1206-1958 IP 72/58

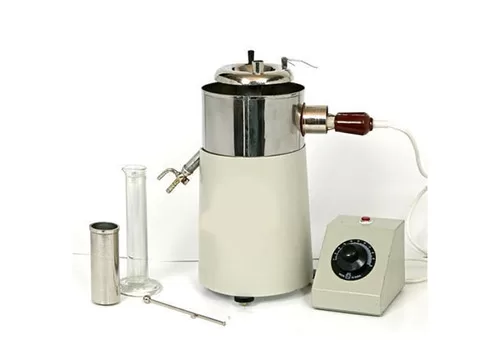

For determining the viscosity of cut back bitumen and road tar.It has a cup known as 10 mm cup. The cup is a cylindrical brass tube with a dished bottom. An orifice is provided in the centre of the base which can be closed with a ball valve. A cylindrical copper water bath 160 mm dia x 105 mm with a side heating tube is mounted on a stand with levelling feet. A stirrer with a curved shield and four vertical vanes with an insulating handle and a thermometer support is provided.

Same as VSLIC-OP107 but the gas heating element is replaced by an immersion heating element and an auto transformer for controlling the temperature is provided.

Suitable for operation on 220V, 50 Hz, single phase supply.

VSLIC-OP107/1 Cup with 4 mm Orifice.

VSLIC-OP107 Tar Viscometer Thermometers

Cat.No. Type Range
VSLIC-OP107/1 IP 8C 0° -44°C
VSLIC-OP107/2 IP 9C 37.8° – 82°C
VSLIC-OP107/3 IP 10C 76° – 122°C.


Related Searches

SPECIFICATIONS

IS : 1206-1958 IP 72/58

For determining the viscosity of cut back bitumen and road tar.It has a cup known as 10 mm cup. The cup is a cylindrical brass tube with a dished bottom. An orifice is provided in the centre of the base which can be closed with a ball valve. A cylindrical copper water bath 160 mm dia x 105 mm with a side heating tube is mounted on a stand with levelling feet. A stirrer with a curved shield and four vertical vanes with an insulating handle and a thermometer support is provided.

Same as VSLIC-OP107 but the gas heating element is replaced by an immersion heating element and an auto transformer for controlling the temperature is provided.

Suitable for operation on 220V, 50 Hz, single phase supply.

VSLIC-OP107/1 Cup with 4 mm Orifice.

VSLIC-OP107 Tar Viscometer Thermometers

Cat.No. Type Range
VSLIC-OP107/1 IP 8C 0° -44°C
VSLIC-OP107/2 IP 9C 37.8° – 82°C
VSLIC-OP107/3 IP 10C 76° – 122°C.

FEATURES

IS : 1206-1958 IP 72/58

For determining the viscosity of cut back bitumen and road tar.It has a cup known as 10 mm cup. The cup is a cylindrical brass tube with a dished bottom. An orifice is provided in the centre of the base which can be closed with a ball valve. A cylindrical copper water bath 160 mm dia x 105 mm with a side heating tube is mounted on a stand with levelling feet. A stirrer with a curved shield and four vertical vanes with an insulating handle and a thermometer support is provided.

Same as VSLIC-OP107 but the gas heating element is replaced by an immersion heating element and an auto transformer for controlling the temperature is provided.

Suitable for operation on 220V, 50 Hz, single phase supply.

VSLIC-OP107/1 Cup with 4 mm Orifice.

VSLIC-OP107 Tar Viscometer Thermometers

Cat.No. Type Range
VSLIC-OP107/1 IP 8C 0° -44°C
VSLIC-OP107/2 IP 9C 37.8° – 82°C
VSLIC-OP107/3 IP 10C 76° – 122°C.

PRODUCT VIDEO

WORKING PRINCIPALNew
