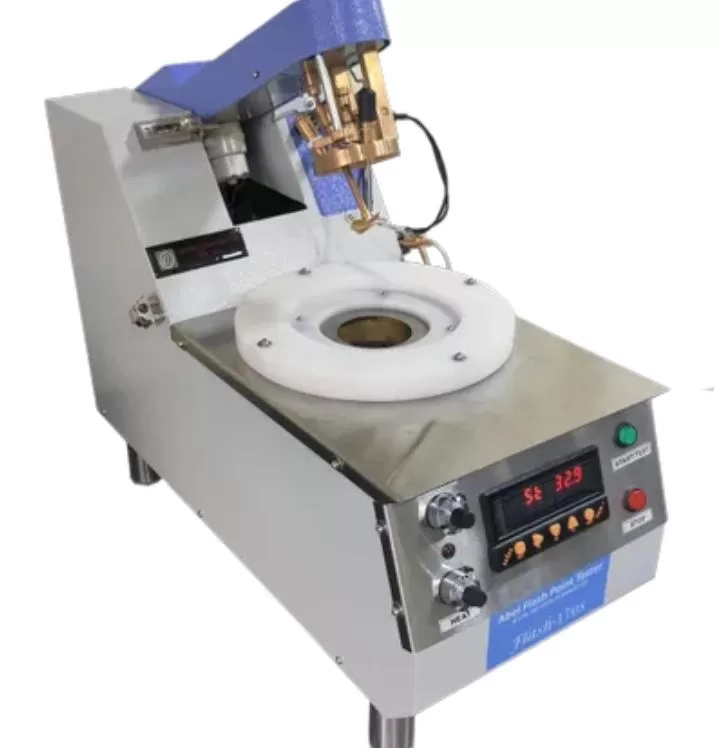

Semi Automatic Abel flash point VSLIC-OP103

short info

Used for determination of the closed cup Flash Point of Petroleum products, their mixtures, other liquids and paints having flash point between 10°C to 70°C. The Abel test is a method developed by the British chemist – Frederick Abel (1827–1902) to determine the flash point of a given sample of petroleum in order to ascertain the temperature at which it could safely be stored or used.

Standard

IP 170, IP 33, ISO 13736, IS : 1448 (P:20)

Model

VSLIC-OP103

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Applications:

Used for determination of the closed cup Flash Point of Petroleum products, their mixtures, other liquids and paints having flash point between 10°C to 70°C. The Abel test is a method developed by the British chemist – Frederick Abel (1827–1902) to determine the flash point of a given sample of petroleum in order to ascertain the temperature at which it could safely be stored or used.

Salient Features:

  • Semi automatic operation
  • Single push button for stirring & heating operation
  • Cooling is achieved by external circulating chiller
  • User can test Frequent samples within 5-10 minutes of interval
  • Electric igniter operating on 230 Volts, 50 Hz, Single Phase, AC Supply
  • Automatic Flash Detection using thermal sensor
  • Digital sample reading display with buzzer
  • Sample Temperature reading is locked and displayed at Flash Point/Result
  • Permanently fixed sample cup lid, stirrer, sample temperature sensor, flash detector with Heating & Cooling facility.
  • Sample cup is removable

Standard accessories

  • Main unit – 01 Nos
  • Electric igniter – 02 Nos
  • Sample Cup – 02 Nos
  • Gas Igniter – 01 No
  • Pilot Flame – 01 No
  • Low pressure regulator with Tubing – 01 No
  • Test certificate – 01 No
  • Instruction manual – 01 No


Related Searches

SPECIFICATIONS

Initialization

Stirrer, Igniter & Igniter mechanism checked during Initialization

Cooling

In-out ports for external circulating chiller

Heating elements

Band Heater of 300 watts ratings, @ 230 VAC

Heat rate control

Heat rate control with precise ten turn potentiometer

Temperature Range

-10°C to 70 °C

Stirring

Speed Control by Precise Potentiometer from 10 to 60 rpm

Ignition

Electric / Gas Igniter interchangeable

Electric Igniter – 04 Step brightness

Gas igniter – – Precise control for pilot flame & gas igniter

Test Mode

Auto & Manual both mode (Auto test during specified range / Manual test with single push button)

Stirring & Heating stops with electric igniter lightning, dipping and resume the Stirring & heating operation again for next temp point

If Flash detects, cooling signal gets ON for external Chiller

Lid assembly

Permanently fixed sample cup lid, Stirrer, sample temperature sensor, Flash Detector and Igniter for easy operation

Measurement

Sample temperature

Glass PT 100 , Class A, with digital indication / Thermometer interchangeable

Flash detection

Ionization Ring and Buzzer (Sample temperature reading gets lock with Flash Point heading)

Error LL if flash at first test and Error HH if flash out of range

Housing dimensions

Dimension Main Unit

220 mm x 500 mm x 320 mm (W x D x H)

Weight Main Unit

17 Kgs

Power Supply

230 Volts, 60 hz, Single Phase, AC Supply

FEATURES

Compliance Standards:

IP 170, IP 33, ISO 13736, IS : 1448 (P:20)

Applications:

Used for determination of the closed cup Flash Point of Petroleum products, their mixtures, other liquids and paints having flash point between 10°C to 70°C. The Abel test is a method developed by the British chemist – Frederick Abel (1827–1902) to determine the flash point of a given sample of petroleum in order to ascertain the temperature at which it could safely be stored or used.

Salient Features:

  • Semi automatic operation
  • Single push button for stirring & heating operation
  • Cooling is achieved by external circulating chiller
  • User can test Frequent samples within 5-10 minutes of interval
  • Electric igniter operating on 230 Volts, 50 Hz, Single Phase, AC Supply
  • Automatic Flash Detection using thermal sensor
  • Digital sample reading display with buzzer
  • Sample Temperature reading is locked and displayed at Flash Point/Result
  • Permanently fixed sample cup lid, stirrer, sample temperature sensor, flash detector with Heating & Cooling facility.
  • Sample cup is removable

Standard accessories

  • Main unit – 01 Nos
  • Electric igniter – 02 Nos
  • Sample Cup – 02 Nos
  • Gas Igniter – 01 No
  • Pilot Flame – 01 No
  • Low pressure regulator with Tubing – 01 No
  • Test certificate – 01 No
  • Instruction manual – 01 No
