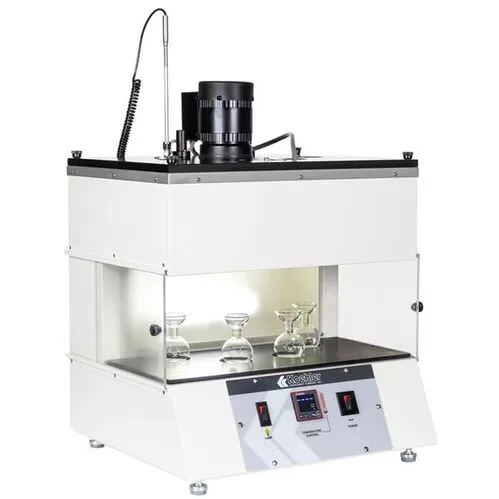

Saybolt Viscometer with Four Saybolt Tubes VSLIC-B159

short info

A Saybolt Viscometer with Four Saybolt Tubes measures the viscosity of petroleum products. It features four tubes for simultaneous testing, with results expressed in Saybolt Universal Seconds (SUS). This instrument ensures accurate viscosity measurement for quality control in the petroleum and lubricant industries. Electrically heated model complete with Four Saybolt Tubes and electrical control panel with all accessories. With 4 Nos. Saybolt Viscosity Flask but without optional accessories.

Standard

ASTM D88 and IS:3117-2019

Model

VSLIC-B159

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

A Saybolt Viscometer with Four Saybolt Tubes, as per ASTM D88 and IS:3117-2019, measures the viscosity of petroleum products. It features four tubes for simultaneous testing, with results expressed in Saybolt Universal Seconds (SUS). This instrument ensures accurate viscosity measurement for quality control in the petroleum and lubricant industries.Electrically heated model complete with Four Saybolt Tubes and electrical control panel with all accessories. With 4 Nos. Saybolt Viscosity Flask but without optional accessories.

Complies with ASTM D 88 / IS:3117-2019

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (Furol (3.150 mm) or Universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25°C and 50°C. The viscometer includes Waterbath, Motorized Stirrer, Electric Heater with Digital Temp. Controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy)

Construction Details:

  1. The apparatus consists of stainless steel bath with two sample cups
  2. The bath has a lid which contains a thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can be inserted into the cup cover to cross check the Digital controller.
  6. Four jets – Two Universal and Two Furol can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply
  8. Universal Orifice: 2 pc
  9. Furol Orific : 2 pc
  10. Thermometer Support: 4 pc
  11. Tube wrench : 1 set
  12. Saybolt Viscosity Flask, Glass, 60 ml: 4 pc
  13. Stopper : 4 pcs
  14. Operation Instruction Manual & Conformity Certificate : 1 Pc

The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (Essential accessory)
  3. Withdrawal Tube
  4. Strainer for Filtering


Related Searches

SPECIFICATIONS

A Saybolt Viscometer with Four Saybolt Tubes, as per ASTM D88 and IS:3117-2019, measures the viscosity of petroleum products. It features four tubes for simultaneous testing, with results expressed in Saybolt Universal Seconds (SUS). This instrument ensures accurate viscosity measurement for quality control in the petroleum and lubricant industries.Electrically heated model complete with Four Saybolt Tubes and electrical control panel with all accessories. With 4 Nos. Saybolt Viscosity Flask but without optional accessories.

Complies with ASTM D 88 / IS:3117-2019

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (Furol (3.150 mm) or Universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25°C and 50°C. The viscometer includes Waterbath, Motorized Stirrer, Electric Heater with Digital Temp. Controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy)

Construction Details:

  1. The apparatus consists of stainless steel bath with two sample cups
  2. The bath has a lid which contains a thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can be inserted into the cup cover to cross check the Digital controller.
  6. Four jets – Two Universal and Two Furol can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply
  8. Universal Orifice: 2 pc
  9. Furol Orific : 2 pc
  10. Thermometer Support: 4 pc
  11. Tube wrench : 1 set
  12. Saybolt Viscosity Flask, Glass, 60 ml: 4 pc
  13. Stopper : 4 pcs
  14. Operation Instruction Manual & Conformity Certificate : 1 Pc

The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (Essential accessory)
  3. Withdrawal Tube
  4. Strainer for Filtering

FEATURES

A Saybolt Viscometer with Four Saybolt Tubes, as per ASTM D88 and IS:3117-2019, measures the viscosity of petroleum products. It features four tubes for simultaneous testing, with results expressed in Saybolt Universal Seconds (SUS). This instrument ensures accurate viscosity measurement for quality control in the petroleum and lubricant industries.Electrically heated model complete with Four Saybolt Tubes and electrical control panel with all accessories. With 4 Nos. Saybolt Viscosity Flask but without optional accessories.

Complies with ASTM D 88 / IS:3117-2019

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (Furol (3.150 mm) or Universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25°C and 50°C. The viscometer includes Waterbath, Motorized Stirrer, Electric Heater with Digital Temp. Controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy)

Construction Details:

  1. The apparatus consists of stainless steel bath with two sample cups
  2. The bath has a lid which contains a thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can be inserted into the cup cover to cross check the Digital controller.
  6. Four jets – Two Universal and Two Furol can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply
  8. Universal Orifice: 2 pc
  9. Furol Orific : 2 pc
  10. Thermometer Support: 4 pc
  11. Tube wrench : 1 set
  12. Saybolt Viscosity Flask, Glass, 60 ml: 4 pc
  13. Stopper : 4 pcs
  14. Operation Instruction Manual & Conformity Certificate : 1 Pc

The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (Essential accessory)
  3. Withdrawal Tube
  4. Strainer for Filtering
