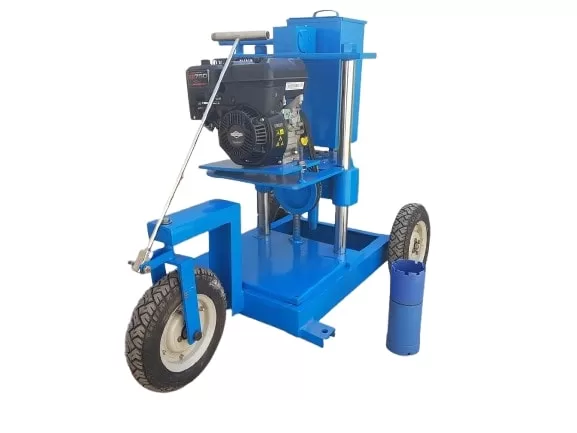

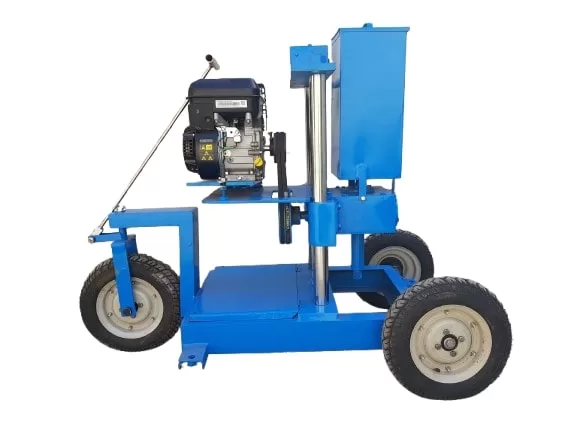

Pavement Core Drilling Machine, Petrol Engine VSLIC-B150

short info

Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately. The Machine is fitted with Honda Petrol Engine 5.5 HP capacity.

Model

VSLIC-B150

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Application:

For vertical coring applications of Concrete & Asphalt pavement

Details:

  1. Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.
  2. The Machine is fitted with Honda Petrol Engine 5.5 HP capacity.
  3. The capacity of the machine is 150 mm dia x 300 mm depth.
  4. The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.
  5. The core‑cutting machine is portable in nature & has towing arrangement with castor wheels for easy movement.

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Drill bit diameter

100 mm/150 mm diameter (Extra cost)

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43

ss


Related Searches

SPECIFICATIONS

Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Application:

For vertical coring applications of Concrete & Asphalt pavement

Details:

  1. Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.
  2. The Machine is fitted with Honda Petrol Engine 5.5 HP capacity.
  3. The capacity of the machine is 150 mm dia x 300 mm depth.
  4. The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.
  5. The core‑cutting machine is portable in nature & has towing arrangement with castor wheels for easy movement.

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Drill bit diameter

100 mm/150 mm diameter (Extra cost)

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43

ss

FEATURES

Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Application:

For vertical coring applications of Concrete & Asphalt pavement

Details:

  1. Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.
  2. The Machine is fitted with Honda Petrol Engine 5.5 HP capacity.
  3. The capacity of the machine is 150 mm dia x 300 mm depth.
  4. The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.
  5. The core‑cutting machine is portable in nature & has towing arrangement with castor wheels for easy movement.

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Drill bit diameter

100 mm/150 mm diameter (Extra cost)

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43

ss

PRODUCT VIDEO

WORKING PRINCIPALNew
