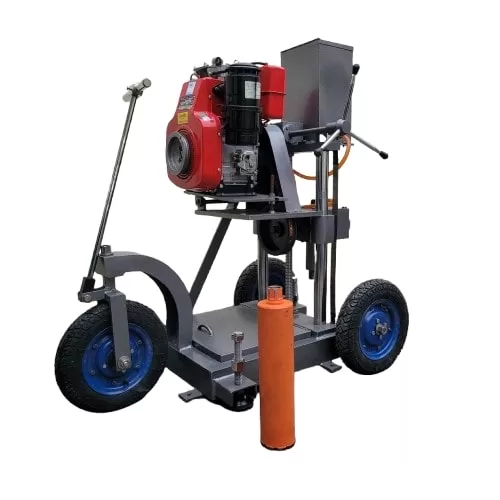

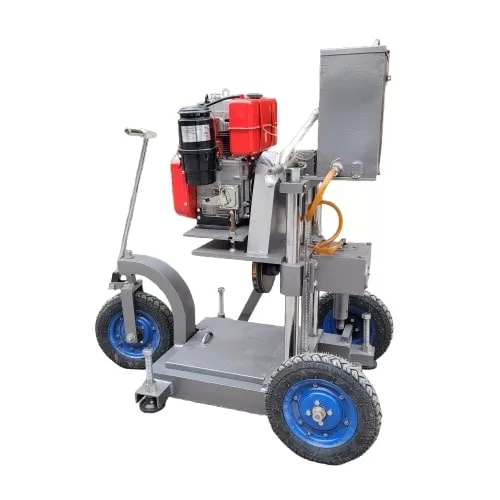

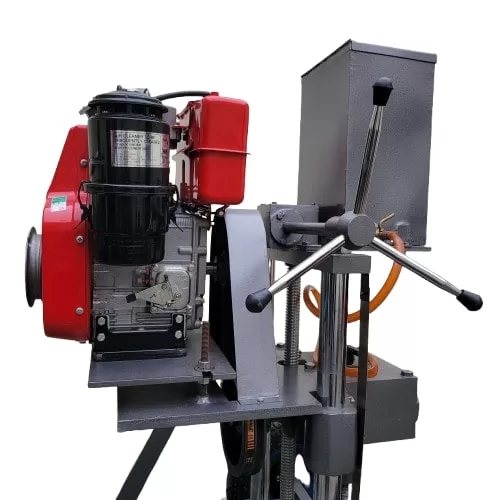

Pavement Core Drilling Machine with Diesel Engine VSLIC-B132

short info

The Pavement Core Drilling Machine with Crompton Diesel Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Standard

ASTM

Model

VSLIC-B132

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Complete with Crompton Diesel Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Application:

For vertical coring applications of Concrete & Asphalt pavement

Details:

  1. Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.

  2. The Machine is fitted with Crompton Greaves Diesel Engine 5.5 HP capacity.

  3. The capacity of the machine is 150 mm dia x 300 mm depth.

  4. The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.

  5. The core‑cutting machine is portable in nature & has towing arrangement with castor wheels for easy movement.

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Drill bit diameter

100 mm/150 mm diameter (Extra cost)

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43


Related Searches

SPECIFICATIONS

Complete with Crompton Diesel Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

Application:

For vertical coring applications of Concrete & Asphalt pavement

Details:

  1. Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.

  2. The Machine is fitted with Crompton Greaves Diesel Engine 5.5 HP capacity.

  3. The capacity of the machine is 150 mm dia x 300 mm depth.

  4. The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.

  5. The core‑cutting machine is portable in nature & has towing arrangement with castor wheels for easy movement.

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Drill bit diameter

100 mm/150 mm diameter (Extra cost)

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43

FEATURES

Features

  • 4 Hp and 11.5 HP high-quality petrol engines.
  • Coring range up to 200 mm dia.
  • Robust, compact, and portable.
  • Vertical screw feet.
  • Complete with strap wrench and spanner.
  • Wide range of coring bits with fixed standard coupling available.
