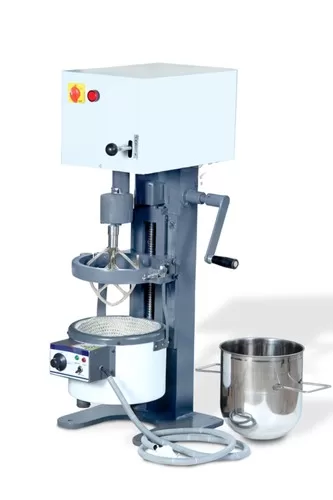

Planetary Mixer with Heating Jacket 5Ltrs., 10Ltrs. & 20Ltrs. VSLIC-B124

short info

Mixer with Heating Jacket is Used in conjunction with an Iso Mantle, is suitable for mixing samples of asphalt.

Mixer blade has low speed of 140 ± 5 rpm and medium speed of 285 ± 10 rpm, while it also has a planetary movement of 62 ± 5 rpm in low range and planetary movement of 125 ± 10 rpm in medium range.

Standard

IS 10890, EN 196-1 & EN 196-3, ISO 679, BS 3892-1, 3892-3, ASTM C109, C305, ASTM D6926b

Model

VSLIC-B124

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The planetary mixer plays a crucial role in asphalt laboratories to create consistent samples for mechanical and performance testing. It ensures homogeneous mixing, precise sample preparations and moulding. With heating temperature control arrangement. Mixing Bowl Capacity approximately 5 liters.

(Available up to 20 ltrs)

Introduction:

Planetary Mixer is used in Bitumen Testing Laboratories to speed up the process of preparing cylindrical specimens for Marshal Stability Test. The mix is uniformly heated and mixed to yield homogenous mix of better moulds for testing. The same mixer with heating jacket and some modifications can also be used for mixing of soil, cement paste, mortars, pozzolanas etc.

Salient Features:

  1. Electrically operated
  2. Fitted with heating jacket, Stainless Steel paddle and Electric Motor for thorough mixing of Bitumen.
  3. Electric Motor is connected to epicyclical type stainless steel paddles to impart both planetary and revolving motion for uniform mixing.
  4. The mixer has three different speeds for mixing i.e. Low, Medium and High.
  5. Mixer blade has low speed of 140 ± 5 rpm and medium speed of 285 ± 10 rpm, while it also has a planetary movement of 62 ± 5 rpm in low range and planetary movement of 125 ± 10 rpm in medium range.
  6. Stainless Steel paddle is fitted inside the stainless steel bowl of approximately 5 liter capacity with handle.
  7. The 500 Watts heating jacket with energy regulator to control the temperature of mixture is fitted below the bowl.
  8. Thermostat controlled temperature
  9. Complete unit is supported on a strong iron frame.
  10. External body of the unit is powder coated in attractive shades.
  11. Suitable to work on 230-220 Volt, 50 Hz, Single phase, AC Supply


Related Searches

SPECIFICATIONS

Planetary Mixer with Heating Jacket Specifications For 10 liters:

  1. Mixing capacity: 10 liters
  2. Heating pot temperature range: Room Temperature To 250°C (arbitrary setting)
  3. Temperature Control Accuracy : +/-3 Temperature
  4. Mixing time : 1-9999 seconds (arbitrary setting)
  5. Rotational speed of agitator : 48 rpm/min
  6. Rotation : 80 rpm/min
  7. Working conditions Temperature : – 10 ~40.
  8. Relative humidity : Not more than 80%
  9. Power supply voltage: ~220V + 10%, current: 20A
  10. Weight : 150kg

Planetary Mixer with Heating Jacket Specifications For 20 liters:

  1. Mixer bowl capacity: 20 liters
  2. Mixing capacity   : 12-14 kgs
  3. Heating pot temperature range : Room Temperature To 250°C (arbitrary setting)
  4. Temperature Control Accuracy : +/-3 Temperature
  5. Mixing time : 1-9999 seconds (arbitrary setting)
  6. Speed of blade revolution : 48 rpm/min
  7. Speed of blade Rotation : 80 rpm/min
  8. Working conditions Temperature : – 10 ~40.
  9. Relative humidity : Not more than 80%
  10. Power supply voltage: ~220V + 10%, current: 20A
  11. Weight : 220kg

FEATURES

Planetary Mixer with Heating Jacket Specifications For 10 liters:

  1. Mixing capacity: 10 liters
  2. Heating pot temperature range: Room Temperature To 250°C (arbitrary setting)
  3. Temperature Control Accuracy : +/-3 Temperature
  4. Mixing time : 1-9999 seconds (arbitrary setting)
  5. Rotational speed of agitator : 48 rpm/min
  6. Rotation : 80 rpm/min
  7. Working conditions Temperature : – 10 ~40.
  8. Relative humidity : Not more than 80%
  9. Power supply voltage: ~220V + 10%, current: 20A
  10. Weight : 150kg

Planetary Mixer with Heating Jacket Specifications For 20 liters:

  1. Mixer bowl capacity: 20 liters
  2. Mixing capacity   : 12-14 kgs
  3. Heating pot temperature range : Room Temperature To 250°C (arbitrary setting)
  4. Temperature Control Accuracy : +/-3 Temperature
  5. Mixing time : 1-9999 seconds (arbitrary setting)
  6. Speed of blade revolution : 48 rpm/min
  7. Speed of blade Rotation : 80 rpm/min
  8. Working conditions Temperature : – 10 ~40.
  9. Relative humidity : Not more than 80%
  10. Power supply voltage: ~220V + 10%, current: 20A
  11. Weight : 220kg
