Marshall Mould Standard Size: 4Inch and Modified Size: 6Inch VSLIC-B152

short info

Marshall Mould Standard Size : 101.6mm Dia x 76.2mm Height

Marshall Mould Modified Size: Mould Diameter   : 6″ (152.4 mm)

Standard

ASTM D1559, AASHTO T245, EN 12697-10, ASTM D6926

Model

VSLIC-B152

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

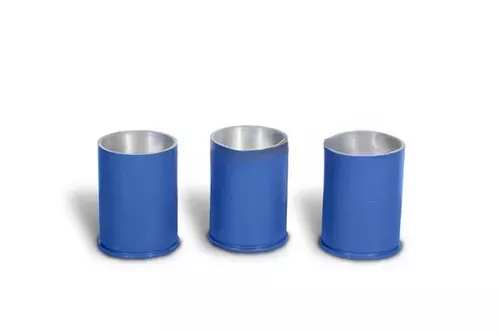

MARSHALL MOULD STANDARD SIZE: 4INCH

Compliance Standards:

ASTM D1559, AASHTO T245, EN 12697-10, ASTM D6926

Technical Specifications:

  1. Used to produce the Marshall specimens with automatic or manual compactors
  2. Manufactured from seamless steel
  3. Powder coated to prevent corrosion
  4. Mould consists of Mould body, collar and Base plate
  5. Size : 101.6mm Dia x 76.2mm Height

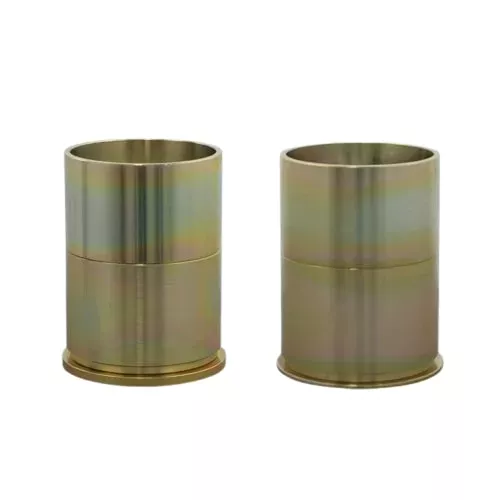

MARSHALL MOULD MODIFIED SIZE: 6INCH

Compliance Standards:

ASTM D5581.

The Marshall Mould with outside dia of 6.5″ (165.1mm) and inside dia of 6″(152.4mm ± 0.2mm), Mould having inside diameter by 4.5″(114.3 mm ± 0.3mm) in height, base plates, and extension collars will conform to the details shown in Fig. 1 of ASTM D5581.

Technical Specifications:

  1. Used to produce the Marshall specimens with automatic or manual compactors
  2. Manufactured from seamless Mild steel
  3. Powder coated to prevent corrosion
  4. Mould consists of Mould body, collar and Base plate
  5. Mould Diameter   : 6″ (152.4 mm)
  6. Mould height (without collar) : 4.5″(114.3 mm ± 0.3mm)
