Elastic Recovery Mould with Base Plate VSLIC-B153, VSLIC-B154, VSLIC-B155, VSLIC-B156

short info

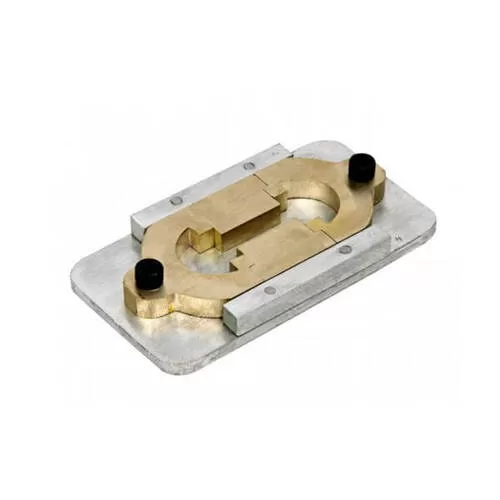

Elastic Recovery Mould with Base Plate

Model

VSLIC-B153, VSLIC-B154, VSLIC-B155, VSLIC-B156

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

AS PER IS: IRC-SP-53-2002 and IS 15462-2004

Construction Details

  • Made of brass /Gunmetal material
  • The shape, dimensions and tolerances as shown in fig 1 of IRC-SP-53-2002 Standard
  • The ends b & b` are known as clips, and the parts a & a’ are known as sides of the mould.
  • The dimensions of the mould will be such that, when it is properly assembled, it will form a briquette specimen having the following dimensions.

Total Length : 75 ± 0.5 mm

A = 36.5 ± 0.1 mm

B = 30.0 ± 0.1 mm

C = 17.0 ± 0.1 mm

D = 10.0 ± 0.1 mm

E = 10.0 ± 0.1 mm

As Per Compliance International Standards: ASTM D6084

Construction Details

  • Made of brass /Gunmetal material
  • The shape, dimensions and tolerances as shown in fig 1 of ASTM D6084 Standard
  • The ends b & b` are known as clips, and the parts a & a’ are known as sides of the mould.
  • The dimensions of the mould will be such that, when it is properly assembled, it will form a briquette specimen having the following dimensions.

A  = 36.0 ± 0.5 mm

B = 30.0 ± 0.1 mm

C  = 17.0 ± 0.1 mm

D = 06.0 ± 0.1 mm

E = 10.0 ± 0.1 mm

Thickness  = 10.0 ± 0.1 mm

As Per Compliance International Standards: EN 13398

Construction Details

  • Made of brass /Gunmetal material
  • The shape, dimensions and tolerances as shown in fig 1 of EN 13398 Standard
  • The ends b & b` are known as clips, and the parts a & a’ are known as sides of the mould.
  • The dimensions of the mould will be such that, when it is properly assembled, it will form a briquette specimen having the following dimensions.

A  = 10.0 ± 0.2 mm

B = 20.0 ± 0.2 mm

C  = 30.0 ± 0.3 mm

D = 07.3 ± 0.5 mm

E = 22.8 ± 0.9 mm

R = 15.5 ± 0.7 mm

Thickness  = 10.0 ± 0.1 mm

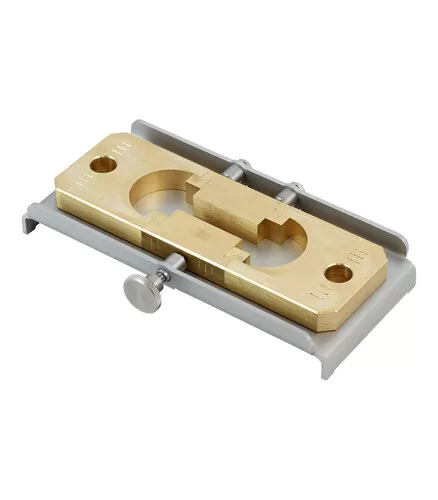

As Per Compliance International Standards: EN 13589

Construction Details

  • Made of brass /Gunmetal material
  • 10 X 10 MM in size
  • The shape, dimensions and tolerances as shown in fig 1 of EN 13589 Standard
  • The ends b & b` are known as clips, and the parts a & a’ are known as sides of the mould.
  • The dimensions of the mould will be such that, when it is properly assembled, it will form a briquette specimen having the following dimensions.
