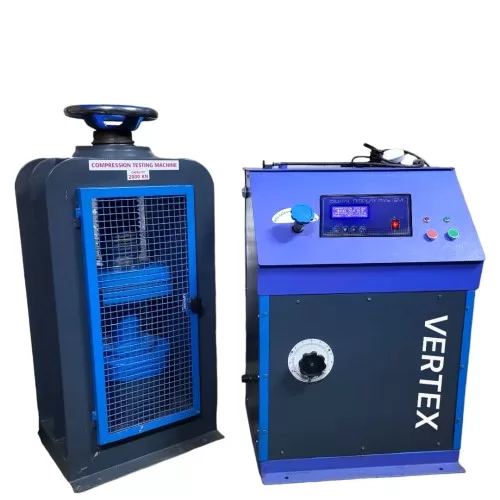

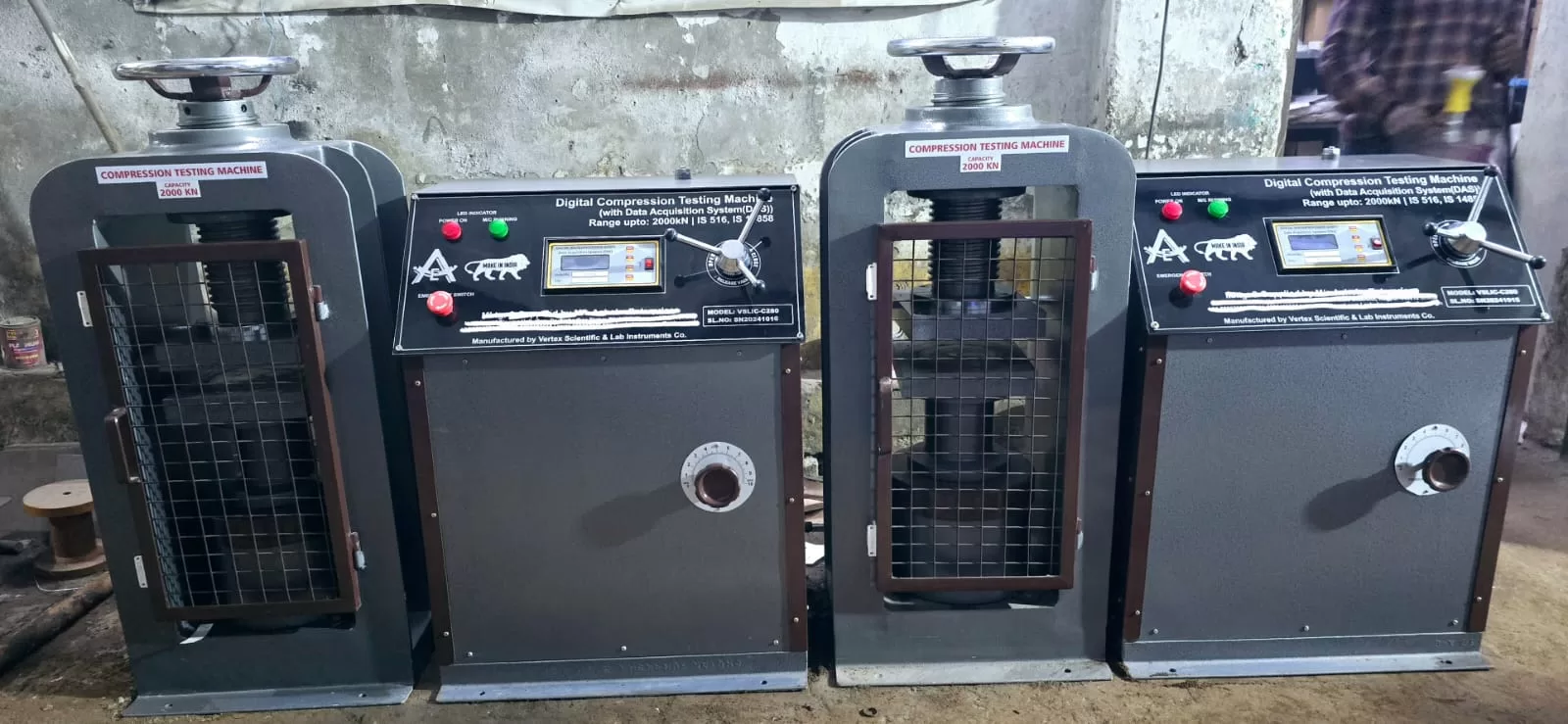

Digital Compression Testing Machine 1000kN Economy Model | Channel Type | Software VSLIC-C280.1000

short info

  • Available 20×4 Inch LCD Display Microprocessor Based Actual Load / Peak load, Rate of loading and Calculated load in kN , KG/cm², N/mm², mPA(as soon as sample fails)
  • Thermal Printer for Result Automatic Print after break Samples.
  • Four column high stiffness and high stability fully welded construction of the load frame.
  • Direct reading of compressive strength in N/mm2 No calculation required.
  • Peak hold facility.
  • Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
  • Pace rate indication in KN/Sec.
  • Live Bar Graph indication to control the pace rate
  • 10 Points Calibration.
  • Automatic internal calibration (without Proving ring)
  • Safety cut out for overload and electrical short circuit.
  • Safety door on the front side for operator safety.
  • Compact Pumping unit with manually variable rate of loading.

Standard

EN 12390 4, ASTM C39, AASHTO T22, IS : 14858 (2000)

Model

VSLIC-C280.1000

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Digital Compression Testing Machine 1000kN Economy Model is a robust and reliable piece of equipment designed for accurately measuring the compressive strength of materials. This machine is ideal for a variety of industries including construction, manufacturing, and materials science research. Its digital interface provides precise and easy-to-read measurements, making it a valuable tool for quality control and testing laboratories.

Key Features

  1. Digital Display: Clear and precise digital readout for easy measurement recording.
  2. High Accuracy: Provides accurate and consistent compression force measurements.
  3. Robust Construction: Built with durable materials to withstand heavy-duty use.
  4. User-Friendly Interface: Simple and intuitive controls for ease of operation.
  5. Adjustable Crosshead: Allows for testing of different sample sizes.
  6. Safety Features: Equipped with overload protection to prevent damage to the machine and ensure operator safety.

Applications

  1. Construction Materials: Testing the compressive strength of concrete, cement, and bricks.
  2. Metallurgy: Evaluating the compressive properties of metals and alloys.
  3. Plastic and Polymers: Determining the compressive strength of plastic components.
  4. Ceramics and Glass: Assessing the compressive strength of ceramic and glass products.
  5. Research and Development: Used in laboratories for various material testing and analysis.

Benefits

  1. Cost-Effective: An economical solution without compromising on quality and performance.
  2. Reliable Performance: Ensures accurate and reliable results for critical testing applications.
  3. Versatile Use: Suitable for a wide range of materials and industries.
  4. Ease of Maintenance: Designed for minimal maintenance, ensuring long-term use.

Technical Specifications

  1. Maximum Load Capacity: 1000 kN (kilonewtons)
  2. Load Resolution: 0.1 kN
  3. Platen Size: 300 mm x 300 mm
  4. Vertical Clearance: 400 mm
  5. Horizontal Clearance: 250 mm
  6. Power Supply: 220V, 50/60 Hz
  7. Dimensions: 800 mm x 600 mm x 1500 mm
  8. Weight: 450 kg


Related Searches

SPECIFICATIONS

Type of Pumping Electrical
Loading Range 1000 KN
Least count 0.1 KN
Ram dia 170 mm
Ram Travel in mm 50 mm
Platen dia 200 mm
Horizontal clearance: 250 mm
Vertical daylight in mm 300 mm
Overload Protection Yes
Sort circuit protection Yes
Pump Speed Dual speed
Motor Induction Motor
Reading Digital
Accuracy ± 1%
Release valve operation Manual
Auto stop after failure of specimen Available, Machine stops after completion of test
Holding of Max. Load Available
Pace Rate or Rate of Loading indication Yes available
Operator skill to control Pace Rate Required
Bar Graph Yes it will be displayed on the second line of the indicator
Multi Channel operation Not Available
Load indication and Control Digital membrane key pad controller
Saving of records Not Available
Pen drive slot Optional
Real time graph Not Applicable
Printer interface (Direct connectivity to printer w/o computer) Not Applicable
Computer operation software and data Acquisition software Not Applicable
Displacement controlled operation Not Available
Modulus of Elasticity Calculation Not Available
Flexural attachment Possible, all calculations will be made manually
Splitting Tensile Test Possible but manual calculation required
LAN Connectivity Not Available
Auto internal Calibration without proving ring Not Available
Piston over travel safety cut off Not Available
Over load safety cut off Available
Overall Dimensions 450 X 410 X 1000 (L X W X D) mm
Net weight (in kg) 350 kg

FEATURES

Compressive Testing Machine Features:

  • Available 20×4 Inch LCD Display Microprocessor Based Actual Load / Peak load, Rate of loading and Calculated load in kN , KG/cm², N/mm², mPA(as soon as sample fails)
  • Thermal Printer for Result Automatic Print after break Samples.
  • Four column high stiffness and high stability fully welded construction of the load frame.
  • Direct reading of compressive strength in N/mm2 No calculation required.
  • Peak hold facility.
  • Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
  • Pace rate indication in KN/Sec.
  • Live Bar Graph indication to control the pace rate
  • 10 Points Calibration.
  • Automatic internal calibration (without Proving ring)
  • Safety cut out for overload and electrical short circuit.
  • Safety door on the front side for operator safety.
  • Compact Pumping unit with manually variable rate of loading.
