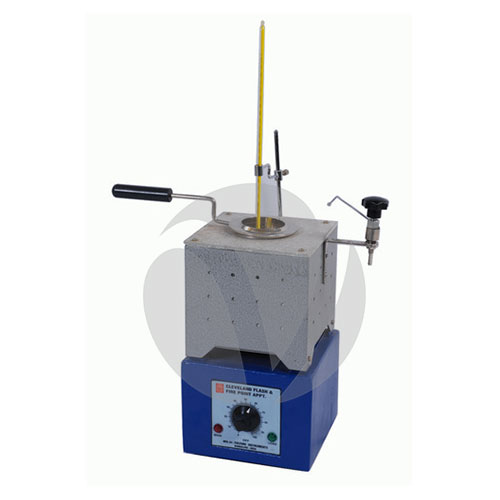

Cleveland Flash and Fire Point Apparatus(Economical) VSLIC-OP102

short info

For determining the flash & fire points of petroleum products except oils and products having an open cup flash below 175°F. It has a Cleveland flash-cup in brass with an insulated handle, a metal heating plate with a circular opening covered by asbestos board, an electric heater with energy regulator, and a gas test jet assembly.

Standard

IS:1448 (P-69)ASTM D92, IP ‑ 36/57, ISO 2592 : 2017

Model

VSLIC-OP102

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

For determining the flash & fire points of petroleum products except oils and products having an open cup flash below 175°F. It has a Cleveland flash-cup in brass with an insulated handle, a metal heating plate with a circular opening covered by asbestos board, an electric heater with energy regulator, and a gas test jet assembly.

This apparatus is used for determination of Flash Point of petroleum products with open flash between 79°C – 400°C as per specification IP 36/57, IS 1448 (P:69) 2019 and ASTM‑D‑92.


Related Searches

SPECIFICATIONS

Compliance with following International Standards:

IS:1448 (P-69)ASTM D92, IP ‑ 36/57, ISO 2592 : 2017

Purpose:

This apparatus is used for determination of Flash Point of petroleum products with open flash between 79°C – 400°C as per specification IP 36/57, IS 1448 (P:69) 2019 and ASTM‑D‑92.

Construction Details:

The apparatus consists of a cup heating plate to specific dimensions, thermometer clip and test flame applicator with swivel joint for passing over liquid surface in the prescribed manner. Heater is controlled by energy regulator fitted to the apparatus. Suitable for operation on 220 Volts, 50 cycles, AC mains. Basic Model with ARBITRARY control over the rate of rise of temp.

FEATURES

Compliance with following International Standards:

IS:1448 (P-69)ASTM D92, IP ‑ 36/57, ISO 2592 : 2017

Purpose:

This apparatus is used for determination of Flash Point of petroleum products with open flash between 79°C – 400°C as per specification IP 36/57, IS 1448 (P:69) 2019 and ASTM‑D‑92.

Construction Details:

The apparatus consists of a cup heating plate to specific dimensions, thermometer clip and test flame applicator with swivel joint for passing over liquid surface in the prescribed manner. Heater is controlled by energy regulator fitted to the apparatus. Suitable for operation on 220 Volts, 50 cycles, AC mains. Basic Model with ARBITRARY control over the rate of rise of temp.

PRODUCT VIDEO

WORKING PRINCIPALNew
