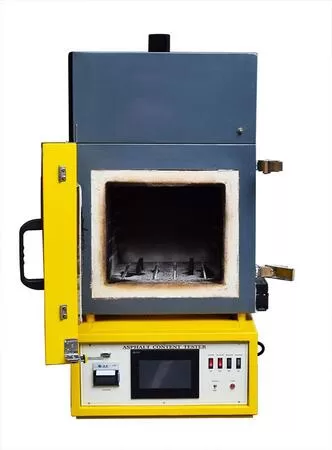

Asphalt Content Oven (Asphalt Ignition Oven) ASTM D6307 VSLIC-B136

short info

Asphalt Content Tester, also know as Asphalt Content Furnace or Binder Ignition Furnace, is used to determine the asphalt content of hot mix asphalt (HMA) and pavement samples by removing the asphalt in an ignition furnace by means of sample heating not by means of solvent. Standard followed is ASTM D6307 & EN 12697 39. Sutiable for operation on 415 V 50 Hz 20 ampere three phase ac power supply.

Maximum weight specimen is 4000 gms, suggested weight of specimen is 1000 gms to 1500 gms.

Watch an easy, step by step guide to perform Asphalt Content Test on Hot Mix using Asphalt Content Furnace/Tester.

Standard

ASTM D6307-98 and AASHTO T30

Model

VSLIC-B136

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt.

Model approved and certified by IIT Gandhinagar.

Exterior body

Fabricated from Mild Steel Material

Exterior Body Paint

Powder coating in attractive shades

Inner chamber

Constructed from stainless steel with matt buffing

Insulation

High Temperature cera wool insulation

Insulation thickness

75 mm (3 Inches)

Chamber Dimensions

350 x 350 x 350 mm

Chamber volume

42 Liters

Max weight of specimen

4500 gms

Commendatory weight of specimen

1000-1500 gms

Capacity of balance

10 kg

Precision of balance

0.1 gms

Max working temp of chamber

600 °C

Standard working temp

538 °C with temperature compensating technique

Temperature sensor

K-Type thermocouple

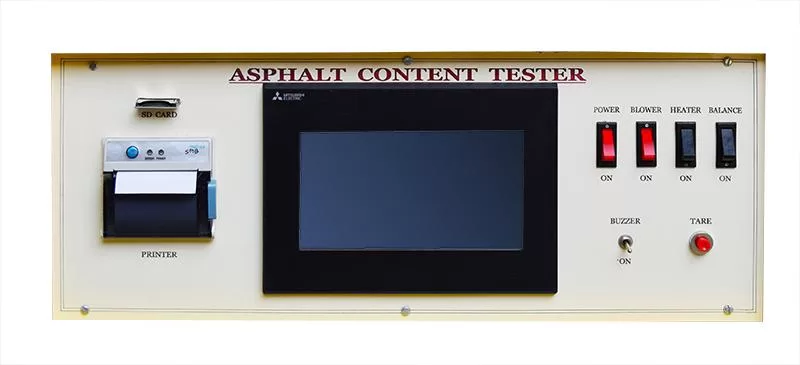

Temperature Control

7″ Touch screen HMI & PLC Controller

Testing Time

30-45 minutes

Ramp & Profile Programming

In built- ramp & profile programming in LCD Touch Screen

Display

LCD Colour display

Results on

In-Built Dot-Matrix Printer

Power Supply

AC 440V ± 10%, 50 Hz

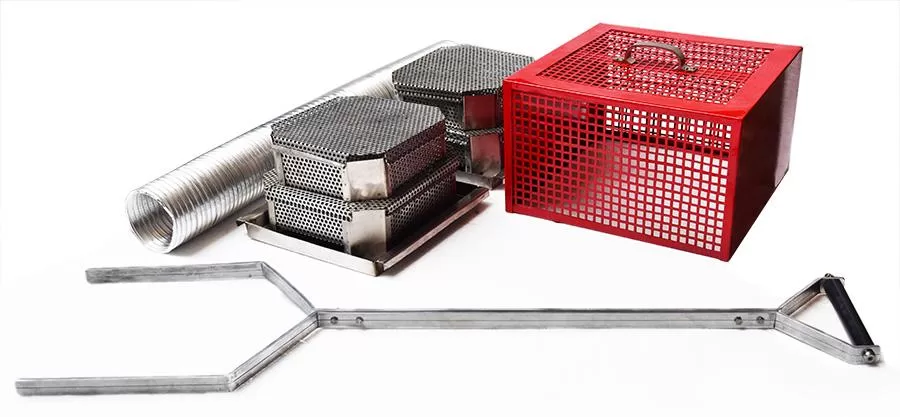

Accessories

Supplied complete with Sample Bucket, Lifting Handle and Asbestos gloves

Overall Dimensions

800 X 800 X 1600 (L X W X D) mm

Weight (Approx.)

290 Kgs Approx.

SS


Related Searches

SPECIFICATIONS

The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt.

Model approved and certified by IIT Gandhinagar.

Exterior body

Fabricated from Mild Steel Material

Exterior Body Paint

Powder coating in attractive shades

Inner chamber

Constructed from stainless steel with matt buffing

Insulation

High Temperature cera wool insulation

Insulation thickness

75 mm (3 Inches)

Chamber Dimensions

350 x 350 x 350 mm

Chamber volume

42 Liters

Max weight of specimen

4500 gms

Commendatory weight of specimen

1000-1500 gms

Capacity of balance

10 kg

Precision of balance

0.1 gms

Max working temp of chamber

600 °C

Standard working temp

538 °C with temperature compensating technique

Temperature sensor

K-Type thermocouple

Temperature Control

7″ Touch screen HMI & PLC Controller

Testing Time

30-45 minutes

Ramp & Profile Programming

In built- ramp & profile programming in LCD Touch Screen

Display

LCD Colour display

Results on

In-Built Dot-Matrix Printer

Power Supply

AC 440V ± 10%, 50 Hz

Accessories

Supplied complete with Sample Bucket, Lifting Handle and Asbestos gloves

Overall Dimensions

800 X 800 X 1600 (L X W X D) mm

Weight (Approx.)

290 Kgs Approx.

SS

FEATURES

The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt.

Model approved and certified by IIT Gandhinagar.

Exterior body

Fabricated from Mild Steel Material

Exterior Body Paint

Powder coating in attractive shades

Inner chamber

Constructed from stainless steel with matt buffing

Insulation

High Temperature cera wool insulation

Insulation thickness

75 mm (3 Inches)

Chamber Dimensions

350 x 350 x 350 mm

Chamber volume

42 Liters

Max weight of specimen

4500 gms

Commendatory weight of specimen

1000-1500 gms

Capacity of balance

10 kg

Precision of balance

0.1 gms

Max working temp of chamber

600 °C

Standard working temp

538 °C with temperature compensating technique

Temperature sensor

K-Type thermocouple

Temperature Control

7″ Touch screen HMI & PLC Controller

Testing Time

30-45 minutes

Ramp & Profile Programming

In built- ramp & profile programming in LCD Touch Screen

Display

LCD Colour display

Results on

In-Built Dot-Matrix Printer

Power Supply

AC 440V ± 10%, 50 Hz

Accessories

Supplied complete with Sample Bucket, Lifting Handle and Asbestos gloves

Overall Dimensions

800 X 800 X 1600 (L X W X D) mm

Weight (Approx.)

290 Kgs Approx.

SS

PRODUCT VIDEO

WORKING PRINCIPALNew
