short info

The Vibratory Sieve Shaker offers everything you need for the fast determination of quantitative particle size distribution in the laboratory.

Standard

ASTM

Model

VSLIC-S195

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

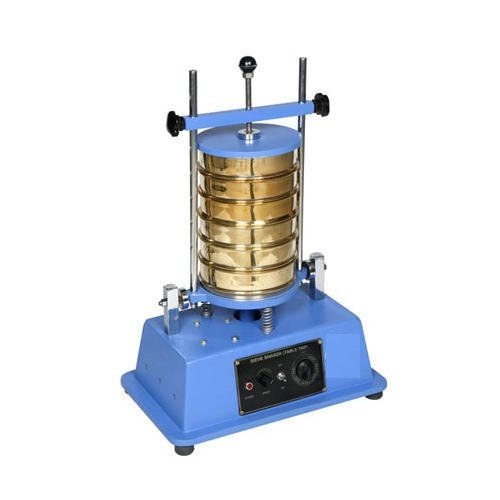

The Vibratory Sieve Shaker offers everything you need for the fast determination of quantitative particle size distribution in the laboratory. As a shaking sieve system with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations and is the ideal solution for sieving sample quantities up to 2 kg and a measurement range from 5 μm to 63 mm.

This is low-noise, robust, and long-lasting. Perfect for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves or micro precision sieving.



SPECIFICATIONS

Technical

  • Carrying up to 7 to 8 Sieves of 200mm diameter Sieves.
  • The Shaker is driven by HP motor through a reduction gear immersed in oil. The sieve table dies not to rotate but is inclined from the vertical axis and the Direction of inclination changes progressively in a clockwise direction.
  • If the stop pin below the table is removed.
  • The shaker can have a rotary motion.
  • There is a pair of rods and a holder are supplied.
  • The holder can be fixed on the top of the upper cycles.
  • Sizes: 200mm, 300mm, 450mm dia.

FEATURES

  • Application-specific design.
  • Long working life.
  • High efficiency.
  • It can be used for both dry and wet applications.

PRODUCT VIDEO
