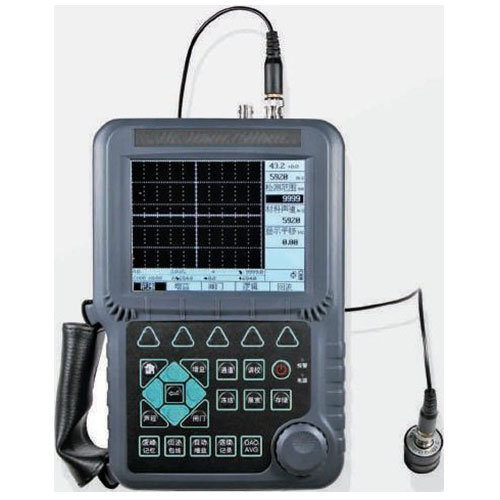

Ultrasonic Flaw Detector

quick info

Ultrasonic Flaw Detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts an all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment the brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

GTJ-U600

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

get a quote

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Ultrasonic Flaw Detectors are instruments for material testing for detection of certain imperfections inside the material under test.
…
Background
  • Sound attenuation (acoustic parameters, grain size, texture, anisotropy, composite)
  • Geometry (thickness, shape)
  • Type of imperfection (crack, air inclusion, foreign body, size)

SPECIFICATIONS

Product specifications GTJ-U600 fully digital ultrasonic flaw detector
Examination range (0~9999) mm
Working frequency (0.2~20) MHz
Sound speed range (1000~15000) m/s
Dynamic Range ≥36dB
Vertical linearity error ≤2.5%
Horizontal linearity error ≤0.1%
Discrimination >40dB(5P14)
Sensitivity margin >65dB (deep 200mm Ф 2 flat bottom hole)
Digital suppression (0~80) %, does not affect linearity and gain
Electrical noise level ≤8%
Probe type Straight probe, oblique probe, dual crystal probe, penetration probe
Gate Incoming gate, loss gate; single gate reading, double gate reading
Pulse amplitude Low (300V), medium (500V), high (700V) grading options
Pulse Width Continuous adjustment in the range of (0.1~0.5)μs to match probes of different frequencies
Probe damping 100Ω, 200Ω, 400Ω optional
Real-time sampling of hardware High resolution 10-bit AD converter with sampling speed of 160MHz and high waveform fidelity
Detection method Positive half wave, negative half wave, full wave, radio frequency detection
Filter band (0.2~20) MHz, fully automatic matching according to probe frequency, no need to set manually
Data storage 100 sets of flaw detection parameter channels, 1000 flaw detection echo signals and parameters
Communication Interface USB2.0 high speed communication transmission interface
power supply DC (DC) 9V; lithium battery works continuously for more than 8 hours
Dimensions 263×170×61 (mm)
Ambient temperature and humidity Temperature: (-10~50) °C Humidity: (20~95)%RH

FEATURES

  • Sound attenuation (acoustic parameters, grain size, texture, anisotropy, composite)
  • Geometry (thickness, shape)
  • Type of imperfection (crack, air inclusion, foreign body, size)

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
