Tile Flexure Testing Machine VSLIC-C155

short info

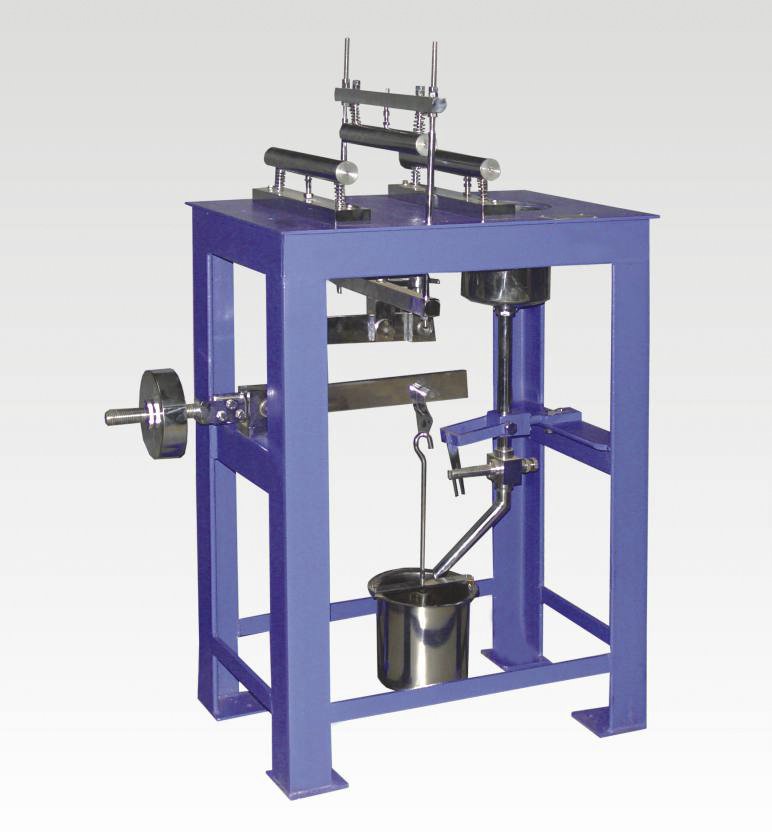

The Tile Flexure Testing Machine is used to determine the flexural strength of clay roofing tiles and cement concrete flooring tiles. This is a double lever loading machine where load is placed by a flow of lead metal that automatically stops as the sample breaks. The sample is mounted between rollers which are 40mm or 12mm in dia. Bearing rollers can be placed at center distances of 150, 200 or 270mm. The unit comes equipped with a 20 Kg lead metal.

Standard

IS:1237-1980

Model

VSLIC-C155

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

For carrying out transverse strength tests on cement concrete flooring tiles.

The equipment consist of two bearing rollers and a third self aligning loading roller, all 25 mm in diameter.

The center to center distance between bearing rollers can be set at 150, 200 or 250 mm.

The loading is through double lever loading system by means of a steady flow of lead shot from a lead shot container to a receiver hung on the lever system. The rate of flow of lead shot is adjustable as per required rate of loading.

The flow of lead shot stops automatically on failure of test specimen and the breaking load can be calculated by multiplying the weight of lead shot in the receiver by 12.

Maximum capacity of the machine is 2 kN. Lever ratio is 1 : 12. Supplied complete with 20 kg lead shot.


Related Searches

SPECIFICATIONS

For carrying out transverse strength tests on cement concrete flooring tiles.

The equipment consist of two bearing rollers and a third self aligning loading roller, all 25 mm in diameter.

The center to center distance between bearing rollers can be set at 150, 200 or 250 mm.

The loading is through double lever loading system by means of a steady flow of lead shot from a lead shot container to a receiver hung on the lever system. The rate of flow of lead shot is adjustable as per required rate of loading.

The flow of lead shot stops automatically on failure of test specimen and the breaking load can be calculated by multiplying the weight of lead shot in the receiver by 12.

Maximum capacity of the machine is 2 kN. Lever ratio is 1 : 12. Supplied complete with 20 kg lead shot.

FEATURES

For carrying out transverse strength tests on cement concrete flooring tiles.

The equipment consist of two bearing rollers and a third self aligning loading roller, all 25 mm in diameter.

The center to center distance between bearing rollers can be set at 150, 200 or 250 mm.

The loading is through double lever loading system by means of a steady flow of lead shot from a lead shot container to a receiver hung on the lever system. The rate of flow of lead shot is adjustable as per required rate of loading.

The flow of lead shot stops automatically on failure of test specimen and the breaking load can be calculated by multiplying the weight of lead shot in the receiver by 12.

Maximum capacity of the machine is 2 kN. Lever ratio is 1 : 12. Supplied complete with 20 kg lead shot.

PRODUCT VIDEO

WORKING PRINCIPALNew
