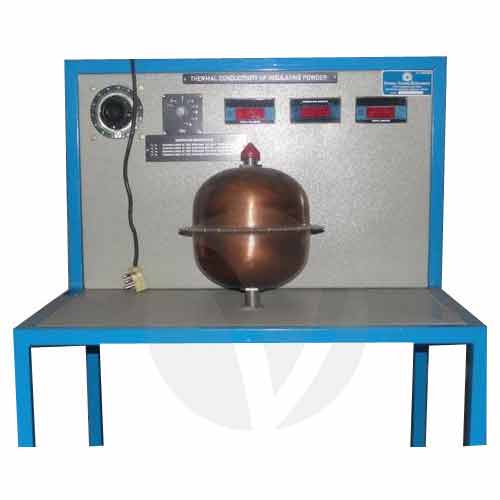

This apparatus is designed to determine the thermal conductivity of insulating powder. The apparatus consists of two thin walled concentric copper spheres. Inner sphere houses Nichrome Wire heater.
Insulating powder is filled between the two spheres
Heat flows radially outwards. Temperature sensors at proper positions are fitted to measure surface temperatures of spheres
Heat input to the heater is given through a variac and measured by Digital Voltmeter Digital Ammeter. By varying the heat input rates, data can be obtained
- Inner Sphere: Dia: 100 mm
- Outer Sphere: Dia: 200 mm
- Heater: Nichrome Wire Heater
- The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure
