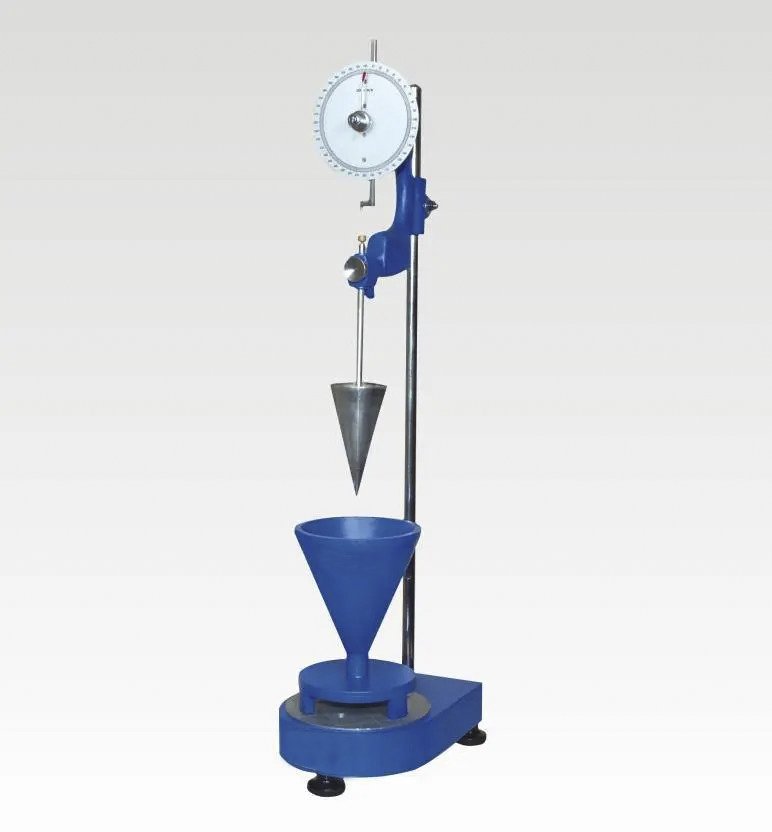

Standard Cone Apparatus VSLIC-C154

short info

Used for the determination of consistency of masonry mortar. A standard cone 75 mm base dia x 150 mm high with a bearing rod. Total weight 300 ± 2 g.

Standard

IS: 2250-1981

Model

VSLIC-C154

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Used for the determination of consistency of masonry mortar.

It consists of the following:-

  • A standard cone 75 mm base dia x 150 mm high with a bearing rod. Total weight 300 ± 2 g.
  • A conical container 150 mm dia at top and 180 mm deep.
  • A platform for the container.
  • Penetration measuring apparatus comprising a base with an upright bearing rod carrying a vertically adjustable bracket. The bearing rod of the Standard Cone passes through the lower bracket arm which houses a clamping and release mechanism. The upper bracket arm carries a dial, graduated to read 1/10th of a mm and a rack and pinion arrangement with a pointer.
  • A 25 mm square tamping bar 200 mm long.


Related Searches

SPECIFICATIONS

Used for the determination of consistency of masonry mortar.

It consists of the following:-

  • A standard cone 75 mm base dia x 150 mm high with a bearing rod. Total weight 300 ± 2 g.
  • A conical container 150 mm dia at top and 180 mm deep.
  • A platform for the container.
  • Penetration measuring apparatus comprising a base with an upright bearing rod carrying a vertically adjustable bracket. The bearing rod of the Standard Cone passes through the lower bracket arm which houses a clamping and release mechanism. The upper bracket arm carries a dial, graduated to read 1/10th of a mm and a rack and pinion arrangement with a pointer.
  • A 25 mm square tamping bar 200 mm long.

FEATURES

Used for the determination of consistency of masonry mortar.

It consists of the following:-

  • A standard cone 75 mm base dia x 150 mm high with a bearing rod. Total weight 300 ± 2 g.
  • A conical container 150 mm dia at top and 180 mm deep.
  • A platform for the container.
  • Penetration measuring apparatus comprising a base with an upright bearing rod carrying a vertically adjustable bracket. The bearing rod of the Standard Cone passes through the lower bracket arm which houses a clamping and release mechanism. The upper bracket arm carries a dial, graduated to read 1/10th of a mm and a rack and pinion arrangement with a pointer.
  • A 25 mm square tamping bar 200 mm long.
