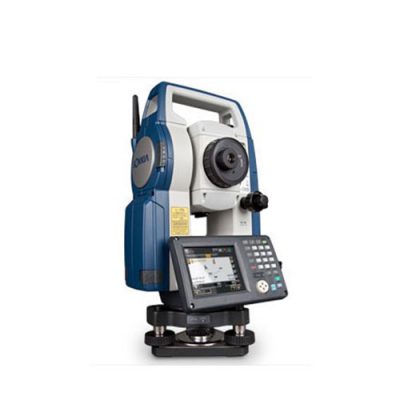

The FX total station provides the advantage of on-board Windows® CE operating system and comes standard with MAGNET™ Field, cloud-based application software for unmatched measurement ease and data security.

[wpdm_package id='6570']
[vcex_divider color=”#eaeaea”]

It also features TSshield, an exclusive telematics-based communications module that provides remote security, tracking, and diagnostic support. Long-Range Bluetooth® technology allows data to be seamlessly transferred to a Bluetooth-equipped controller. Its compact size and long-lasting battery makes long work days easier to manage.

Windows® CE operating system in compact, rugged body
MAGNET or GeoPro Field on-board application software
Advanced Angle Measurement System
RED-Tech advanced reflectorless measurement
Long-Range Bluetooth® wireless communication
TSshield security, tracking, and remote diagnostic support
Available in 1, 2, 3, and 5 second models


Angle Measurement 1″, 2″, 3″, 5″
Distance Measurement (Single Prism) 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Distance Measurement (Reflectorless) 0.3 to 500m (1.0 to 1,640ft.)*
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Accuracy (Single Prism) (2 + 2ppm x D) mm
Accuracy (Reflectorless) (3 + 2ppm x D) mm*
Measuring range:0.3 to 200m
Measuring Time Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
Tilt Compensation Dual Axis, Compensation Range +/- 6′
Wireless Communication Bluetooth Class 1 – 300m (980ft)
No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain.
Operating System/Processor Microsoft Windows® CE 6.0 / MAGNET FIELD
Display 3.5in. / Transmissive TFT QVGA color LCD
Dust/Water Protection IP65
Operating Temperature -20 to +50ºC (-4 to +122ºF)
Size (single face model) W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)
Weight (battery & tribrach) Approx. 5.7kg (12.6 lb.)
Operating Time Approx. 20 hours (single distance measurement every 30 seconds)
