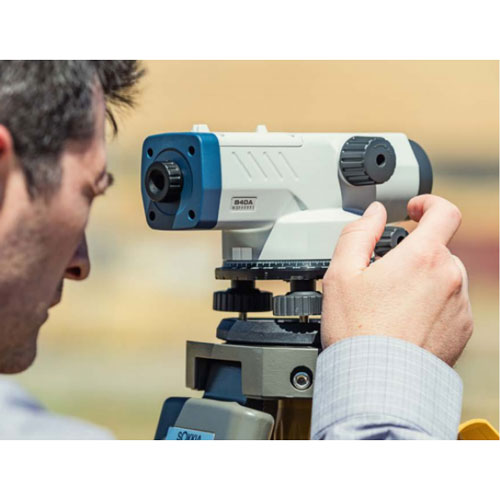

Sokkia B40a Automatic Level feature enhanced reliability under all environmental conditions and are more tightly sealed against water, dust and humidity (IPx6). The B series levels provide quick setup, easy sighting, and superior durability against vibration and shock, ensuring the increased productivity over an extra-long period of time.

The B series Sokkia Auto levels incorporate the most precise and reliable compensator available in the market today. The optimally designed telescope provides exceptionally bright and sharp view that reduces operator’s eye strain. Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.

Leveling Accuracy: B20 – ±0.7mm; B30 ±1.5mm; B40 ±2.0mm
Telescope Magnification: B20 – 32x; B30 – 28x; B40 – 24x
Minimum focus distance: 0.2m from end of telescope, 0.3m from instrument center
IPX6 (IEC 60529:2001) dust tight and water tight protection
Precise, Reliable Automatic Compensator
Horizontal Angle Measurement
Quick collimation with two horizontal motion knobs
Superior telescope with two-speed focus knob

Model

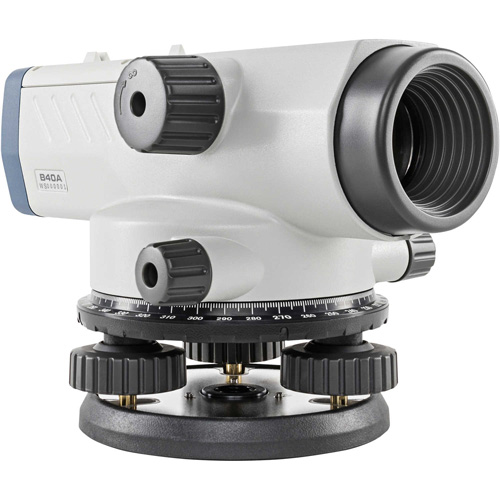

Sokkia B40A

Origin

Indian

Make/ OEM

SOKKIA

Brochure

DOWNLOAD

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

Sokkia B40a Automatic Level Description

Rapid, Stable, and Durable Compensator

The compensator of B20/B30A/B40A incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

20cm (7.9 in.) – Ultra-Short Minimum Focus

B20/B30A/B40A can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.

Horizontal Circle for Angle Measurement

Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature allows you to read any angle from zero.

All-Weather Dependability

With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning B20/ B30A/B40A withstands a sudden shower or torrential rainfall. The advanced protection design also deters clouding or condensation inside the telescope.

Specifications of Sokkia B20 / B30/ B40 Automatic Level

TELESCOPE	Sokkia B20 Level	Sokkia B30 Level	Sokkia B40 Level
Length	215mm (8.46 in.)	215mm (8.46 in.)	215mm (8.46 in.)
Magnification	32X	28X	24X
Objective Aperture	42mm (1.65 in.)	36mm (1.42 in.)	32mm (1.26 in.)
Resolving Power	3 in.	3.5 in.	4 in.
Field of View	1°20’	1°25’	1°25’ (at 100m/328ft.)
(at 100m/328ft.)	(2.3m/7.5 ft.)	(2.5m/8.2 ft.)	(2.5m/8.2 ft.)
Min. Focus from end of telescope	0.2m (7.9 in.)	0.2m (7.9 in.)	0.2m (7.9 in.)
Min. Focus from instrument center	0.3m (1 ft.)	0.3m (1 ft.)	0.3m (1 ft.)
Image	Erect	Erect	Erect
Stadia Constant	0	0	0
Stadia Ratio	100	100	100
Focusing Knob	2-speed	1-speed	1-speed
Sighting Aid	Peep Sight	Gun Sight	Gun Sight
ACCURACY	Sokkia B20	Sokkia B30	Sokkia B40
Without Micrometer	0.7mm (0.03 in.)	1.5mm (0.06 in.)	2.0mm (0.08 in.)
With Micrometer	0.5mm (0.02 in.)	n/a	n/a
COMPENSATOR	Sokkia B20	Sokkia B30	Sokkia B40
Type	Pendulum compensator with magnetic damping system
Setting Accuracy	0.3 in.	0.5 in.	0.5 in.
Working Range	±15 ft.	±15ft.	±15 ft.
CIRCULAR LEVEL	Sokkia B20	Sokkia B30	Sokkia B40
Sensitivity	10 ft./2mm	10 ft./2mm	10 ft./2mm
HORIZONTAL CIRCLE	Sokkia B20	Sokkia B30	Sokkia B40
Diameter	103mm (4.1 in.)	103mm (4.1 in.)	103mm (4.1 in.)
Minimum Division	1°/1gon	1°/1gon	1°/1gon
GENERAL	Sokkia B20	Sokkia B30	Sokkia B40
Water Resistance	IPX6 (IEC 60529:2001)
Operating Temperature	-4°F to +122°F (-20ºC to +50ºC)
Width	5.12 in. (130mm)	5.12 in. (130mm)	5.12 in. (130mm)
Length	8.46 in. (215mm)	8.46 in. (215mm)	8.46 in. (215mm)
Height	5.51 in. (140mm)	5.51 in. (140mm)	5.31 in. (135mm)
Weight	4.1 lbs. (1.85kg)	3.7 lbs. (1.7kg)	3.7 lbs. (1.7kg)
