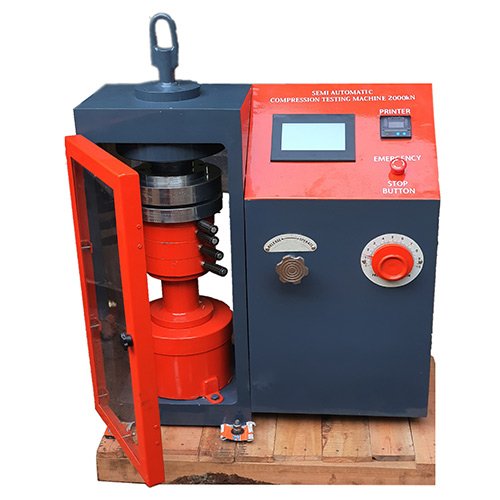

Semi Automatic Compression Testing Machine-Touch Screen with Printer VSLIC-C283

short info

The VERTEX Semi-Automatic Compression Testing Machines have been manufactured for steady testing of concrete cube and cylinder specimens.

Can be done the following tests with this machines;

  • Compression strength tests.
  • Flexural and splitting tests by using proper accessories.
  • Mortar (Cement) compression tests by using proper accessories.
  • Unconfined core testing

Standard

IS 14858:2000, ASTM C39, BS 1881, EN 12390-4

Model

VSLIC-C283

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

This Model is similar to except that it has Microprocessor based digital display system with storage facility of test results in place of simple display unit.

Other essential parts like Hydraulic Pumping system and loading unit remains the same as described earlier.

Microprocessor based Digital Display System with Storage facility

Indication of load is on digital display system, which is directly indicated in respective engineering unit. The electronic display unit is totally microprocessor based with a built in USB/ Ethernet. It has indication for load, peak load, pacing rate and pace rate indicator. Load is indicated in terms of kN. System has facility to store results of more than 5000 tests in the memory, which can be off loaded on a Computer.

Pace rate is achieved manually by controlling the flow control knob and the adjustment can be made by observing the error on the display and the system is released manually after the peak load is achieved.

SALIENT FEATURES OF SYSTEM

  • Menu driven interface
  • Facility to perform various operations such as TARE, PROGRAMMING, START, STOP etc. at front panel display
  • Programmable Rate of loading (Load rate) and sample parameters (Shape, Dimension, weight etc.) through Panel
  • Pace Rate indicator and can be controlled manually through fine control knob
  • On-line display of Load and Peak Load with recording of Peak load
  • Automatic data logging on stop button
  • Real time clock check to keep automatic track of the date, time and runs
  • Transmission of Data to computer through Ethernet/USB/RS232 port
  • Test results can be stored in the electronic unit and can be retrieved.

Semi Automatic Compression Testing Machine Testable Specimens

  • Concrete Cubes: 100 mm, 150 mm, 200 mm concrete cube sample or any other custom cube and prism size can be tested with this machine.
  • Concrete Cylinder: 100×200 mm, 150×300 mm, 160×320 mm concrete cylinder samples or any other custom diameters cylinder can be tested with this machine.


Related Searches

SPECIFICATIONS

Technical Specification

 Model VSLIC-C283.500 VSLIC-C283.1000 VSLIC-C283.2000 VSLIC-C283.3000
 Capacity   500 kN  1000 kN  2000 kN  3000 kN
 Roughness of Platens   ≤3.2 μm
 Platen Dimensions   Ø165 mm  Ø216 mm  Ø370 mm  Ø380 mm
 Max Vertical Clearance   340 mm  370 mm  370 mm  380 mm
 Piston Diameter   150 mm  230 mm  250 mm  300 mm
 Maximum Piston Movement  50 mm
 Horizontal Clearence   230 mm  320 mm  360 mm  425 mm
 Oil Capacity  12 L 20 L
 Max Working Pressure   34 MPa  36.2 MPa 41 MPa
 Dimensions (mm)  590 x 500 x 800  680 x 500 x 930  740 x 500 x 970  805 x 540 x 1050
 Weight   385 kg  590 kg  760 kg  1060 kg

FEATURES

Salient Features of VERTEX ‑ Digital CTM Machine:

  1. 7Inch Touch Screen Full HD 1080 Pixel, displaying ‑ Actual Load / Peak load, Realtime Graph, Bar-Graph, Rate of loading and Calculated load in N/mm² (as soon as sample fails)
  2. Four column high stiffness and high stability fully welded construction of the load frame.
  3. Direct reading of compressive strength in N/mm2 & KG/cm2.
  4. Peak hold facility.
  5. Thermal Printing Facility Inbuild Machine.
  6. Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
  7. Pace rate indication in KN/Sec.
  8. Emergency stop button
  9. Capable of selecting different test parameters like pace rate, sample size, and area from computer (software).
  10. Bar Graph indication to control the pace rate
  11. Built in memory for last 100000 readings
  12. Automatic internal calibration (without Proving ring)
  13. Capable of printing direct reports from the computer.
  14. Safety cut out for overload and electrical short circuit.
  15. Safety door on the front side for operator safety.
  16. Compact Pumping unit with manually variable rate of loading.

Salient features of data manager PC software (Optional).

  1. Two-way communication i.e. machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  2. Graph Shows (Load(kN) vs Time (Sec.),Stress(N/mm2) vs Time (Sec.) & Load(kN) vs Stress(N/mm2).
  3. Results directly saved in excel, word & PDF file
  4. Capable to save customer name, other details of customer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
  5. Capable to print direct report from the computer
  6. Capable to select different test parameters like pace rate, sample size and area from the computer (software)

Scope of supply:

  1. High strength rigid structure (Loading Frame)
  2. Pumping unit (Oil source cabinet)
  3. Digital Load indicator
  4. High precision pressure transmitter
  5. Pair of compression platens
  6. High pressure hose pipe
  7. Computer Software CD(Optional)
  8. NABL Calibration Certificate

Construction – Compression Testing Machine

Heavy duty spherical seat, allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.

Surface hardness of platen is 55 HRC, flatness tolerance 0.03mm. Traceable certificate of surface hardness available on request.
