short info

Having 30x Magnification, 0.1″ Least Count and 1″ Accuracy, Dual Axis Compensator, 32 BIT CPU, DISPLAY: Size – 3.5″, 640*480, Dual Display – Color TFT LCD touch screen with LED backlit alphanumeric keyboard,  Measuring Time: Fine – 0.3s, Tracking – 01.s, Atmospheric Correction: T-P Sensor, Auto Detect and Correct, Prism Constant: Manual Input, Auto Correction, Accuracy: Prism Mode – ±(1mm+1.5ppm x D)m.s.e. *3, Non-Prism Mode – 1-100m:±(2mm+2ppm x D)m.s.e. *3; 100-600m:±(3mm+3ppm x D)m.s.e. 3; 600m-1000m: ±(5mm+3ppm x D)m.s.e. *3, Data Interface: RS232C/SD card/Mini USB,  BLUETOOTH, Absolute Encoding Systems & 120000 POINTS  INTERNAL  MEMORY Points, 4-32GB Memory SD Card External Memory, COGO Program, GRAPHICAL DISPLAY, Distance Measuring Range of 5Km. with Single Prism, along with following accessories:-

Model

RTS-100 SERIES WinCE7

Origin

Indian

Make/ OEM

VERTEX

Brochure


  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

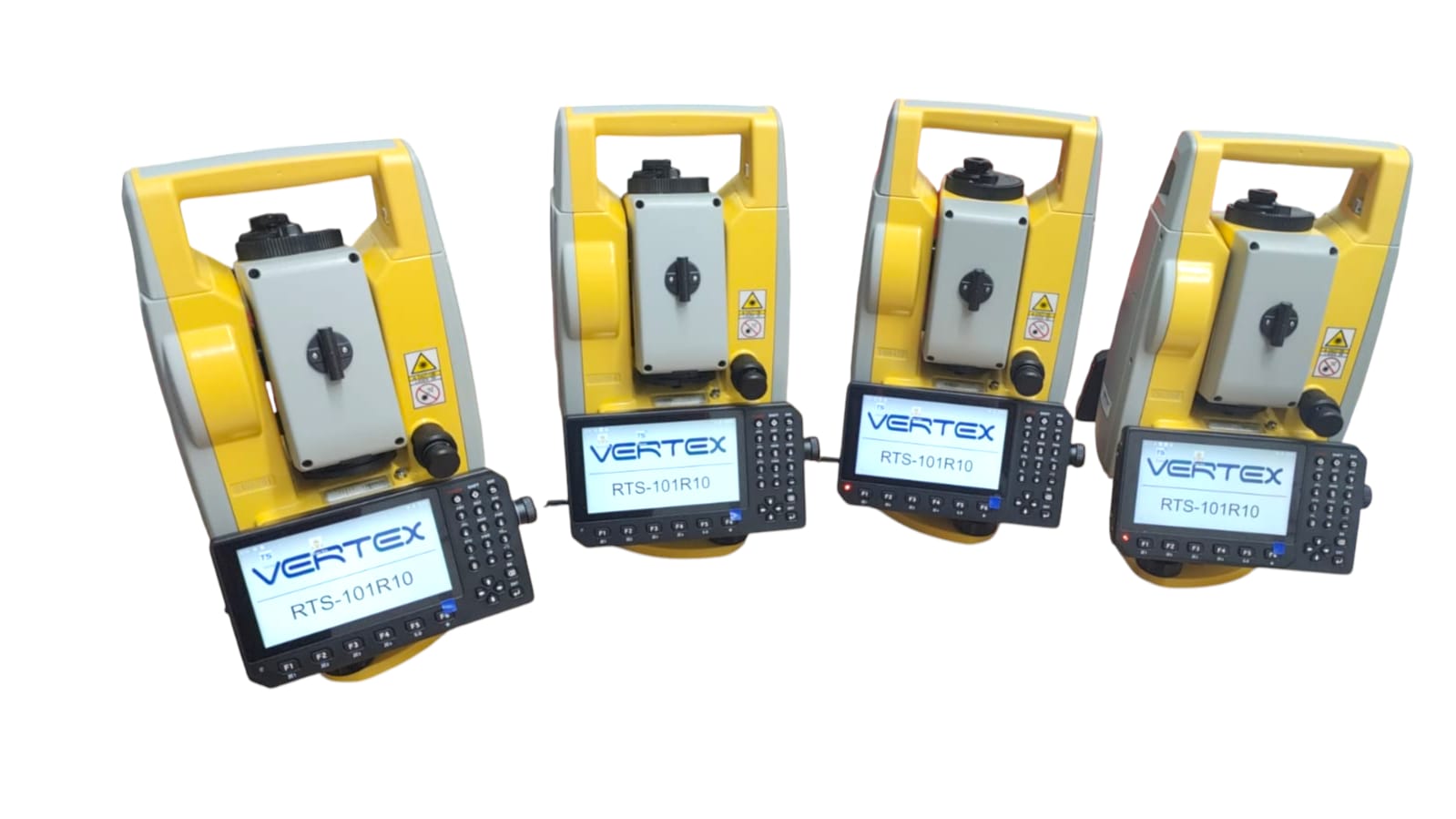

REFLECTOR LESS (VERTEX BRAND) TOTAL STATION RTS-101R10

Operating System – WinCE 7.0 Colour Touch Screen

(1000m* Conditional REFLECTORLESS)

Having 30x Magnification, 0.1″ Least Count and 1″ Accuracy, Dual Axis Compensator, 32 BIT CPU, DISPLAY: Size – 3.5″, 640*480, Dual Display – Color TFT LCD touch screen with LED backlit alphanumeric keyboard,  Measuring Time: Fine – 0.3s, Tracking – 01.s, Atmospheric Correction: T-P Sensor, Auto Detect and Correct, Prism Constant: Manual Input, Auto Correction, Accuracy: Prism Mode – ±(1mm+1.5ppm x D)m.s.e. *3, Non-Prism Mode – 1-100m:±(2mm+2ppm x D)m.s.e. *3; 100-600m:±(3mm+3ppm x D)m.s.e. 3; 600m-1000m: ±(5mm+3ppm x D)m.s.e. *3, Data Interface: RS232C/SD card/Mini USB,  BLUETOOTH, Absolute Encoding Systems & 120000 POINTS  INTERNAL  MEMORY Points, 4-32GB Memory SD Card External Memory, COGO Program, GRAPHICAL DISPLAY, Distance Measuring Range of 5Km. with Single Prism, along with following accessories:-

Battery Charger (01 No.), Batteries (02 Nos.), Operation Manual (01 No.), Tool Kit (01 No.), Carrying Case (01 No.), Plumbob (01 No.), Data Downloading Cable (01 No.), Data Downloading Software (01 No.), PRISM POLE (01 No.), PRISM with HOLDER & TARGET (01 No.), HEAVY DUTY WOODEN/ALUMINIUM TRIPOD (01 No.)



SPECIFICATIONS

FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew

REVIEWNew
