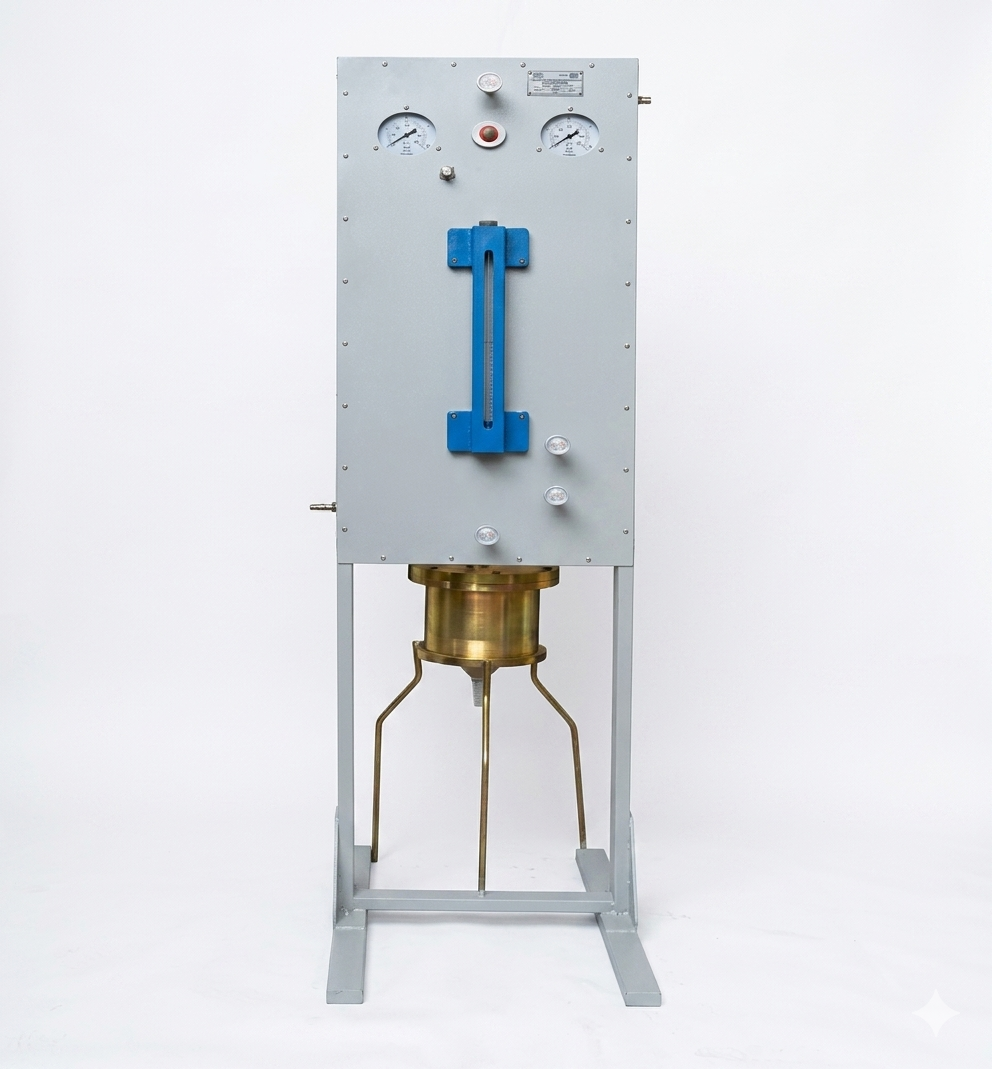

Rock Permeability Test Apparatus VSLIC-R121

short info

This Rock Permeability Test Apparatus should be suitable to determine the coefficient of permeability (laboratory method) of natural building stones. The unit should have the following components and meet the stated technical specification. This equipment shall conform to IS 4348 : 2024.

Standard

IS 4348 : 2024

Model

VSLIC-R121

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Rock Permeability Test Apparatus meets the essential requirements laid down in IS:4348-1973.

It is single panel unit on which are mounted a set of valves, pressure gauge, pressure regulator, brass water reservoir, graduated glass tube etc.

The outlet of the reservoir is connected to the top of the permeability cell. It is made out of non-corrosive material or MS chemically coated for rust protection.

Air-vent valve is provided on the top plate, while at the bottom a funnel is fixed through which passes the percolated water to the measuring bottle.
Cell can accommodate 100 mm dia x 100 mm high specimen.

  • This equipment should be suitable to determine the coefficient of permeability (laboratory method) of natural building stones. The unit should have the following components and meet the stated technical specification. This equipment shall conform to IS 4348 : 2024.
  • Permeability cell (non corrosive material) of 100 mm dia with collar and able to test pertinent dimensions as mentioned in IS code.
  • Top plate and base plate with recess for porous stone.
  • Apparatus shall be capable of withstanding a pressure of atleast 0.7 N/mm2.
  • Suitable reservoir tank (non corrosive) fitted with gauge to hold pressure of atleast 0.7 N/mm2, valves, flow control/pressure regulator, graduated glass tube, air bleeder valve, drain cock etc.,.
  • Three porous stones to fit into the base.
  • Standard accessories (suitable spanner set, flexible pipe, 3 sets of top and bottom porous stones etc.,) shall be provided.


Related Searches

SPECIFICATIONS

Rock Permeability Test Apparatus meets the essential requirements laid down in IS:4348-1973.

It is single panel unit on which are mounted a set of valves, pressure gauge, pressure regulator, brass water reservoir, graduated glass tube etc.

The outlet of the reservoir is connected to the top of the permeability cell. It is made out of non-corrosive material or MS chemically coated for rust protection.

Air-vent valve is provided on the top plate, while at the bottom a funnel is fixed through which passes the percolated water to the measuring bottle.
Cell can accommodate 100 mm dia x 100 mm high specimen.

  • This equipment should be suitable to determine the coefficient of permeability (laboratory method) of natural building stones. The unit should have the following components and meet the stated technical specification. This equipment shall conform to IS 4348 : 2024.
  • Permeability cell (non corrosive material) of 100 mm dia with collar and able to test pertinent dimensions as mentioned in IS code.
  • Top plate and base plate with recess for porous stone.
  • Apparatus shall be capable of withstanding a pressure of atleast 0.7 N/mm2.
  • Suitable reservoir tank (non corrosive) fitted with gauge to hold pressure of atleast 0.7 N/mm2, valves, flow control/pressure regulator, graduated glass tube, air bleeder valve, drain cock etc.,.
  • Three porous stones to fit into the base.
  • Standard accessories (suitable spanner set, flexible pipe, 3 sets of top and bottom porous stones etc.,) shall be provided.

FEATURES

Rock Permeability Test Apparatus meets the essential requirements laid down in IS:4348-1973.

It is single panel unit on which are mounted a set of valves, pressure gauge, pressure regulator, brass water reservoir, graduated glass tube etc.

The outlet of the reservoir is connected to the top of the permeability cell. It is made out of non-corrosive material or MS chemically coated for rust protection.

Air-vent valve is provided on the top plate, while at the bottom a funnel is fixed through which passes the percolated water to the measuring bottle.
Cell can accommodate 100 mm dia x 100 mm high specimen.

  • This equipment should be suitable to determine the coefficient of permeability (laboratory method) of natural building stones. The unit should have the following components and meet the stated technical specification. This equipment shall conform to IS 4348 : 2024.
  • Permeability cell (non corrosive material) of 100 mm dia with collar and able to test pertinent dimensions as mentioned in IS code.
  • Top plate and base plate with recess for porous stone.
  • Apparatus shall be capable of withstanding a pressure of atleast 0.7 N/mm2.
  • Suitable reservoir tank (non corrosive) fitted with gauge to hold pressure of atleast 0.7 N/mm2, valves, flow control/pressure regulator, graduated glass tube, air bleeder valve, drain cock etc.,.
  • Three porous stones to fit into the base.
  • Standard accessories (suitable spanner set, flexible pipe, 3 sets of top and bottom porous stones etc.,) shall be provided.
