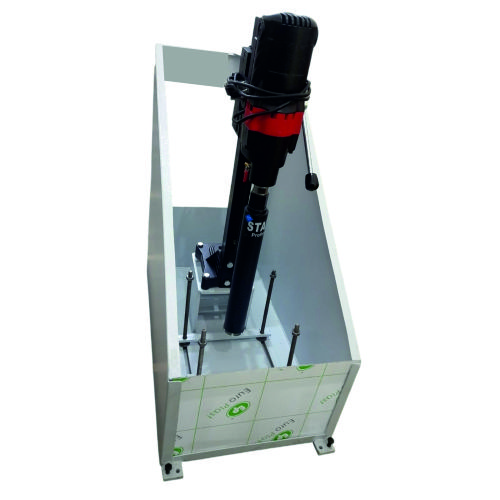

Rock Core Drilling Machine with Core Drilling Bits VSLIC-R103

short info

Compact and mobile, ‘Core-drill’ machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Drive is through a powerful multi speed motor., High-quality core drilling bits for different sample sizes (Ex, Ax, Bx, Nx, 35 mm and 50 mm dia) shall be provided.

The total assembly move on a pillar to adjust the tip height of the bit., Pillar is fixed on to a base with two wheels for site shifting.

Standard

Ex, Ax, Bx, Nx, 35 mm and 50 mm dia

Model

VSLIC-R103

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Compact and mobile, ‘Core-drill’ machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Product Overview

  • Equipment shall be heavy duty, pillar type frame with travel of atleast 600 mm.
  • The equipment shall be easy to operate and handle.
  • It should produce low noise even at high speed.
  • It shall be sturdy that vibration is not transferred to the sample.
  • To be able to align/hold the sample easily with sample clamp device.
  • To be useful for core preparation from regular and irregular samples core size upto core depth of 450 mm.
  • High-quality core drilling bits for different sample sizes (Ex, Ax, Bx, Nx, 35 mm and 50 mm dia) shall be provided.
  • Suitable for vertical (downwards) drilling applications.
  • Power supply preferably single phase, AC supply
  • Standard accessories (suitable spanner set, flexible pipe to provide water feed etc.,) shall be provided.


Related Searches

SPECIFICATIONS

Compact and mobile, ‘Core-drill’ machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Drive is through a powerful multi speed motor.

It can easily cut cores upto 150 mm dia.

The total assembly move on a pillar to adjust the tip height of the bit.

Pillar is fixed on to a base with two wheels for site shifting.

Geared motor moves on a slide and the slide can be rotated through 360o. Travel of the geared motor is approximately 600 mm and the cores of 400-450 mm can be easily taken out in single operation

Power of the Motor : 2500 Watts

Multiple Speeds (3 speeds) : 500,1200,2000 rpm

Power Supply : 230 Volts, 50 Hz AC.

Continuous Running time without damage to bits & barrels : 30 minutes

FEATURES

Compact and mobile, ‘Core-drill’ machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Product Overview

  • Equipment shall be heavy duty, pillar type frame with travel of atleast 600 mm.
  • The equipment shall be easy to operate and handle.
  • It should produce low noise even at high speed.
  • It shall be sturdy that vibration is not transferred to the sample.
  • To be able to align/hold the sample easily with sample clamp device.
  • To be useful for core preparation from regular and irregular samples core size upto core depth of 450 mm.
  • High-quality core drilling bits for different sample sizes (Ex, Ax, Bx, Nx, 35 mm and 50 mm dia) shall be provided.
  • Suitable for vertical (downwards) drilling applications.
  • Power supply preferably single phase, AC supply
  • Standard accessories (suitable spanner set, flexible pipe to provide water feed etc.,) shall be provided.
