Proceq – Pundit Lab Plus Ultrasonic Pulse Velocity Tester Pundit Lab(+)

short info

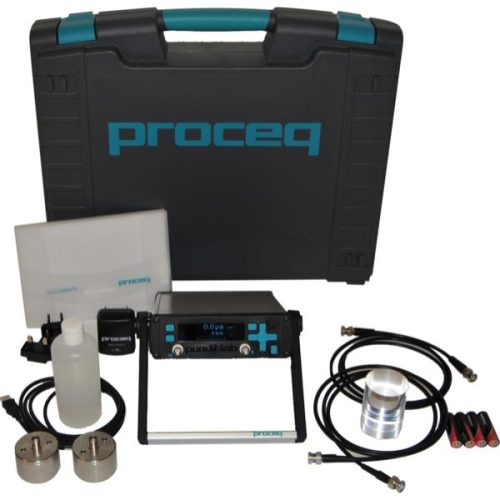

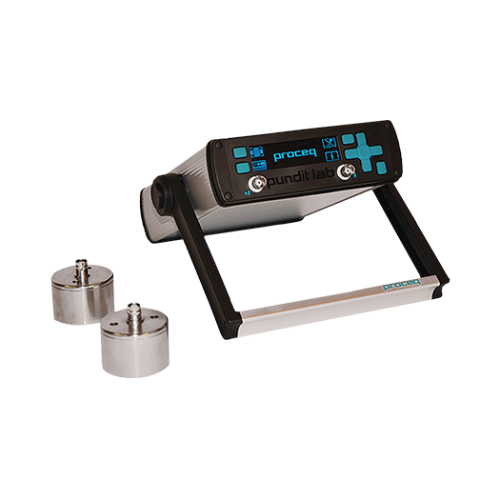

The Proceq – Pundit Lab Plus Ultrasonic Pulse Velocity Tester which is used to examine the quality of concrete. It features online data acquisition, waveform analysis and full remote control of all transmission parameters, along with the traditional transit.

  • Measuring pulse velocity
  • Measuring compressive strength(Pundit Lab+)
  • Waveform display for manual triggering
  • Data review list(Pundit Lab+)
  • A complete range from 24 kHz up to 500 kHz for various applications including:
  • Tx frequency, calibration, pulse width, temperature correction
  • Rx gain, units, receiver gain, transmission mode

Standard

EN12504-4, ASTM C 597-02, BS 1881 Part 203, ISO1920-7:2004, IS1311, CECS21

Model

Pundit Lab(+)

Origin

Swizerland

Make/ OEM

PROCEQ

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New

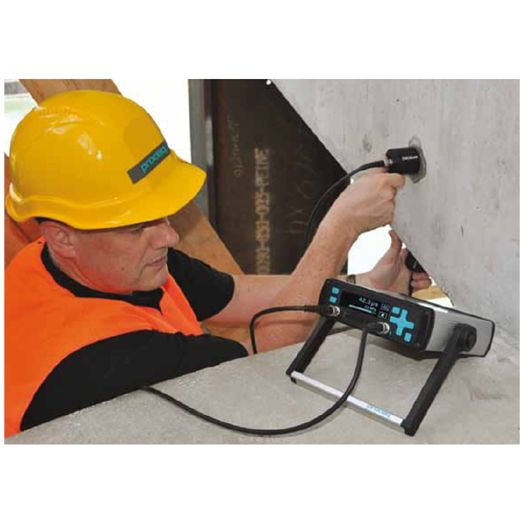

    WORKING PRINCIPAL

OVERVIEW

The Proceq – Pundit Lab Plus Ultrasonic Pulse Velocity Tester offers additional features, such as the possibility to estimate compressive strength (also in combination with a rebound hammer value (SONREB method), a real time stamp for all measurements, a review list allowing readings to be checked on site without a computer and an integrated gain stage that makes an external amplifier redundant.

Time and pulse velocity measurement, the ultrasonic test equipment Pundit Lab offers path length measurement, perpendicular crack depth measurement and surface velocity measurement. Optimized pulse shaping gives greater transmission range at lower voltage levels. This, coupled with automated combination of the transmitter voltage and the receiver gain, ensures an optimum received signal level, guaranteeing accurate and stable measurements. An integrated waveform display allows manual triggering of the received waveform.

Specification

Common Features Pundit Lab Pundit Lab+
Transit time range 0.1-9999 µs 0.1-9999 µs
Resolution 0.1 µs 0.1 µs
Energising pulse 125 V, 250 V, 350 V, 500 V, AUTO 125 V, 250 V, 350 V, 500 V, AUTO
Tx frequency range 24-500 kHz 24-500 kHz
Transit time Yes Yes
Pulse velocity Yes Yes
Path length Yes Yes
Surface velocity Yes Yes
Crack depth Yes Yes
Memory > 500 readings > 500 readings
Power supply Mains/Battery(>20h)/USB Mains/Battery(>20h)/USB
IP Classification Ip42 Ip42
New Features Pundit Lab Pundit Lab
Integrated gain stage 1x, 10x, 100x 1x, 2x, 5x, 10x, 20x, 50x,100x, 200x , 500x, 1000x
Compressive strength – Yes
SONREB method (Ultrasonic plus rebound hammer for compressive strength) – Yes
Time stamp for measurements – Yes
Measurement review list on instrument – Yes
