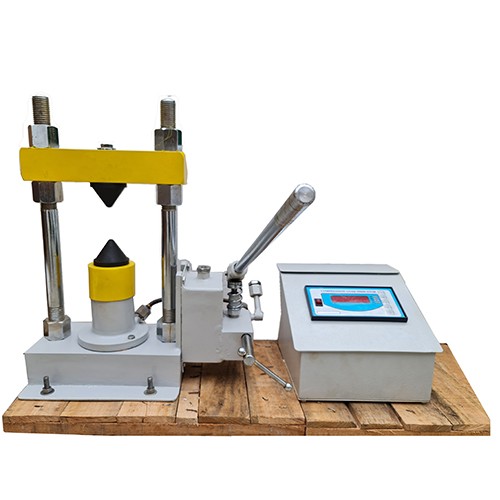

Digital Point Load Index Test Apparatus 100kN VSLIC-R110

short info

  • This equipment should be suitable to determine diametral and axial point load strength index of rock cores, cut blocks or irregular lumps, which may be tested without any treatment. (laboratory or in the field at the drilling site). The unit should have the following components and meet the stated technical specification. This equipment shall conform to IS 8764 : 2019.
  • Shall be hand operated to suit both for field and laboratory testing.
  • Maximum operating load – 100 kN.
  • Conical loading platens as per IS : 8764.
  • The frame shall have adequate adjustment to align perfectly the loading axis passing through the centre of the bearing plates and loading platens at all the positions of the ram of the hydraulic jack.
  • Digital indicator with sensor 100 kN capacity with a least count of 0.01 kN.
  • Safety guard shall be provided

Standard

IS 8764 : 2019

Model

VSLIC-R110

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Compliance Standards: ASTM D5731, IS:8764

Introduction Point Load Index Tester, is used for determining the Diameter al Point Load Strength Index of rock cores and irregular lumps, which can be tested without any treatment. Used for testing rock, aggregate and core samples in their original shape. The Point Load Test is primarily an Index Test for strength classification of rock materials. Salient Features

  1. Rock core specimens can be tested without any preparation.
  2. The results of the test may also be used to predict the uniaxial compressive strength of rock.
  3. With this instrument, a wide range of core sizes can be tested.
  4. The frame has adequate adjustments to align perfectly the loading axis passing through the center of the bearing plates and loading.
  5. This instrument is mainly intended for field measurements on rock specimen, but it can also be used in the laboratory.
  6. This is a portable instrument and is useful in the field also. Uniaxial compressive strength for rock specimen can also be predicted approximately.

Construction Details

  1. The instrument comprises of a three pillar type load frame on the base of which, is fixed a 10 Ton capacity hydraulic jack at the center.
  2. A conical platen at the top of jack.
  3. The other conical platen is fixed to the top plate of the frame at its center, The distance between two conical platen is fixed to the top plate of the frame at its center.
  4. The distance between two conical platen is adjustable by vertical movement of the upper plate of the load frame.
  5. Loading jack with Digital pressure gauges of 0‑100 KN X 0.01 KN Resolution
  6. Maximum sample size : 4″ (101.6 mm)


Related Searches

SPECIFICATIONS

Compliance Standards: ASTM D5731, IS:8764

Introduction Point Load Index Tester, is used for determining the Diameter al Point Load Strength Index of rock cores and irregular lumps, which can be tested without any treatment. Used for testing rock, aggregate and core samples in their original shape. The Point Load Test is primarily an Index Test for strength classification of rock materials. Salient Features

  1. Rock core specimens can be tested without any preparation.
  2. The results of the test may also be used to predict the uniaxial compressive strength of rock.
  3. With this instrument, a wide range of core sizes can be tested.
  4. The frame has adequate adjustments to align perfectly the loading axis passing through the center of the bearing plates and loading.
  5. This instrument is mainly intended for field measurements on rock specimen, but it can also be used in the laboratory.
  6. This is a portable instrument and is useful in the field also. Uniaxial compressive strength for rock specimen can also be predicted approximately.

Construction Details

  1. The instrument comprises of a three pillar type load frame on the base of which, is fixed a 10 Ton capacity hydraulic jack at the center.
  2. A conical platen at the top of jack.
  3. The other conical platen is fixed to the top plate of the frame at its center, The distance between two conical platen is fixed to the top plate of the frame at its center.
  4. The distance between two conical platen is adjustable by vertical movement of the upper plate of the load frame.
  5. Loading jack with Digital pressure gauges of 0‑100 KN X 0.01 KN Resolution
  6. Maximum sample size : 4″ (101.6 mm)

FEATURES

Compliance Standards: ASTM D5731, IS:8764

Introduction Point Load Index Tester, is used for determining the Diameter al Point Load Strength Index of rock cores and irregular lumps, which can be tested without any treatment. Used for testing rock, aggregate and core samples in their original shape. The Point Load Test is primarily an Index Test for strength classification of rock materials. Salient Features

  1. Rock core specimens can be tested without any preparation.
  2. The results of the test may also be used to predict the uniaxial compressive strength of rock.
  3. With this instrument, a wide range of core sizes can be tested.
  4. The frame has adequate adjustments to align perfectly the loading axis passing through the center of the bearing plates and loading.
  5. This instrument is mainly intended for field measurements on rock specimen, but it can also be used in the laboratory.
  6. This is a portable instrument and is useful in the field also. Uniaxial compressive strength for rock specimen can also be predicted approximately.

Construction Details

  1. The instrument comprises of a three pillar type load frame on the base of which, is fixed a 10 Ton capacity hydraulic jack at the center.
  2. A conical platen at the top of jack.
  3. The other conical platen is fixed to the top plate of the frame at its center, The distance between two conical platen is fixed to the top plate of the frame at its center.
  4. The distance between two conical platen is adjustable by vertical movement of the upper plate of the load frame.
  5. Loading jack with Digital pressure gauges of 0‑100 KN X 0.01 KN Resolution
  6. Maximum sample size : 4″ (101.6 mm)
