Pitot Tube Apparatus VSLIC-FM12

short info

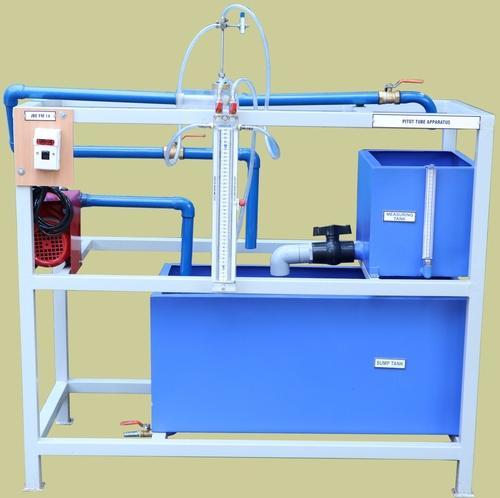

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A Pitot tube of standard design made of copper/Stainless Steel is supplied and is fixed below a vernier scale. The vernier scale is capable to measure the position of Pitot tube in transparent pipe section. The pipe has a flow control valve to regulate the flow.

Model

VSLIC-FM12

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A Pitot tube of standard design made of copper/Stainless Steel is supplied and is fixed below a vernier scale. The vernier scale is capable to measure the position of Pitot tube in transparent pipe section. The pipe has a flow control valve to regulate the flow.

Learning Objectives/Experiments:

  • To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot Tube.
  • To plot velocity profile across the cross section of pipe

Required for Operation:

  • Water supply Tap water connection
  • Floor Area with Drain facility

Technical Specifications:

  • Pitot Tube: Material Copper/SS of compatible size
  • Hook/Pointer Gauge: With Vernier Scale
  • Test Section: Material Clear Acrylic, compatible to 1” Dia. Pipe
  • The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure

Control Panel:

  • Standard make On/Off switch, Mains Indicator etc.
