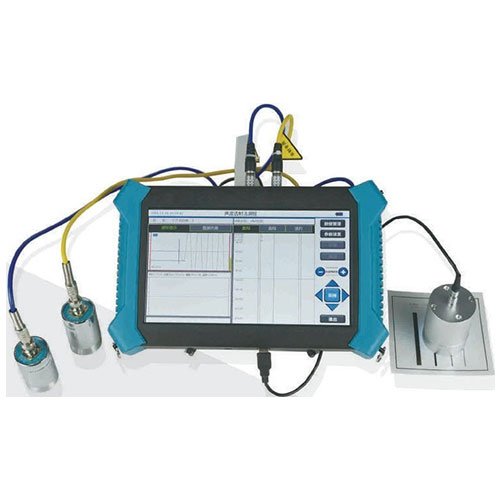

Non-Metalic Ultrasonic Detector

quick info

A NON-Metallic Ultrasonic Detector or Ultrasonic Pulse Velocity, structural concrete compressive strength, crack depth, crack width and defect detection, ultrasonic transmission method for detecting pile and continuous wall integrity, It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defects measurement, cracks sounding and width measurement.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

GTJ-U910/U920

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

get a quote

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

GTJ-U910/U920 Non-Metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection, ultrasonic transmission method for detecting pile and continuous wall integrity, It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defects measurement, cracks sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test mechanical properties of non-metallic materials such as rock mass and concrete.

NON-Metallic Ultrasonic Detector Features:

  • New upgraded wireless cloud transmission function.
  • Five functions of measuring pile, measuring strength, measuring defect sounding depth and width measuring.
  • Stable performance and powerful function, it is the best choice for users with diverse need such as engineering inspection, teaching and scientific research.
  • Semi-transparent, high-brightness, TFT color LCD screen.
  • Full touch screen operation, simple and convenient, stable and reliable.
  • Large memory capacity and working time of more than 10 hours.

SPECIFICATIONS

Technical Parameters:

Model GTJ-U920 Non-Metal Ultrasonic Detector
Main control unit Built-in A8 industrial control board
Display 10.1 inch, high brightness, TFT color LCD capacitive screen
Mode of operation Touch screen
Storage method Built-in electronic hard disk (≥8GB) + large capacity U disk
Acquisition mode Single and dual channel manual point-by-point acquisition
Number of channels 1 transmit + 2 receive
Trigger mode signal trigger
Sampling period (μs) 0.05~409.6 multiple options
Sound time accuracy (μs) 0.05
Sound time range (μs) ±1677700
Seam width function Measuring range: 0~10mm; measuring accuracy: 0.01mm

Connection method: wifi
Dynamic range (dB) 146
Bandwidth (kHz) 1~500
Receive sensitivity (μV) ≤10
Gain accuracy (dB) 0.5
Transmitting voltage (V) 65, 250, 500, 1000 four adjustable
Communication interface USB, Bluetooth, wifi
Working time (h) ≥8
Power supply mode Built-in lithium battery

External 220V ~ 16V AC / DC
Working environment Temperature (°C)-10°C~+40°C
Humidity (RH) < 90%
Host size (mm) 300 × 200 × 55

FEATURES

  • New upgraded wireless cloud transmission function.
  • Five functions of measuring pile, measuring strength, measuring defect sounding depth and width measuring.
  • Stable performance and powerful function, it is the best choice for users with diverse need such as engineering inspection, teaching and scientific research.
  • Semi-transparent, high-brightness, TFT color LCD screen.
  • Full touch screen operation, simple and convenient, stable and reliable.
  • Large memory capacity and working time of more than 10 hours.
  • It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound
  • U-disk transfers data and supports software upgrading through u-disk.
  • Special analysis software is powerful, data analysis and processing, report generation, and report printing can be completed easily.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
1-500
