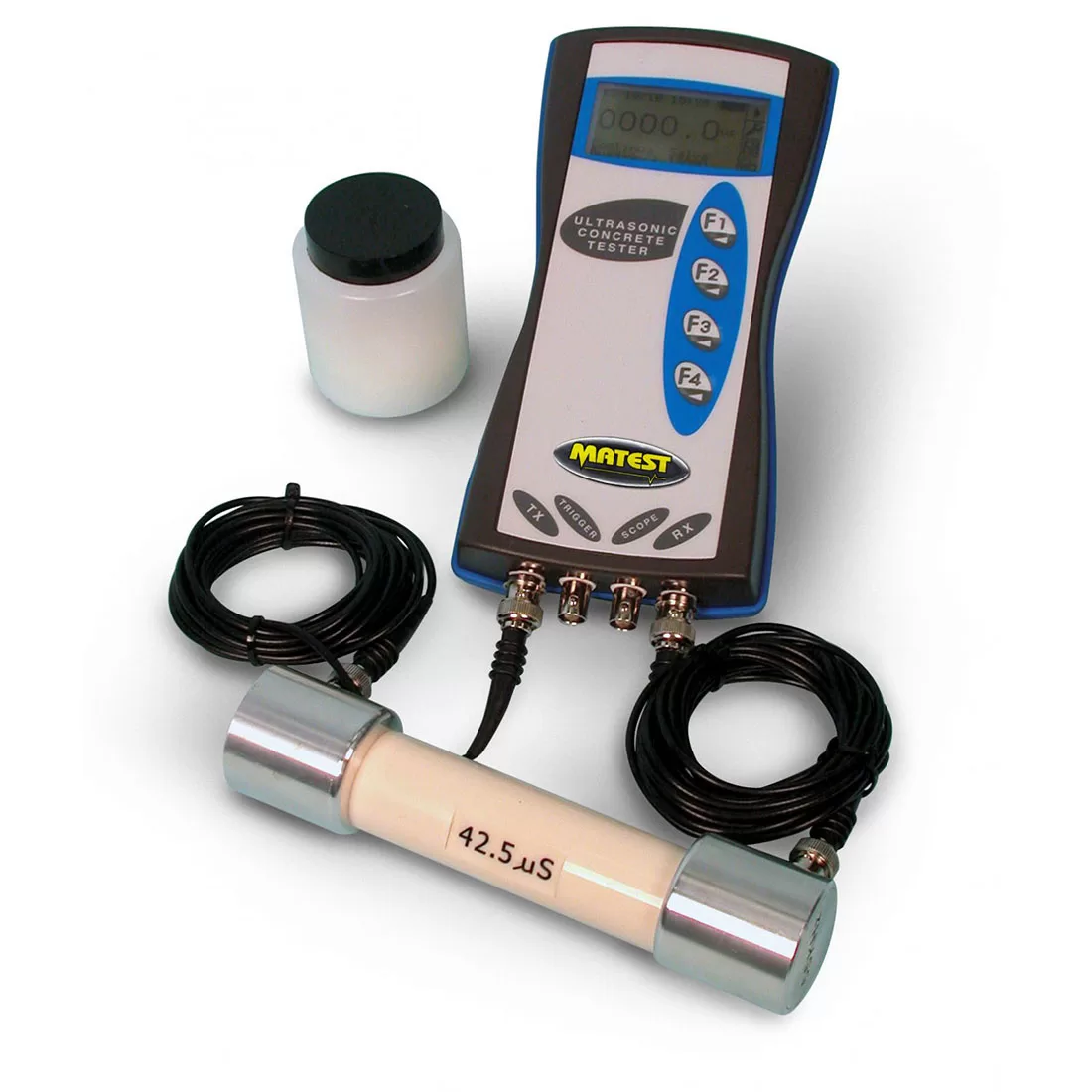

Matest C369N Ultrasonic Pulse Velocity Tester C369N

short info

Matest C369N Ultrasonic Pulse Velocity Tester it is possible to have indicative data of the strength of the concrete.

  • Measuring range: 0 – 3000 µs – accuracy +/- 0,1 µs
  • Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000V
  • Measurement of the required time by the ultrasonic pulse to go through the tested material.
  • Single or continuous acquisition mode with automatic or manual saving.
  • Zero calibration with depuration of the time for the pulse to go through the probes.
  • Calibration of a defined time value.
  • Capacity of data acquisition, processing and filing of the test data up to 30.000 samples.
  • Interface mini USB for PC connection.
  • Two outlets for connection to the oscilloscope.
  • Languages: English, French, German, Spanish, Italian.
  • The use of the instrument is made easy because it is based on the user-friendly system.

Standard

EN 12504 PART. 4, ASTM C597, BS 1881:203, NF P18-418

Model

C369N

Origin

Italy

Make/ OEM

MATEST

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The instrument gives data concerning the homogeneity of the concrete, by generating pulses of sound into the concrete and measuring the time the sound to travel from the transmitter probe to the receiver probe through the material.

The Matest C369N Ultrasonic Pulse Velocity Tester is a device used for non-destructive testing of concrete and other construction materials to assess their quality and integrity. It measures the speed at which ultrasonic pulses travel through these materials, providing valuable information about their structural health. Here are some of the key features of the MATEST Ultrasonic Pulse Velocity Tester:

Furthermore it is possible to have indicative data of the strength of the concrete.

  • Measuring range: 0 – 3000 µs – accuracy +/- 0,1 µs
  • Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000V
  • Measurement of the required time by the ultrasonic pulse to go through the tested material.
  • Single or continuous acquisition mode with automatic or manual saving.
  • Zero calibration with depuration of the time for the pulse to go through the probes.
  • Calibration of a defined time value.
  • Capacity of data acquisition, processing and filing of the test data up to 30.000 samples.
  • Interface mini USB for PC connection.
  • Two outlets for connection to the oscilloscope.
  • Languages: English, French, German, Spanish, Italian.
  • The use of the instrument is made easy because it is based on the user-friendly system.

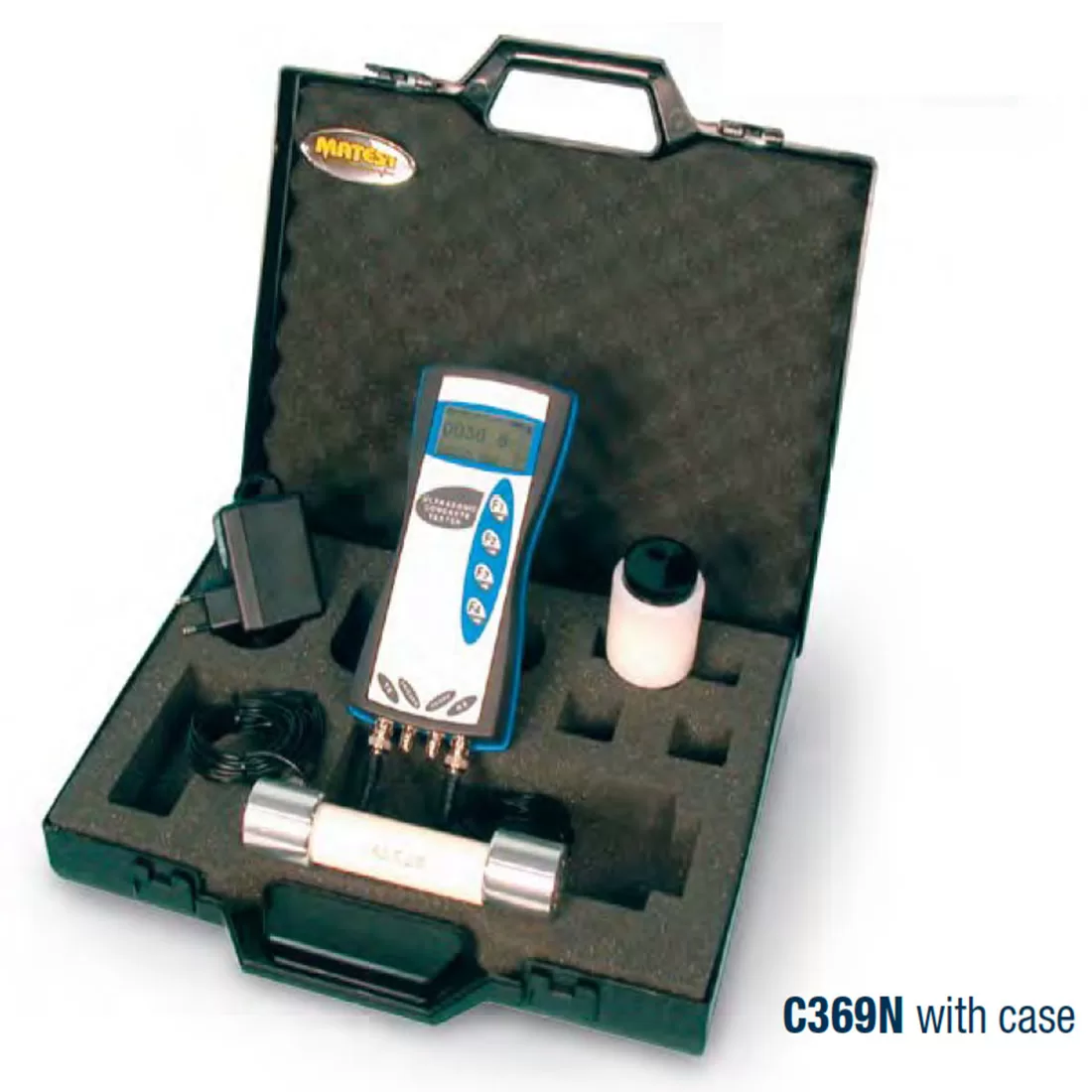

The standard appliance includes:

  • The instrument in basic configuration in a practical palmer container.
  • Two 55kHz probes with connection cables.
  • Calibrating cylinder and contact paste.
  • Battery rechargeable pack NiMh 4,8V > 2000m/A with low battery condition alarm.
  • Anti shock case holding the unit and the accessories.
  • External feeder 230V and battery charger 12V 500m/A.

Case dimensions: 400x340x110 mm
Weight: 2 kg approx.


Related Searches

SPECIFICATIONS

Matest C369N Ultrasonic Pulse Velocity Tester Technical Specification

The Matest C369N Ultrasonic Pulse Velocity Tester gives data concerning the homogeneity of the concrete, by generating pulses of sound into the concrete and measuring the time the sound to travel from the transmitter probe to the receiver probe through the material. Furthermore it is possible to have indicative data of the strength of the concrete.

  • Measuring range: 0 – 3000 µs – accuracy +/- 0,1 µs
  • Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000V
  • Measurement of the required time by the ultrasonic pulse to go through the tested material.
  • Single or continuous acquisition mode with automatic or manual saving.
  • Zero calibration with depuration of the time for the pulse to go through the probes.
  • Calibration of a defined time value.
  • Capacity of data acquisition, processing and filing of the test data up to 30.000 samples.
  • Interface mini USB for PC connection.
  • Two outlets for connection to the oscilloscope.
  • Languages: English, French, German, Spanish, Italian.
  • The use of the instrument is made easy because it is based on the user-friendly system.

The standard appliance includes:

  • The instrument in basic configuration in a practical palmer container.
  • Two 55kHz probes with connection cables.
  • Calibrating cylinder and contact paste.
  • Battery rechargeable pack NiMh 4,8V > 2000m/A with low battery condition alarm.
  • Anti shock case holding the unit and the accessories.
  • External feeder 230V and battery charger 12V 500m/A.

FEATURES

The Matest C369N Ultrasonic Pulse Velocity Tester is a device used for non-destructive testing of concrete and other construction materials to assess their quality and integrity. It measures the speed at which ultrasonic pulses travel through these materials, providing valuable information about their structural health. Here are some of the key features of the MATEST Ultrasonic Pulse Velocity Tester:

  1. Ultrasonic Pulse Velocity Measurement: The device uses ultrasonic waves to measure the velocity of pulses as they travel through the material being tested. This measurement helps in assessing the material’s density, uniformity, and potential defects.
  2. High Precision: The MATEST tester is designed for high-precision measurements, ensuring accurate and reliable results.
  3. Dual-Channel Capability: Many models of the MATEST tester come equipped with dual-channel capabilities, allowing for simultaneous testing at multiple points. This feature can save time and increase efficiency.
  4. Large Display: The device typically features a large, easy-to-read digital display that shows test results in real-time. This display often includes information such as pulse velocity, waveforms, and other relevant data.
  5. Data Storage: Some models have built-in data storage capabilities, allowing users to save test results for future reference or analysis. This can be particularly useful for quality control and documentation purposes.
  6. Waveform Analysis: The tester may offer waveform analysis tools, enabling users to assess the quality of the received signals and identify potential issues within the material.
  7. Portable Design: Many MATEST Ultrasonic Pulse Velocity Testers are designed to be portable and lightweight, making them easy to carry to various job sites for on-site testing.
  8. Battery Powered: These testers are often powered by rechargeable batteries, ensuring that they can be used in locations without access to electrical outlets.
  9. User-Friendly Interface: The device typically features a user-friendly interface with intuitive controls, making it easy for operators to perform tests and access results.
  10. Optional Accessories: Depending on the model, optional accessories such as transducers, extension cables, and specialized software may be available to enhance the capabilities and versatility of the tester.
  11. Robust Construction: MATEST testers are usually built to withstand the rigors of construction and fieldwork, with durable materials and protective casings.
  12. Compliance with Standards: The MATEST Ultrasonic Pulse Velocity Tester is often designed to comply with relevant industry standards and specifications, ensuring that test results are accurate and reliable for engineering and construction applications.

These features make the MATEST Ultrasonic Pulse Velocity Tester a valuable tool for assessing the quality and integrity of construction materials, helping to ensure the safety and durability of structures.
