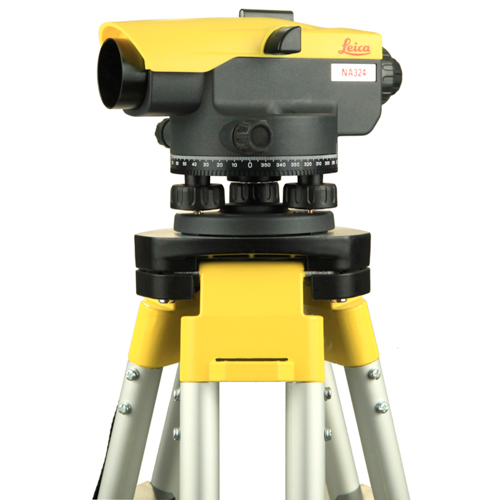

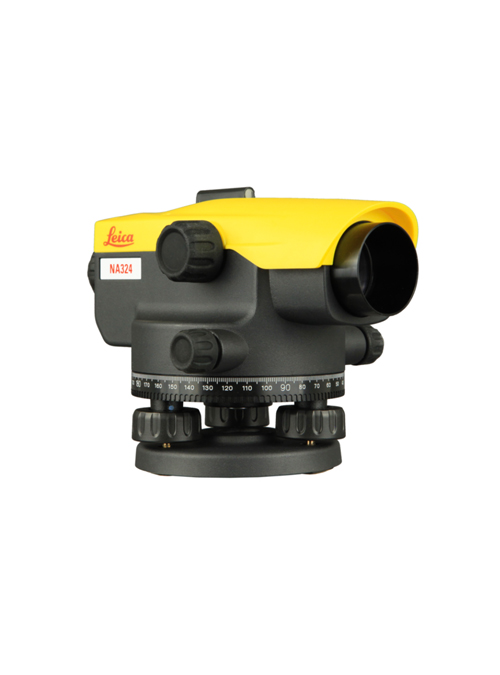

Leica NA 324 Auto Level ! Surveyors Optical Level Leica NA324

short info

The Leica NA 324 Auto Level ! Surveyors Optical level has been developed for professionals who are looking for the highest quality results day by day.

Thanks to the ergonomic design, NA 300 Series levels are convenient to operate. Add in the simple and easy handling of these levels, and you have the perfect partner on any job site.

  • Leveling Accuracy ± 2.0mm (ISO 17123-2 certified)
  • Telescope Magnification 24x
  • Minimum focus distance: < 1m
  • IP54 dust and splash water protected
  • Distinctive design and proven technology, inside and out
  • Protected shape for increased ergonomic handling while ensuring the highest quality results
  • Simple handling for quick and accurate measurements for levelling needs
  • Manufactured for the most rugged sites and the harshest conditions

Standard

ISO 17123-2 certified

Model

Leica NA324

Origin

Indian

Make/ OEM

LEICA

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Key Features of Leica NA 324 Auto Level ! Surveyors Optical Level

Professionals face many obstructions on site. Whatever the levelling challenge, Leica NA324 surveyors levels overcome. Rely on the known expertise of Leica Geosystems for the best quality and performance. On your terms, on your site, Leica Geosystems and the Leica NA 324 Optical Levels are your trusted partners for accurate measurements every time.

UNIQUE DESIGN
Whether you’re facing basic demands or you need more support, the unique design of the Leica NA300 Series of automatic (dumpy) levels can meet you wherever you are in the building and construction field. With a better protected shape, these rugged levels offer increased ergonomic handling while ensuring you receive the highest quality results at the best price value.

ACCURATE
Leica NA324 auto levels have been engineered for daily leveling tasks. Whatever the need, these levels measure with the highest precision and accuracy. These automatic (optical) levels provide the highest in both while being ergonomic in their handling and rugged for daily use in the harshest conditions.

SIMPLE
A perfectly designed mirror makes it extremely easy to adjust the horizontal level with the highest possible accuracy and confidence. The Leica NA324 optical levels – along with all our automatic (optical) levels – are made for everyday use for any site.

PROTECTED
Leica Geosystems offers unbeaten service with all of its NA Series levels. The IP54 standard ensures the highest quality measurements even in the most challenging environments.


Related Searches

SPECIFICATIONS

Specifications of Leica NA 324 Automatic Level
Standard deviation for 1 km double levelling ±2.0mm (ISO 17123-2 certified)
Telescope
Telescope image Upright
Magnification 24x
Objective aperture 36mm
Shortest target distance from instr. axis < 1.0m
Field of view at 100 m < 2.1m
Multiplication factor 100
Additive constant 0
Compensator
Working range ± 15′
Setting accuracy (standard deviation) <0.5″
Sensitivity 8’/2 mm
Horizontal Circle
Graduation 360°
Graduation interval 1°
Weight (net) 1.5 kg
Operating temperature range –20° C to +40° C
Protection class IP54 dust and splash water protected

FEATURES

The Leica NA324 Automatic Level is a precision surveying instrument designed for various leveling and height measurement tasks. Here are some of its key features:

1. Automatic Compensator:

  • The NA324 is equipped with a reliable automatic compensator that ensures the instrument remains level, even when the base is not perfectly flat. This feature simplifies and speeds up the leveling process.

2. Magnification and Clear Optics:

  • It offers high-quality optics with clear and bright images, making it easier to read staff readings. The magnification factor allows for precise measurements.

3. Robust and Durable Construction:

  • Leica instruments are known for their durability, and the NA324 is no exception. It is built to withstand tough working conditions, making it suitable for both outdoor and indoor use.

4. Water and Dust Resistance:

  • The instrument often comes with an IP54 rating, making it resistant to water splashes and dust. This feature ensures the NA324 can handle various environmental conditions.

5. Large, Easy-to-Read Circular Bubble:

  • The auto level is equipped with a circular bubble level, making it simple to achieve rough leveling before fine-tuning with the leveling screws.

6. Horizontal Circle with Graduations:

  • It typically has a horizontal circle with precise graduations, allowing for accurate horizontal angle measurements.

7. High-Quality Optics with Crosshairs:

  • The optics include crosshairs that help users precisely align the instrument with surveying staff or other targets.

8. Magnetically Damped Compensator:

  • The instrument’s compensator is often magnetically damped, which means it reacts quickly to changes in level, reducing the time required for leveling.

9. User-Friendly Design:

  • Leica designs their auto levels to be user-friendly, with intuitive controls and ergonomic features that facilitate comfortable and efficient operation.

10. Optional Accessories: – Leica offers a range of accessories for their auto levels, including telescopic leveling staffs, tripods, and carrying cases, to enhance the functionality and protection of the instrument.

11. Accuracy and Working Range: – The NA324 typically offers a high level of accuracy, and the working range varies depending on the specific model but can extend to several hundred feet or meters.

12. Leveling Screws: – The instrument features leveling screws at its base, allowing for precise adjustments to achieve accurate leveling.

These are some of the notable features of the Leica NA324 Automatic Level. It is a reliable and widely used tool in surveying and construction applications due to its accuracy, durability, and ease of use. Specific features may vary slightly depending on the model and version of the instrument.

PRODUCT VIDEO

WORKING PRINCIPALNew

Question: 1) How to operated Leica NA324 Auto Level?

Answer:

Operating a Leica NA324 Auto Level is relatively straightforward. Auto levels are commonly used in surveying and construction to measure height differences and establish horizontal lines. Here are the basic steps to operate a Leica NA324 Auto Level:

1. Set Up the Auto Level:

  • Find a stable and level surface to set up the instrument. Use a tripod to mount the auto level securely. Ensure that the tripod is stable and properly adjusted.
  • Attach the auto level to the tripod using the threaded connection on the bottom of the instrument.

2. Rough Leveling:

  • Before fine-tuning, perform a rough leveling of the instrument. This can be done by adjusting the tripod legs.
  • Look through the eyepiece and rotate the auto level until the crosshairs in the view are roughly level. This is typically done by turning the instrument on the tripod.

3. Adjust the Focusing:

  • Focus the eyepiece by turning it until the crosshairs appear sharp and clear. You may need to adjust the focus to your eyesight.

4. Fine Leveling:

  • Look through the eyepiece and rotate the instrument again to ensure that the crosshairs are precisely level. Use the leveling screws on the base of the instrument to make fine adjustments until the crosshairs are perfectly horizontal.

5. Take Measurements:

  • Once the auto level is accurately leveled, you can start taking measurements.
  • Sight a staff or leveling rod held by an assistant. Read the staff reading in the crosshair of the auto level. The staff reading will give you the height difference between the instrument and the point on the staff.

6. Record Measurements:

  • Record the staff readings for various points as needed for your survey or construction task.

7. Calculate Elevations:

  • Depending on your project, you may need to calculate elevations based on the staff readings. This can involve using the auto level’s specifications and mathematical formulas.

8. Packing Up:

  • After you have finished using the auto level, carefully detach it from the tripod.
  • Make sure to store the instrument in its protective case to prevent damage during transportation and storage.

Always refer to the user manual specific to your Leica NA324 Auto Level for detailed instructions and specifications. Additionally, consider calibrating and checking the instrument regularly to ensure accurate measurements.

Certainly! Here are some frequently asked questions (FAQs) about the Leica NA324 Auto Level:

1. What is the Leica NA324 Auto Level used for?

  • The Leica NA324 Auto Level is primarily used in surveying and construction to measure height differences and establish horizontal lines. It is a precision instrument for leveling and measuring elevations.

2. How do I set up the Leica NA324 Auto Level?

  • To set up the auto level, mount it securely on a stable tripod and ensure the tripod is level. Roughly level the instrument, then use the leveling screws to fine-tune until the crosshairs are perfectly horizontal. Focus the eyepiece for clear visibility.

3. How do I take measurements with the NA324 Auto Level?

  • Look through the eyepiece and sight a leveling rod held by an assistant. Read the staff reading in the crosshair of the auto level. This reading will give you the height difference between the instrument and the point on the staff.

4. Can I use the Leica NA324 Auto Level in low light conditions?

  • Yes, many auto levels, including the Leica NA324, are equipped with built-in compensators that ensure accurate measurements even in low light conditions. However, for best results, it’s advisable to work in well-lit conditions.

5. How do I care for and maintain my Leica NA324 Auto Level?

  • Store the instrument in its protective case when not in use to prevent damage.
  • Keep the lenses and optics clean to ensure clear visibility.
  • Regularly check and calibrate the instrument to maintain accuracy.
  • Avoid exposing the auto level to extreme temperatures or moisture.

6. What is the working range of the Leica NA324 Auto Level?

  • The working range can vary depending on the model, but typically, it has a working range of several hundred feet or meters. Check the instrument’s specifications for precise details.

7. Can the Leica NA324 Auto Level be used for both horizontal and vertical measurements?

  • The primary function of the auto level is for horizontal leveling and measuring height differences. It is not typically used for precise vertical measurements.

8. How do I calculate elevations using the Leica NA324 Auto Level readings?

  • Elevations can be calculated by subtracting the staff reading from a known benchmark or reference point’s elevation. The instrument’s user manual may provide specific guidance on elevation calculations.

9. Can I use the Leica NA324 Auto Level for outdoor and indoor measurements?

  • Yes, the auto level is suitable for both outdoor and indoor use, depending on your project requirements.

10. Where can I find the user manual for the Leica NA324 Auto Level? – You can typically find the user manual for your Leica NA324 Auto Level on the manufacturer’s website or by contacting the Leica Geosystems customer support.

Always refer to the specific user manual for your model and consult with professionals experienced in surveying and leveling for the most accurate and reliable results.
