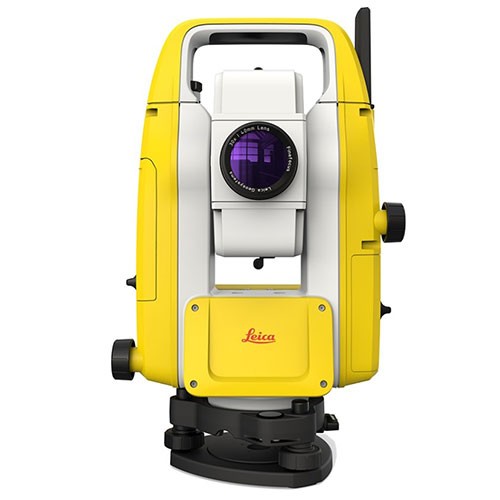

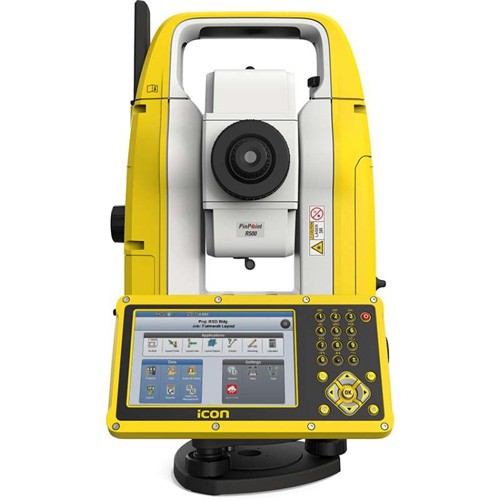

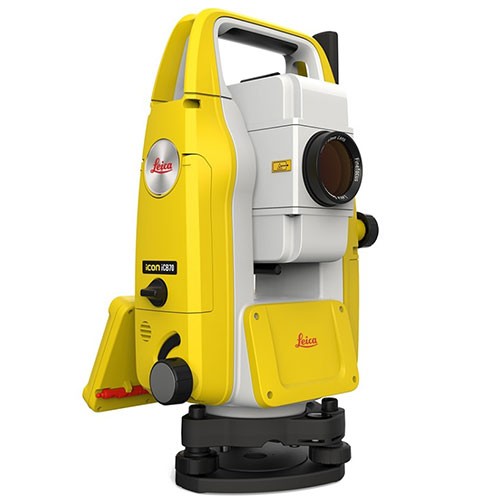

Leica iCON iCB70 Total Station Leica iCON iCB70

short info

The Leica iCON iCB70 Total Station makes you layout more points per day on your construction project with either prism or reflectorless measurements. Featuring mobile data capability, the Leica Total Station iCB70 lets you transfer construction data between the office and the instrument directly, keeping your project progress and plans constantly up to date, assuring that you do not miss any changes in design. Facilitating the move from conventional analogue layout methods to modern digital workflows, the iCB70 helps you to achieve the productivity and accuracies demanded by the building construction industry.

Standard

1″, 2″ & 5″ angular accuracy

Model

Leica iCON iCB70

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The Leica iCON iCB70 Total Station makes you layout more points per day on your construction project with either prism or reflectorless measurements. Featuring mobile data capability, the Leica Total Station iCB70 lets you transfer construction data between the office and the instrument directly, keeping your project progress and plans constantly up to date, assuring that you do not miss any changes in design. Facilitating the move from conventional analogue layout methods to modern digital workflows, the iCB70 helps you to achieve the productivity and accuracies demanded by the building construction industry.

  • 1″, 2″ & 5″ angular accuracy
  • 3500m Single Prism Range
  • R500 EDM – 500m Reflectorless Range
  • 2 GB Memory Approx 100,000 Points Internal Memory
  • 1 GB USB Memory Stick & 1 GB SD Memory Card
  • 5 inch colour touch screen and full numeric keyboard
  • Bluetooth & WLAN
  • FineFocus telescope to simply aim to a defined target
  • Mobile data (GSM / GPRS / UMTS / LTE) as an option
  • Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering

Leica iCON iCB70 R500 Electronic Total Station Scope of delivery

  • Leica iCON iCB 70
  • Battery GEB 331 – 2 NOs.
  • Battery charger GKL 311
  • CPR111, BUILDER mini prism, true-zero offset, incl. bubble
  • GVP729, Carry Case for iCON iCB70
  • Prism with Holder & Target Plate
  • Telescopic Prism Pole
  • Heavy Duty Wooden Tripod


Related Searches

SPECIFICATIONS

Key Feature of Leica iCON iCB70 Reflectorless Total Station

The next generation of Leica iCON total stations further propels the industry to move from traditional analogue layout methods to digitalised construction layout techniques. Now integrated with the well-established and construction-tailored field software Leica iCON build, the iCON iCB70 allow users to easily digitalise and embed BIM workflows in their construction processes. With an all-new premium design, the iCB70 allow construction professionals to layout complex structures, increase accuracy and minimise delays. Featuring a new integrated 4G modem, the iCB70 enables the operator to transfer construction data between the office and the instrument on site.

The Leica iCON iCB70 allows users to:

  • Keep tight project tolerances by measuring to a prism
  • Layout points and lines quickly and accurately, even on complex structures
  • Perform verticality checks on formwork and structures
  • Complete fast and accurate as-built measurements
  • Report volume calculations directly on site
  • Work with digital design data including fully rendered models in IFC format
  • Transfer construction data directly to and from the instrument

Equipped with the construction-tailored and easy-to-use software platform iCON build, the Leica iCON iCB70  construction total station guarantees efficient layout and as-built tasks. Forget about paper plans, tapes, plumb-bobs and chalk-line that cause error-prone layout jobs on your construction site. Leica Geosystems’ new manual construction total stations support you in your no-tapes and no-strings approach to construction layout.

The iCON iCB70 features:

  • iCON build with ‘build plus’ on-board software
  • 5 inch colour touch screen and full numeric keyboard
  • FineFocus telescope to simply aim to a defined target
  • 1″, 2″ and 5″ angular accuracy
  • Prism and reflectorless measurements
  • Bluetooth and WLAN
  • Mobile data (GSM / GPRS / UMTS / LTE) as an option
  • IP66 rating

FEATURES

Leica Total Station iCON Builder 62 Technical Specifications:

Leica iCON iCB70 TS Technical Specification
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical 1″ / 2″ / 5″
  • Display resolution: 1’’ (0.3 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5’’ / 1.5’’
  • Compensator range: +/- 4’ (+/- 0.07 gon)
  • Electronic level resolution: 2“
  • Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range
  • Prism (GPR1, GPH1P): 1.5 m to 3.500 m
  • Reflective Tape 60 mm x 60 mm > 250 m
Non-Prism / Any surface

  • R500
Accuracy / Measurement time Single prism

  • Single: 1 mm + 1.5 ppm (typical 2.4 s)
  • Continuous: 3 mm + 1.5 ppm typical < 0.15 s)
  • Reflective tape 60 mm x 60 mm
  • Single mode: 3 mm + 2 ppm (typical < 2 s)
Non-Prism / Any surface

  • 0 m – 500 m: 2 mm + 2 ppm (typical 3 – 6 s)
Laser dot size
  • At 30 m: 7 mm x 10 mm
  • At 50 m: 8 mm x 20 mm
  • At 100 m: 16 mm x 25 mm
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08 ft to infinity
  • Field of view: 1°30’ / 1.66 gon / 2.7m at 100m
GENERAL
Display and keyboard 5″ (inch), 800 x 480 px WVGA, colour, touch, 22 keys
2nd keyboard Optional
Key illumination
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Power management Exchangeable Lithium-Ion battery

  • Operating time with GEB361
  • Operating time with GEB331
 up to 18 h
up to 9 h
Battery charging time with

  • GKL341 charger for GEB361 / GEB331
  • GKL311 charger for GEB361 / GEB331
 3h 30 min / 3h
6h 30 min / 3h 30 min
External supply voltage

  • Nominal voltage 13.0 V DC & 16 W max
Data storage External supply voltage

  • Internal memory: 2 GB Flash
  • Memory card: SD card 1 GB
  • USB memory stick: 1 GB
Interfaces
  • RS232, USB device
  • Bluetooth®
  • WLAN
  • Mobile Data sidecover: LTE-Modem for internet access
 Optional
Laser plummet (Laserclass 2) Accuracy

  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
Field software iCON build field software iCON build plus (incl. Sketching, Layout Points, Layout Lines, Checks, As-built, Volumes, Cut/Fill, Slopes, Stakeout)
Software options Autodesk BIM360, Leica ConX, Layout Objects, Hidden Point, Tilted Plane, 2Face and Set, Roading, Drill Pattern, MC Calibration
Weight 4.5 kg
Environmental specifications
  • Working temperature range: –20°C to +50°C
  • Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
  • Military Standard 810G
