short info

Supplied complete with two glass plates and lead weight. Set of Six.

Le Chatelier Mould is used for the determination of soundness by expansion method of ordinary and rapid hardening Portland cement, low heat Portland cement, and class ‘A’ Limes.

Standard

IS : 269, 712, 5514, 1727, 2645, 4031 (Part 3), 6932 (Part-IX) BS : 890, 915, 1370, 4027, 4226 & 4248, EN 196-3, IS: 5511

Model

VSLIC-C111

Origin

Indian

Make/ OEM

VERTEX

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Details of apparatus:

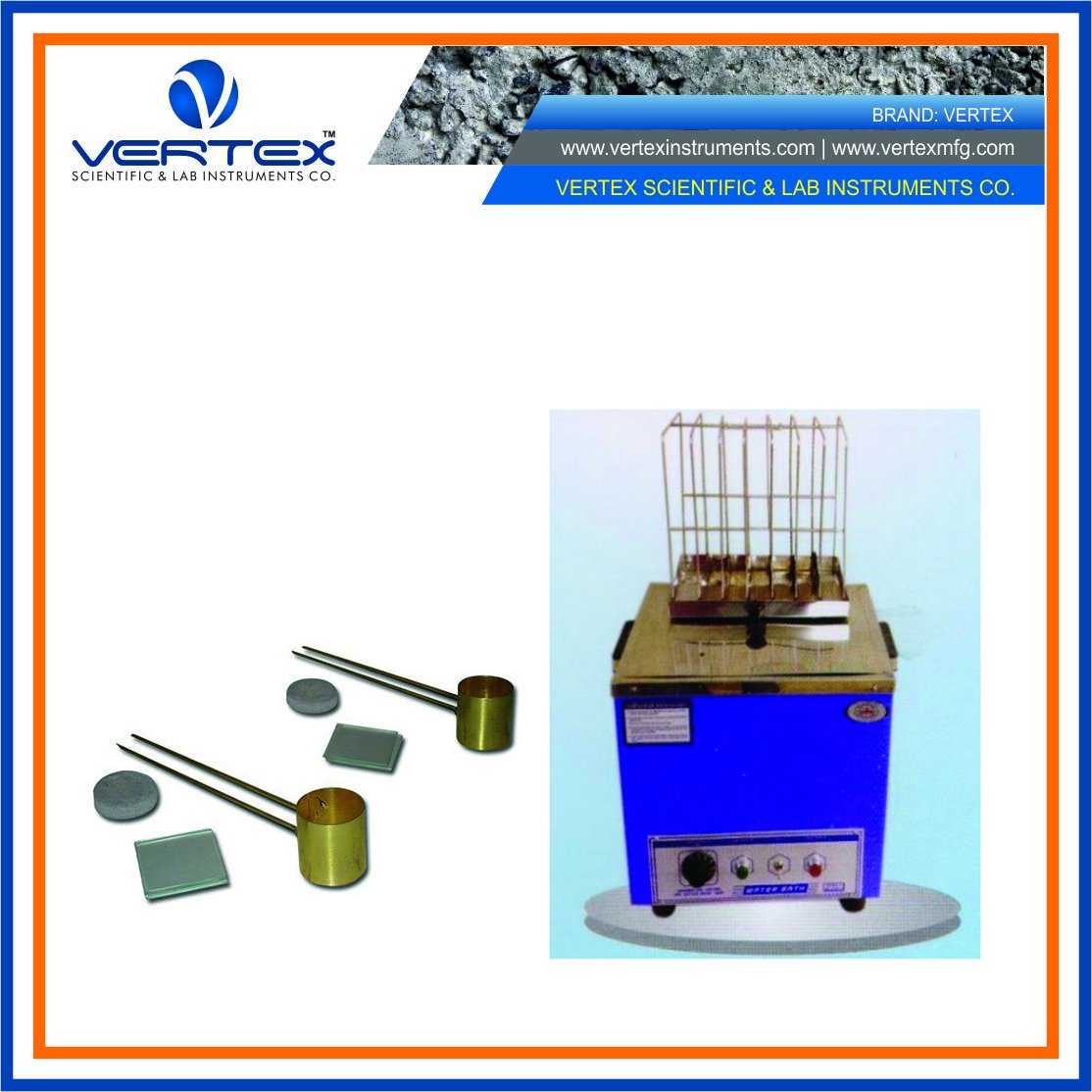

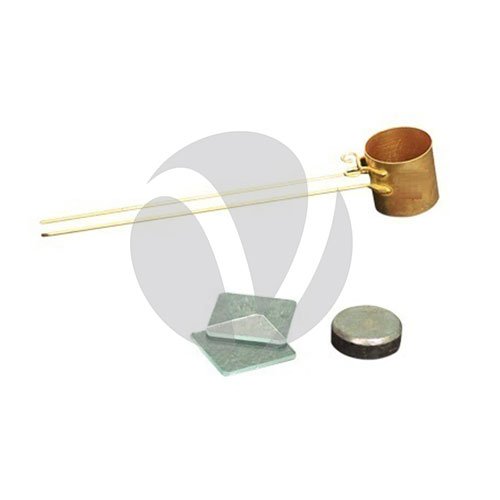

The apparatus consist of a small split cylinder of spring brass metal of 0.5 mm thickness forming a mould of 30 mm internal diameter and 30 mm high. On either side of the split, two indicators are brazed suitably with pointed ends made of 2 mm diameter brass wire in such a way that the distance of these ends to the centre of the cylinder is 165 mm.  Supplied complete with two glass plates and lead weight. Set of Six.

Additional Accessories required for the test :

  1. Waterbath with stand to keep Le-Chatlier Moulds
  2. Gauging Trowel
  3. Electronic Weighing Balance 1 kg X 0.01 gm
  4. Digital Vernier Caliper 0-150mm X 0.02 mm



SPECIFICATIONS

Details of apparatus:

The apparatus consist of a small split cylinder of spring brass metal of 0.5 mm thickness forming a mould of 30 mm internal diameter and 30 mm high. On either side of the split, two indicators are brazed suitably with pointed ends made of 2 mm diameter brass wire in such a way that the distance of these ends to the centre of the cylinder is 165 mm.  Supplied complete with two glass plates and lead weight. Set of Six.

Additional Accessories required for the test :

  1. Waterbath with stand to keep Le-Chatlier Moulds
  2. Gauging Trowel
  3. Electronic Weighing Balance 1 kg X 0.01 gm
  4. Digital Vernier Caliper 0-150mm X 0.02 mm

FEATURES

Details of apparatus:

The apparatus consist of a small split cylinder of spring brass metal of 0.5 mm thickness forming a mould of 30 mm internal diameter and 30 mm high. On either side of the split, two indicators are brazed suitably with pointed ends made of 2 mm diameter brass wire in such a way that the distance of these ends to the centre of the cylinder is 165 mm.  Supplied complete with two glass plates and lead weight. Set of Six.

Additional Accessories required for the test :

  1. Waterbath with stand to keep Le-Chatlier Moulds
  2. Gauging Trowel
  3. Electronic Weighing Balance 1 kg X 0.01 gm
  4. Digital Vernier Caliper 0-150mm X 0.02 mm

PRODUCT VIDEO

WORKING PRINCIPALNew
