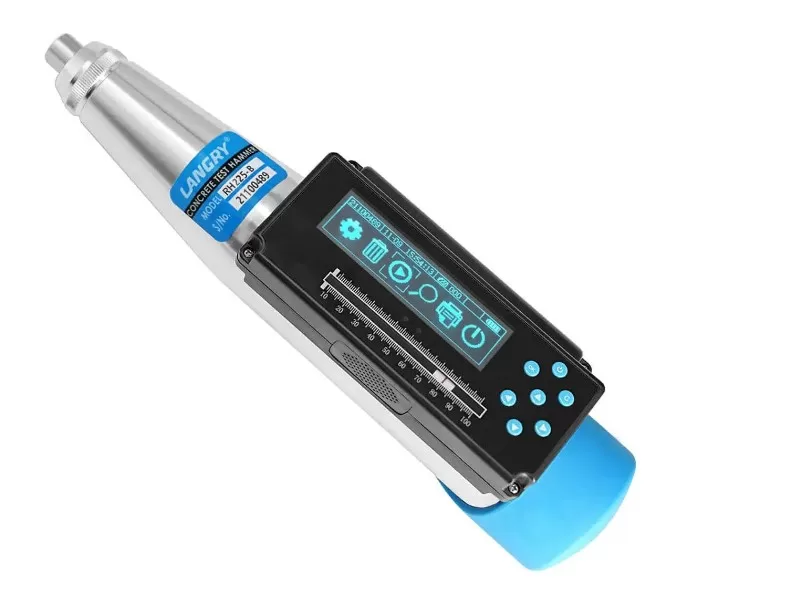

Langry – Digital Rebound Hammer Upgraded RH225-B RH225-B

short info

Langry HT225 UPGRADED MODEL RH225-B digital Rebound Hammer used for testing the compressive strength of ordinary concrete in the range of 10 to 70 N/mm² (1’450 to 10’152 psi) in structural engineering.

It has the functions of rebound sampling, automatic recording, automatic storage, automatic calculation, strength result viewing, field bluetooth printing, background management settings, online upload data and so on. The work efficiency of rebound detection is greatly improved and the labor intensity of testing personnel is reduced.

Standard

IS: 13311(2)-1992 India, ISO/DIS 8045 International, EN 12 504-2 Europe, ENV 206 Europe, BS 1881, part 202 Great Britain, DIN 1048, part 2 Germany, ASTM C 805 USA, NFP 18-417 France, B 15, 225 Belgium, JGJ/ T 23-2011 China

Model

RH225-B

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

ABOUT SOFTWARE

The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.

Bluetooth printer- Accessories

Digital concrete test Hammer with built-in Bluetooth chip, connected to a portable Bluetooth printer, can print out the original records and test results on site.

Available for extra purchase

digital rebound hammer price digital concrete test hammer digital rebound hammer
digital rebound hammer price digital concrete test hammer digital rebound hammer

Digital upgrade design

It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate.

The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus.

The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value.

The computer online software adopts the latest data processing platform developed by LANGRY Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.

User friendly upgrade design

Built-in bluetooth chip is connected to portable bluetooth printer and can print out the original records and test results in the field.

Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment.

Removable large capacity lithium battery, super long standby, easy to maintain.

Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value.

digital rebound hammer price digital concrete test hammer digital rebound hammer
Selection
Product Name RH225-A
Concrete Test HammerHT225-N.png		 RH225-B
DigitalConcrete Test Hammer		 RH20-A

Concrete Test Hammer9.pngHT20-A正面图.png

 RH75-A
Concrete Test Hammer
LED Display — — ● — — — —
Screen dot matrix — — 265 x 64 — — — —
Net weight 1 KG 1.2 KG 0.8KG 0.9 KG
PC Software — — ● — — — —
bluetooth — — ● — — — —
Battery Power — — ● — — — —
Impact Energy 2.207 J 2.207 J 0.196 J 0.735 J
Calibration value of testing anvil 80±2 80±2 74±2 74±2
Compressive strength range 10-70N/mm2 10-70N/mm2 2-15N/mm2 10-70N/mm2
Technical Parameters
Name Technical indicators
Memory storage 240 standard components
Display screen 256*64 (dot matrix)
Online communication rate 115.2 kbps
Battery Power 4.2V lithium battery, 2300 mAh
Standard impact energy 2.207 J
Elastic tension spring stiffness 785 ± 30 N/m
Stretch length of impact spring 75±0.3 mm
Calibration value on testing anvil 80±2
Consistency of sampling indication ≤±1


Related Searches

SPECIFICATIONS

ABOUT SOFTWARE

The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.

Bluetooth printer- Accessories

Digital concrete test Hammer with built-in Bluetooth chip, connected to a portable Bluetooth printer, can print out the original records and test results on site.

Available for extra purchase

digital rebound hammer price digital concrete test hammer digital rebound hammer
digital rebound hammer price digital concrete test hammer digital rebound hammer

Digital upgrade design

It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate.

The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus.

The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value.

The computer online software adopts the latest data processing platform developed by LANGRY Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.

User friendly upgrade design

Built-in bluetooth chip is connected to portable bluetooth printer and can print out the original records and test results in the field.

Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment.

Removable large capacity lithium battery, super long standby, easy to maintain.

Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value.

digital rebound hammer price digital concrete test hammer digital rebound hammer
Selection
Product Name RH225-A
Concrete Test HammerHT225-N.png		 RH225-B
DigitalConcrete Test Hammer		 RH20-A

Concrete Test Hammer9.pngHT20-A正面图.png

 RH75-A
Concrete Test Hammer
LED Display — — ● — — — —
Screen dot matrix — — 265 x 64 — — — —
Net weight 1 KG 1.2 KG 0.8KG 0.9 KG
PC Software — — ● — — — —
bluetooth — — ● — — — —
Battery Power — — ● — — — —
Impact Energy 2.207 J 2.207 J 0.196 J 0.735 J
Calibration value of testing anvil 80±2 80±2 74±2 74±2
Compressive strength range 10-70N/mm2 10-70N/mm2 2-15N/mm2 10-70N/mm2
Technical Parameters
Name Technical indicators
Memory storage 240 standard components
Display screen 256*64 (dot matrix)
Online communication rate 115.2 kbps
Battery Power 4.2V lithium battery, 2300 mAh
Standard impact energy 2.207 J
Elastic tension spring stiffness 785 ± 30 N/m
Stretch length of impact spring 75±0.3 mm
Calibration value on testing anvil 80±2
Consistency of sampling indication ≤±1

FEATURES

ABOUT SOFTWARE

The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.

Bluetooth printer- Accessories

Digital concrete test Hammer with built-in Bluetooth chip, connected to a portable Bluetooth printer, can print out the original records and test results on site.

Available for extra purchase

digital rebound hammer price digital concrete test hammer digital rebound hammer
digital rebound hammer price digital concrete test hammer digital rebound hammer

Digital upgrade design

It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate.

The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus.

The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value.

The computer online software adopts the latest data processing platform developed by LANGRY Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.

User friendly upgrade design

Built-in bluetooth chip is connected to portable bluetooth printer and can print out the original records and test results in the field.

Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment.

Removable large capacity lithium battery, super long standby, easy to maintain.

Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value.

digital rebound hammer price digital concrete test hammer digital rebound hammer
Selection
Product Name RH225-A
Concrete Test HammerHT225-N.png		 RH225-B
DigitalConcrete Test Hammer		 RH20-A

Concrete Test Hammer9.pngHT20-A正面图.png

 RH75-A
Concrete Test Hammer
LED Display — — ● — — — —
Screen dot matrix — — 265 x 64 — — — —
Net weight 1 KG 1.2 KG 0.8KG 0.9 KG
PC Software — — ● — — — —
bluetooth — — ● — — — —
Battery Power — — ● — — — —
Impact Energy 2.207 J 2.207 J 0.196 J 0.735 J
Calibration value of testing anvil 80±2 80±2 74±2 74±2
Compressive strength range 10-70N/mm2 10-70N/mm2 2-15N/mm2 10-70N/mm2
Technical Parameters
Name Technical indicators
Memory storage 240 standard components
Display screen 256*64 (dot matrix)
Online communication rate 115.2 kbps
Battery Power 4.2V lithium battery, 2300 mAh
Standard impact energy 2.207 J
Elastic tension spring stiffness 785 ± 30 N/m
Stretch length of impact spring 75±0.3 mm
Calibration value on testing anvil 80±2
Consistency of sampling indication ≤±1
Questions And Answers
  • Q:Are your company a trading one or a factory?
  • A:Trading and factory.A professional manufacturer of NDT instruments.
  • Q:After an order is placed, when to deliver?
  • A:We have it in stock, So we can arrange shipment within 3 days.
  • Q:What about the warranty with after-sales services?
  • A:In 12 months, the professional after-sale service team will provide 24 hours online technical support.
  • Q:What about the product’s services and quality?
  • A:Each instrument must be carried out 100% quality examination when delivering goods and each of our products provide video training to show you how to install and operate.
