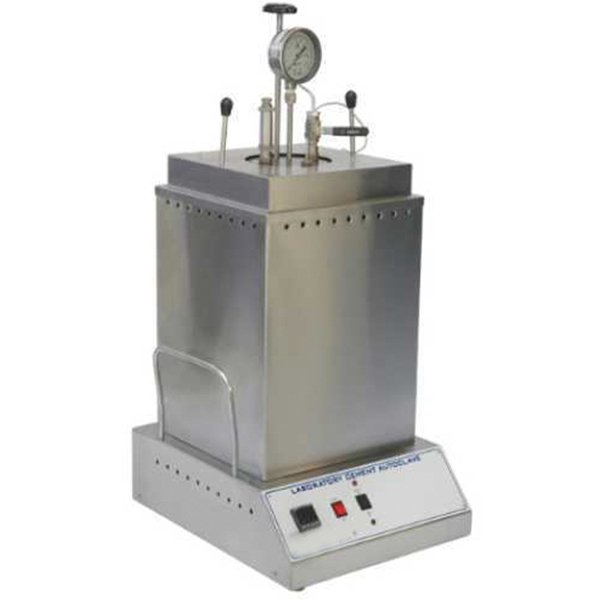

Laboratory Type Cement Autoclave VSLIC-C115

short info

The Cement Autoclave Test, performed is a method to measure the soundness or potential delayed expansion of cement, specifically by assessing its tendency for expansion under high-pressure steam conditions. The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature.

Standard

IS 4031:1988 (P-3), ASTM C151, ASTM C490

Model

VSLIC-C115

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Compliance Standards :

IS 4031:1988 (P-3), ASTM C151, ASTM C490

Applications :

The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature.

Construction Details :

It consists of a stainless steel cylinder with a welded heat insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, power switches and pilot lights for controlling the electric heating units.

Salient Features :

  1. Suitable to test soundness and expansion of cement Autoclave apparatus, meet requirement as per Cl 6.1 and Cl 6.4 of IS 4031 (P-3): 1988.
  2. The capacity of heating unit of autoclave will be such that with maximum load (Water plus cement specimens) the pressure of saturated steam in autoclave will be raised to a gauge pressure of 2.1MPa or absolute pressure of about 2.2 MPa in 1 to 1¼ hour from the time the heat is turned on.
  3. The automatic pressure control will be capable of maintaining the pressure at 2.1 ± 0.1 MPA corresponding to a temperature of 215.7 ± 1.7° C.
  4. The autoclave will be so designed that to permit the pressure to drop from 2.1 MPa to less than 0.07 MPA in one hour after the heat supply is cut off.
  5. The autoclave will consist of S.S. pressure vessel enclosed in heat insulated stainless steel chamber mounted on sturdy frame.
  6. Fiber glass/Glass Wool as insulating material.
  7. Silicon rubber lid sealing gasket provided.
  8. Digital thermometer with least count of 0.1°C with range up to 250°C provided.
  9. Internal Diameter 150mm x 500mm depth
  10. A microprocessor based PID controller provided to control the required pressure inside the pressure vessel of autoclave.
  11. The pressure gauge diameter 115mm with scale range from 0 to 42 kg/cm2 with Scale division of 0.4 kg/cm2, Accuracy ± 0.2 kg/cm2 at the operating pressure of 21 kg/cm2
  12. Provided with spring loaded safety valve. The Safety valve is set at above 6 to 10% above the maximum pressure of 21 kg/cm2 at which the safety valve opens or begins to open.
  13. Calibration certificate of Pressure gauge and Thermometer will be furnished along with equipment.

Optional accessories at extra cost:

  1. Length comparator with dial gauge
  2. Length comparator with Digital dial gauge

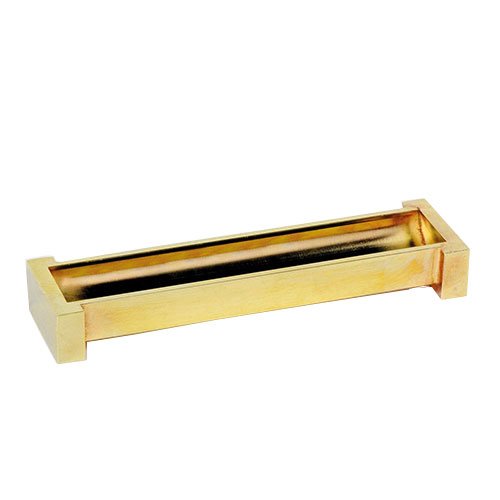

  3. Shrinkage mould – 1 compartment
  4. Shrinkage mould – 2 compartment
  5. Shrinkage mould – 3 compartment
  6. Shrinkage mould – 4 compartment


Related Searches

SPECIFICATIONS

Compliance Standards :

IS 4031:1988 (P-3), ASTM C151, ASTM C490

Applications :

The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature.

Construction Details :

It consists of a stainless steel cylinder with a welded heat insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, power switches and pilot lights for controlling the electric heating units.

Salient Features :

  1. Suitable to test soundness and expansion of cement Autoclave apparatus, meet requirement as per Cl 6.1 and Cl 6.4 of IS 4031 (P-3): 1988.
  2. The capacity of heating unit of autoclave will be such that with maximum load (Water plus cement specimens) the pressure of saturated steam in autoclave will be raised to a gauge pressure of 2.1MPa or absolute pressure of about 2.2 MPa in 1 to 1¼ hour from the time the heat is turned on.
  3. The automatic pressure control will be capable of maintaining the pressure at 2.1 ± 0.1 MPA corresponding to a temperature of 215.7 ± 1.7° C.
  4. The autoclave will be so designed that to permit the pressure to drop from 2.1 MPa to less than 0.07 MPA in one hour after the heat supply is cut off.
  5. The autoclave will consist of S.S. pressure vessel enclosed in heat insulated stainless steel chamber mounted on sturdy frame.
  6. Fiber glass/Glass Wool as insulating material.
  7. Silicon rubber lid sealing gasket provided.
  8. Digital thermometer with least count of 0.1°C with range up to 250°C provided.
  9. Internal Diameter 150mm x 500mm depth
  10. A microprocessor based PID controller provided to control the required pressure inside the pressure vessel of autoclave.
  11. The pressure gauge diameter 115mm with scale range from 0 to 42 kg/cm2 with Scale division of 0.4 kg/cm2, Accuracy ± 0.2 kg/cm2 at the operating pressure of 21 kg/cm2
  12. Provided with spring loaded safety valve. The Safety valve is set at above 6 to 10% above the maximum pressure of 21 kg/cm2 at which the safety valve opens or begins to open.
  13. Calibration certificate of Pressure gauge and Thermometer will be furnished along with equipment.

Optional accessories at extra cost:

  1. Length comparator with dial gauge
  2. Length comparator with Digital dial gauge
  3. Shrinkage mould – 1 compartment
  4. Shrinkage mould – 2 compartment
  5. Shrinkage mould – 3 compartment
  6. Shrinkage mould – 4 compartment

FEATURES

Compliance Standards :

IS 4031:1988 (P-3), ASTM C151, ASTM C490

Applications :

The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature.

Construction Details :

It consists of a stainless steel cylinder with a welded heat insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, power switches and pilot lights for controlling the electric heating units.

Salient Features :

  1. Suitable to test soundness and expansion of cement Autoclave apparatus, meet requirement as per Cl 6.1 and Cl 6.4 of IS 4031 (P-3): 1988.
  2. The capacity of heating unit of autoclave will be such that with maximum load (Water plus cement specimens) the pressure of saturated steam in autoclave will be raised to a gauge pressure of 2.1MPa or absolute pressure of about 2.2 MPa in 1 to 1¼ hour from the time the heat is turned on.
  3. The automatic pressure control will be capable of maintaining the pressure at 2.1 ± 0.1 MPA corresponding to a temperature of 215.7 ± 1.7° C.
  4. The autoclave will be so designed that to permit the pressure to drop from 2.1 MPa to less than 0.07 MPA in one hour after the heat supply is cut off.
  5. The autoclave will consist of S.S. pressure vessel enclosed in heat insulated stainless steel chamber mounted on sturdy frame.
  6. Fiber glass/Glass Wool as insulating material.
  7. Silicon rubber lid sealing gasket provided.
  8. Digital thermometer with least count of 0.1°C with range up to 250°C provided.
  9. Internal Diameter 150mm x 500mm depth
  10. A microprocessor based PID controller provided to control the required pressure inside the pressure vessel of autoclave.
  11. The pressure gauge diameter 115mm with scale range from 0 to 42 kg/cm2 with Scale division of 0.4 kg/cm2, Accuracy ± 0.2 kg/cm2 at the operating pressure of 21 kg/cm2
  12. Provided with spring loaded safety valve. The Safety valve is set at above 6 to 10% above the maximum pressure of 21 kg/cm2 at which the safety valve opens or begins to open.
  13. Calibration certificate of Pressure gauge and Thermometer will be furnished along with equipment.

Optional accessories at extra cost:

  1. Length comparator with dial gauge
  2. Length comparator with Digital dial gauge
  3. Shrinkage mould – 1 compartment
  4. Shrinkage mould – 2 compartment
  5. Shrinkage mould – 3 compartment
  6. Shrinkage mould – 4 compartment
