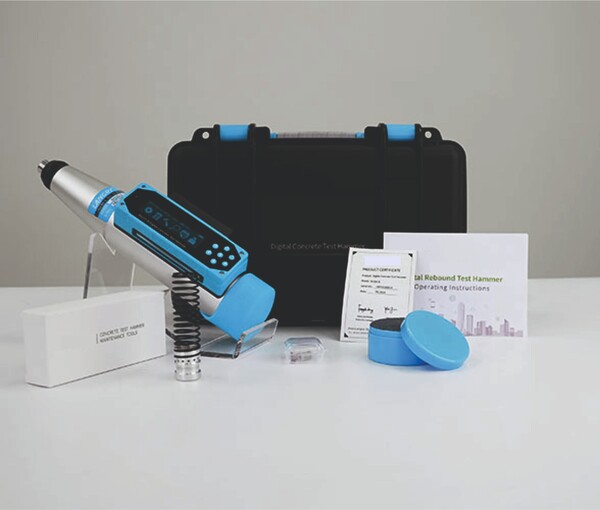

VERTEX Silver Schimdt Digital Rebound Hammer Upgraded
Silver Schimdt
Copyright @2023 Vertex Group
Copyright @2023 Vertex Group
short info
Silver Schimdt digital Rebound Hammer used for testing the compressive strength of ordinary concrete in the range of 10 to 100 N/mm²in structural engineering.
Standard
IS: 13311(2)-1992 India, ISO/DIS 8045 International, EN 12 504-2 Europe, ENV 206 Europe, BS 1881, part 202 Great Britain, DIN 1048, part 2 Germany, ASTM C 805 USA, NFP 18-417 France, B 15, 225 Belgium, JGJ/ T 23-2011 China
Model
Silver Schimdt
Origin
Indian
Make/ OEM
VERTEX
Warranty
This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.
All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.
The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.
Available for extra purchaseDigital upgrade design It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate. The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus. The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value. The computer online software adopts the latest data processing platform developed by VERTEX Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.
User friendly upgrade design Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment. Removable large capacity lithium battery, super long standby, easy to maintain. Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value. Selection
The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.
Available for extra purchaseDigital upgrade design It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate. The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus. The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value. The computer online software adopts the latest data processing platform developed by VERTEX Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.
User friendly upgrade design Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment. Removable large capacity lithium battery, super long standby, easy to maintain. Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value. Selection
Product Name
Concrete Test Hammer
Silver Schimdt
Digital Concrete Test Hammer
Concrete Test Hammer
Concrete Test Hammer
LED Display
— —
YES
— —
— —
Screen dot matrix
— —
265 x 64
— —
— —
Net weight
1 KG
1.2 KG
0.8KG
0.9 KG
PC Software
— —
yes
— —
— —
Battery Power
— —
YES
— —
— —
Impact Energy
2.207 J
2.207 J
0.196 J
0.735 J
Calibration value of testing anvil
80±2
80±2
74±2
74±2
Compressive strength range
10-100N/mm2
10-100N/mm2
2-15N/mm2
10-100N/mm2
Technical Parameters
Name
Technical indicators
Memory storage
240 standard components
Display screen
256*64 (dot matrix)
Online communication rate
115.2 kbps
Battery Power
4.2V lithium battery, 2300 mAh
Standard impact energy
2.207 J
Elastic tension spring stiffness
785 ± 30 N/m
Stretch length of impact spring
75±0.3 mm
Calibration value on testing anvil
80±2
Consistency of sampling indication
≤±1
FEATURES
ABOUT SOFTWARE
The Digital Concrete Test Hammer Online System software can run under a Windows operating environment, collecting sampling data saved by the rebound hammer, and verifying, storing, and calculating the data. It can also be used at a high level, including printing reports, exporting data, and managing instruments online.
Available for extra purchaseDigital upgrade design It adopts mobile phone keystroke technology and seven-key design. The product is characterized by better hand feeling, longer life, faster response, easier to operate. The modular design of the electronic warehouse can be quickly assembled with the ordinary mechanical rebound apparatus into a new integrated digital rebound apparatus. The rebound value is collected by non-contact grating and photocoupling sensor. There is no wire connection between the pointer block and the circuit board, Higher accuracy, more stable rebound value. The computer online software adopts the latest data processing platform developed by VERTEX Technology, which has the function of automatic importing rebound value and automatic identifying port, integrating rich report formats and various data export formats, and giving users a more perfect experience.
User friendly upgrade design Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment. Removable large capacity lithium battery, super long standby, easy to maintain. Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value. Selection
Product Name
Concrete Test Hammer
Silver Schimdt
Digital Concrete Test Hammer
Concrete Test Hammer
Concrete Test Hammer
LED Display
— —
YES
— —
— —
Screen dot matrix
— —
265 x 64
— —
— —
Net weight
1 KG
1.2 KG
0.8KG
0.9 KG
PC Software
— —
yes
— —
— —
Battery Power
— —
YES
— —
— —
Impact Energy
2.207 J
2.207 J
0.196 J
0.735 J
Calibration value of testing anvil
80±2
80±2
74±2
74±2
Compressive strength range
10-100N/mm2
10-100N/mm2
2-15N/mm2
10-100N/mm2
Technical Parameters
Name
Technical indicators
Memory storage
240 standard components
Display screen
256*64 (dot matrix)
Online communication rate
115.2 kbps
Battery Power
4.2V lithium battery, 2300 mAh
Standard impact energy
2.207 J
Elastic tension spring stiffness
785 ± 30 N/m
Stretch length of impact spring
75±0.3 mm
Calibration value on testing anvil
80±2
Consistency of sampling indication
≤±1
