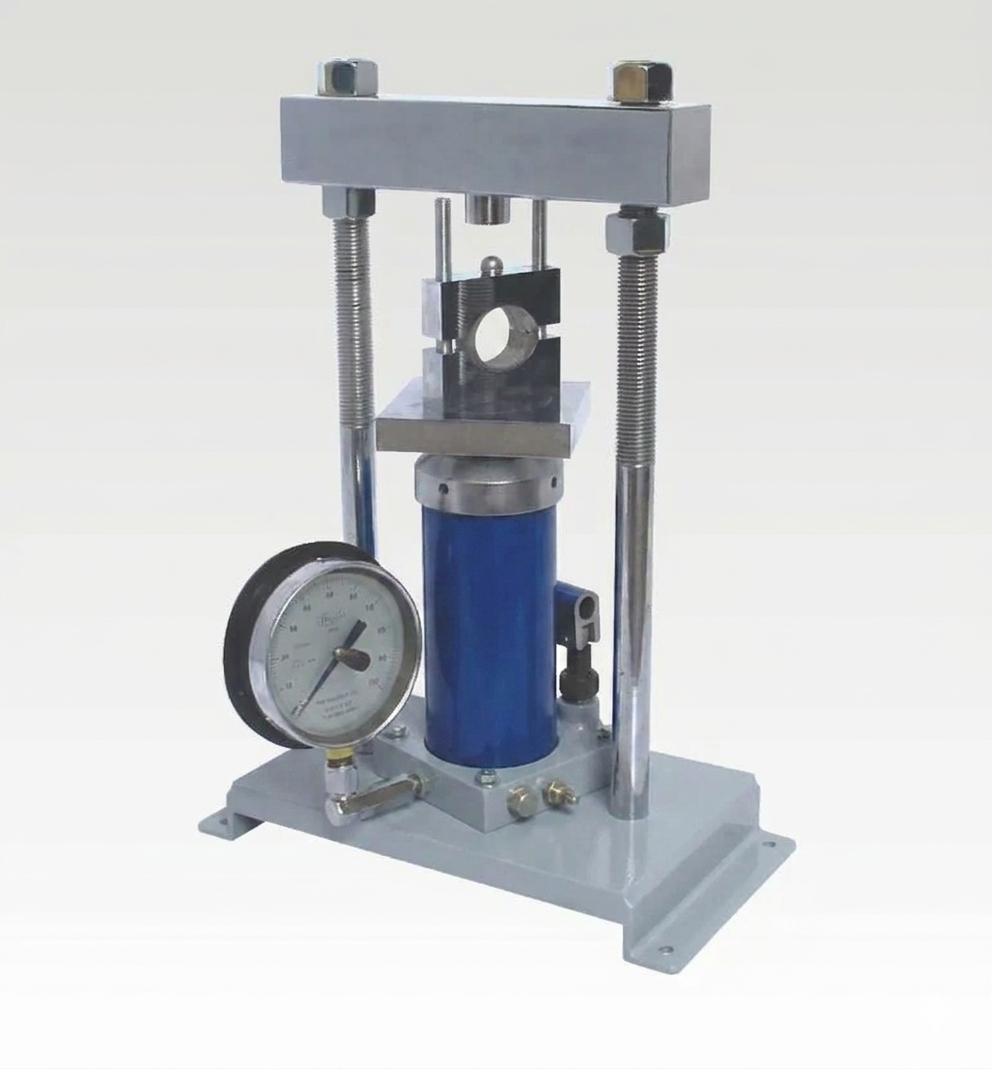

The instrument is designed to test specimens from 50 mm dia to 100 mm dia having thickness equal to half of the diameter for determination of Indirect Tensile Strength. A pair of loading jaws, designed so as to contact a disc shaped sample at diametrically opposed surfaces over an arc of contact of about 10 degrees at failure, is supplied. The set of jaws supplied with the equipment is designed for 50 mm dia specimen and therefore it is essential to order jaws for required sizes, if the samples of other diameters are to be tested.
For 60 X 30, 70 X 35, 80 X 40, 90 X 45 and 100 X 50 mm samples, loading jaws has to be purchased separately.
- Machine Operation : Motorized
- Read out : Digital
- Least count : 0.001 kn
- Capacity : 100 kN
- Calibration : 10 Point calibration
- Peak load will be hold on the first line and first line will show the actual load
- Auto stop after failure of the sample
- Simple plug and play instrument
