quick info

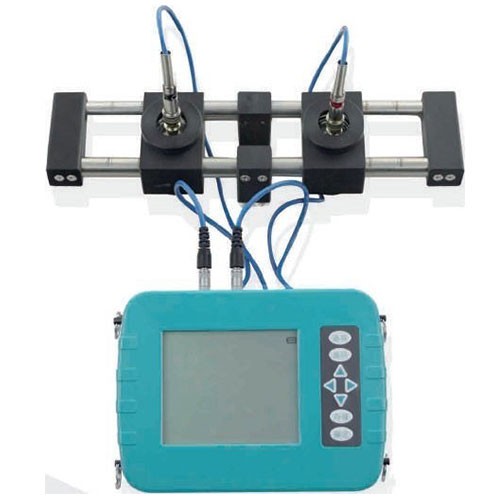

Crack depth tester is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

GTJ-FSY

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Crack depth tester is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.

Product Features:

  • New upgraded wireless cloud transmission function.
  • It adopts three anti-shell design, waterproof, dustproof and shockproof.
  • On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth.
  • The instrument is easy to operate, fast to master, no need for professional knowledge.
  • High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.
  • Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.

SPECIFICATIONS

Host parameters Waterproof level: IP65, Screen size: 5 inches LCD

resolution: 640 × 480, Volume:195×140×45mm,

Weight:0.8kg

Crack depth test range ≤500mm
Test error ≤ 5mm or 2% to 10% of the actual depth
Measurement method Standard measurement       fast measurement (quick test stand)
Data transmission interface USB
Data storage capacity 20,000 sets
Data transmission method Wireless cloud transmission (optional)
Power supply Large capacity lithium battery
Work environment Temperature: -10 ° C ~ 40 ° C, Humidity: <90% RH
Packing specification Material: engineering plastic, Volume: 420 × 140 × 335mm, Weight: 5.5kg

FEATURES

Product Features:

  • New upgraded wireless cloud transmission function.
  • It adopts three anti-shell design, waterproof, dustproof and shockproof.
  • On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth.
  • The instrument is easy to operate, fast to master, no need for professional knowledge.
  • High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.
  • Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
