About Beam Deflection Setup

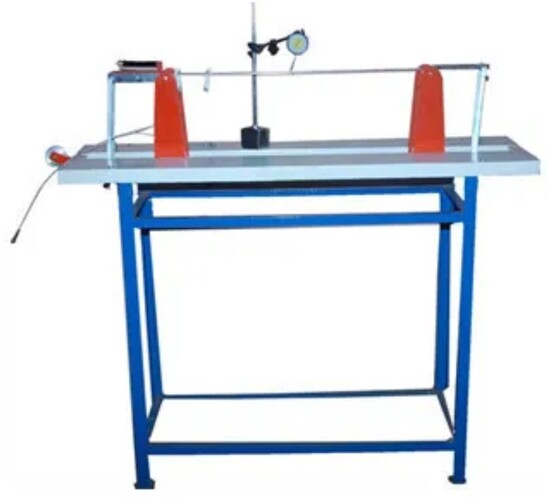

Beam Deflection Setup
The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations.
A steel beam and two load hangers are supplied together with two dial gauges for measuring beam deflections and slopes. This equipment is part of a ranged to both, demonstrate and experimentally confirm basic engineering principles. Following experiments can be performed with this unit.
Precision Engineering for Accurate Results
Manufactured from robust mild steel and finished in blue and red, this Beam Deflection Setup guarantees reliable performance and endurance in demanding laboratory settings. The table top mounted design ensures stability during experiments and easy integration into existing workspaces.
Manual Operation for Educational Insight
With a manual power supply, the Beam Deflection Setup allows users to engage directly with the fundamentals of beam physics. This hands-on approach enhances understanding, making it highly suitable for academic environments and laboratory demonstrations.
Technical
We offer optimum quality of Deflected Beam Apparatus. Apparatus should of consists of a mild steel beam 2.5cm x 3mm in cross section and 100cm long, pinned to two supports 70cm apart situated symmetrically. One of the ends can be fixed or given a known slope by applying a known moment at the end with the help of suspended loads. At the other end also a known moment can be applied. Vertical loads can be applied at various points along the span of the beam. A dial gauge with 25mm travel (with a magnetic base) may be supplied with the apparatus. Apparatus to be supplied should be complete with a supporting stand and a set of weights.
