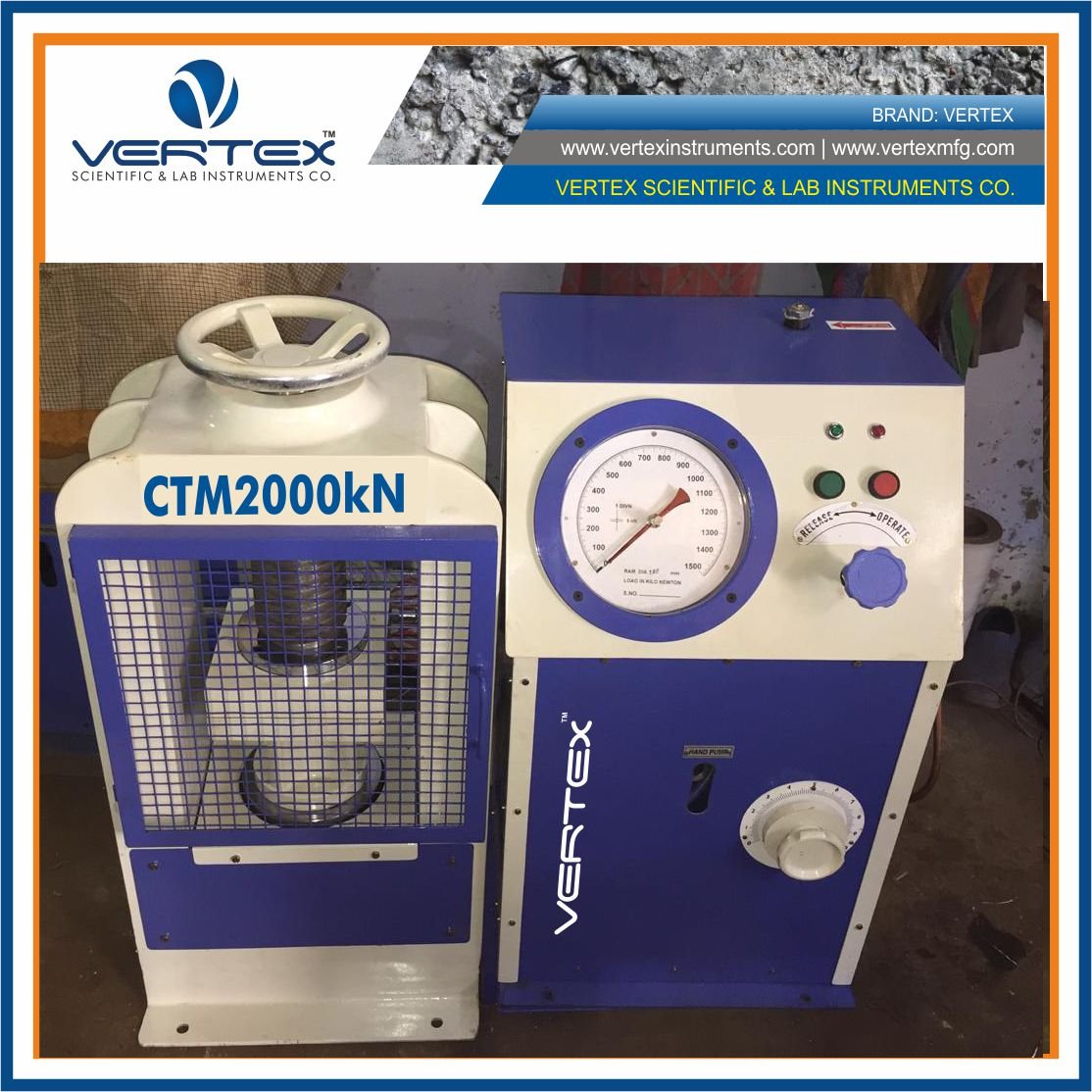

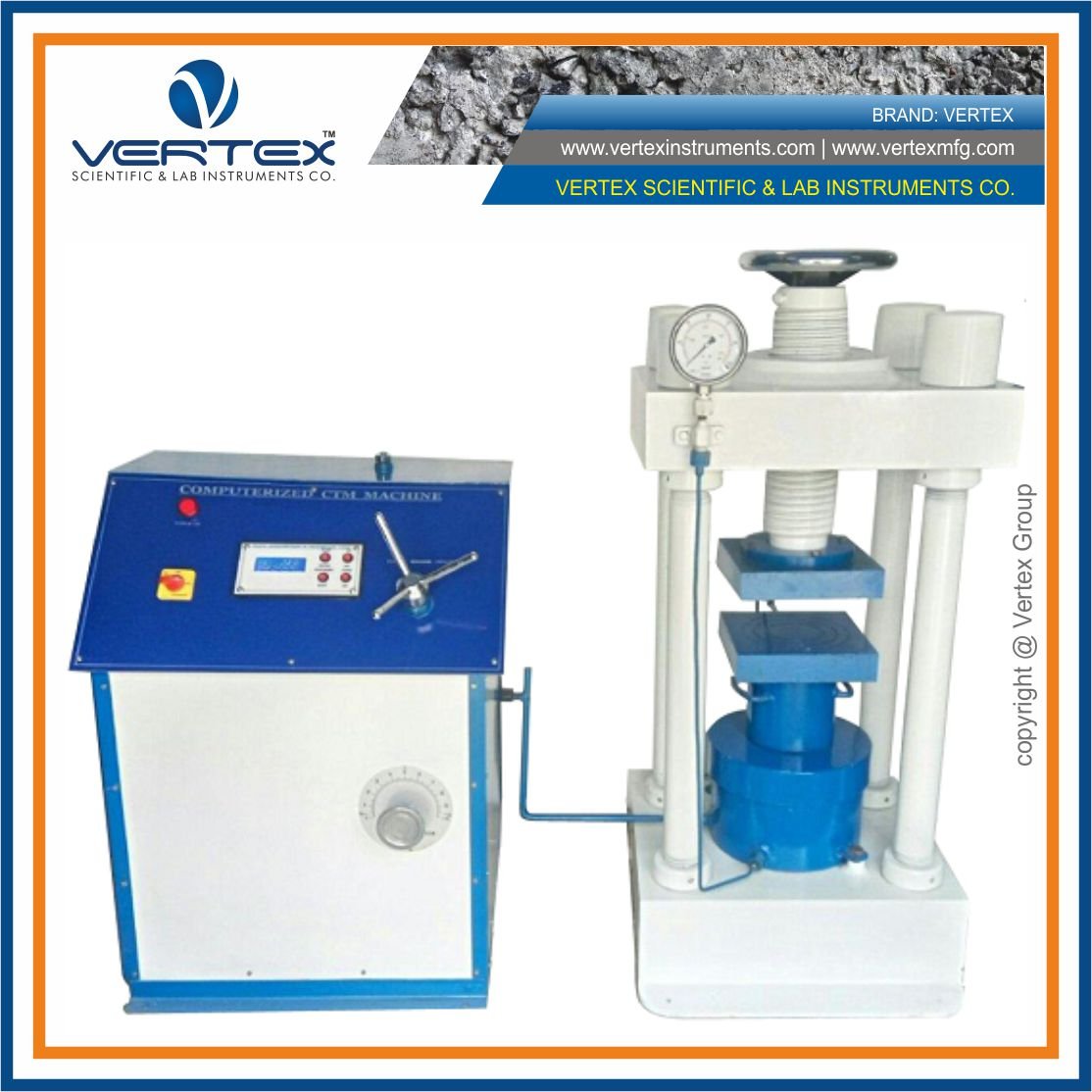

Compression Testing Machine(CTM)-2000kN (Digital + Analogue + Manual) VSLIC-C282

short info

VERTEX Series of Compression Testing Machines-CTM are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non-technical personnel to operate them with ease and complete dependability. In particular, the portable units, which are small in dimensions, sturdy and light in weight, make quality control testing possible in areas where commercial testing facilities are not available and where the transportation of larger and much heavier machines would be difficult.

Standard

IS : 14858 (2000), EN 12390-4, ASTM C39, AASHTO T22

Model

VSLIC-C282

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

VERTEX Series of Compression Testing Machines-CTM are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non-technical personnel to operate them with ease and complete dependability. In particular, the portable units, which are small in dimensions, sturdy and light in weight, make quality control testing possible in areas where commercial testing facilities are not available and where the transportation of larger and much heavier machines would be difficult.

VERTEX Compression Testing Machines conform to IS: 14858(2000) and calibrated with an accuracy of± 1 % as per the requirement of 1828(Class1). It can also be supplied as per BS: 1881 and other associated International Standards. These machines are available in 50kN, 100kN,500kN, 1000kN,2000kN, 3000kN & 5000kN Capacities.



Capacity (In kN) 250kN 500kN 1000kN 1500kN 2000kN
Pressure Gauge (In kN) 250kN 500kN 1000kN 1500kN 2000kN
Least Count (In kN) 1kN 2kN 5kN 5kN 10kN
Pressure Gauge Diameter (mm) 200 200 200 200 200
Vertical Daylight (mm) 310 (Adj) 310 (Adj) 310 (Adj) 310 (Adj) 410 (Adj)
Horizontal Clearance (mm) 210 210 260 280 330
Platen Diameter (mm) 200 200 220 250 300
Ram Diameter (mm) 83 117 165 181 234
Ram Travel (mm) 50 50 50 50 50
Specimen Size (Can be Tested):
Cube 50mm, 70.6mm 50mm, 70.6mm, 100mm 100mm, 150mm 100mm, 150mm 100mm, 150mm
Cylindrical ——- ——- 100mm x 200mm, 150mm x 300mm 100mm x 200mm, 150mm x 300mm 100mm x 200mm, 150mm x 300mm


Related Searches

SPECIFICATIONS

VERTEX Series of Compression Testing Machines-CTM are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non-technical personnel to operate them with ease and complete dependability. In particular, the portable units, which are small in dimensions, sturdy and light in weight, make quality control testing possible in areas where commercial testing facilities are not available and where the transportation of larger and much heavier machines would be difficult.

VERTEX Compression Testing Machines conform to IS: 14858(2000) and calibrated with an accuracy of± 1 % as per the requirement of 1828(Class1). It can also be supplied as per BS: 1881 and other associated International Standards. These machines are available in 50kN, 100kN,500kN, 1000kN,2000kN, 3000kN & 5000kN Capacities.

FEATURES

Compression Testing Machines Classification:

  • Analogue models.
  • Digital models with pace rate indicators.
  • Micro Controller based models with automatic pace rate controllers.
  • Fully Automatic models.
  • Servo models.
  • Touch Screen Models (Digital, Micro Controller & Automatic)
