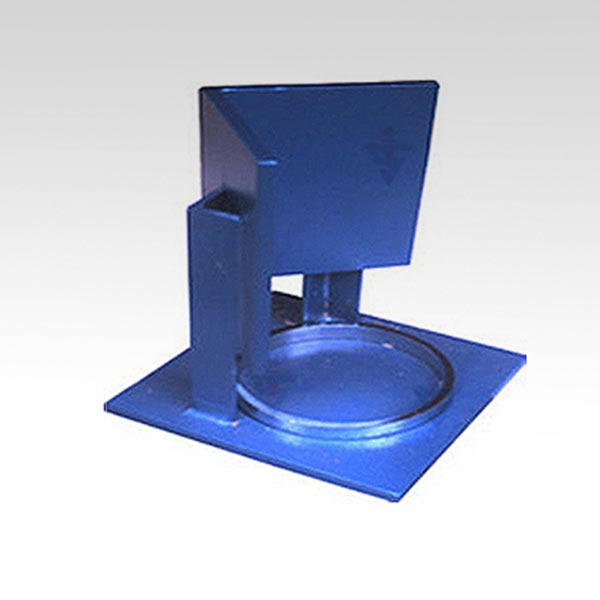

Capping Set (Vertical) VSLIC-C239

short info

Capping Set (Vertical) is basically used in construction Laboratories is because It is essential that the ends of the concrete cylinder specimens are flat and parallel when conducting a compressive strength test.

Complete with Cylinder capper, Cylinder carriers, Capping compound 5 kg, Melting pot and rubber capping pad for 150mm and 100mm dia cylinders.

Standard

ASTM C31, C192, C617, AASHTO T-23, T-126, IS: 516, BS 1881-120, IS:1199(Part-5)

Model

VSLIC-C239

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Applications

When testing concrete cylinder specimens it is essential that the two ends are perfectly flat. VERTEX Capping Set (Vertical) set allows the ends of the various sizes of concrete cylinders (100 or 150 mm) or cores to be capped using the sulphur capping compound.

Supplied complete with following parts and accessories

1. Cylinder cappers

Used to assure plane end surfaces perpendicular to the axis of the cylinder during the capping. Base and capping plate machined from steel. Guide is machined from cast aluminum or steel. Suitable for both 100 and 150mm diameter cylinders.

2. Cylinder carriers

A simple accessory for an easy handling of specimens. Only available for dia. 150 mm (6”x12”) and 160 x 320 mm sizes.

3. Capping compound

The compound is a mixture of sulphur and mineral filler to give a high finish and performance. 5 kgs Powder will be provided. Capping Gypsum also available in different varieties

4. Melting pot (Round bath)

Used to melt the capping compound. The temperature is set and maintained at the desired value. Adjustable electronic thermo-regulator and pilot lamp fully isolated conforming to CE requirement.

  1. Capacity : 2.5 liters approximately
  2. Temperature range : From +30 °C to 150 °C
  3. Power : 700 W
  4. Dimensions : Internal 200 mm diameter x 75 mm depth
  5. External : 330 mm diameter x 215 mm high
  6. Weight approx : 7.7 kg

6. Rubber washer-capping pad-100 x 13 mm-for capping set

7. Rubber washer-capping pad-150 x 13 mm-for capping set

Ordering Information:

VSLIC-C239-1              Capping Set- Vertical, for Capping 150 mm dia Cylinders and Cores.

VSLIC-C239-2             Capping Set- Vertical, for Capping 100 mm dia Cylinders and Cores.

Optional Accessories

VSLIC-C239-3             Capping Mould, For capping 150 mm dia concrete Cylinders.

VSLIC-C239-4             Capping Compound, Pack of 5kg, for capping the ends of the concrete test Cylinders.

VSLIC-C239-5             Warmer, for melting the capping compound. Consists of an electrically heated bath with a temperature regulator. Complete with a cover and carrying Handle.


Related Searches

SPECIFICATIONS

Applications

When testing concrete cylinder specimens it is essential that the two ends are perfectly flat. VERTEX Capping set allows the ends of the various sizes of concrete cylinders (100 or 150 mm) or cores to be capped using the sulphur capping compound.

Supplied complete with following parts and accessories

1. Cylinder cappers

Used to assure plane end surfaces perpendicular to the axis of the cylinder during the capping. Base and capping plate machined from steel. Guide is machined from cast aluminum or steel. Suitable for both 100 and 150mm diameter cylinders.

2. Cylinder carriers

A simple accessory for an easy handling of specimens. Only available for dia. 150 mm (6”x12”) and 160 x 320 mm sizes.

3. Capping compound

The compound is a mixture of sulphur and mineral filler to give a high finish and performance. 5 kgs Powder will be provided. Capping Gypsum also available in different varieties

4. Melting pot (Round bath)

Used to melt the capping compound. The temperature is set and maintained at the desired value. Adjustable electronic thermo-regulator and pilot lamp fully isolated conforming to CE requirement.

  1. Capacity : 2.5 liters approximately
  2. Temperature range : From +30 °C to 150 °C
  3. Power : 700 W
  4. Dimensions : Internal 200 mm diameter x 75 mm depth
  5. External : 330 mm diameter x 215 mm high
  6. Weight approx : 7.7 kg

6. Rubber washer-capping pad-100 x 13 mm-for capping set

7. Rubber washer-capping pad-150 x 13 mm-for capping set

FEATURES

Applications

When testing concrete cylinder specimens it is essential that the two ends are perfectly flat. VERTEX Capping set allows the ends of the various sizes of concrete cylinders (100 or 150 mm) or cores to be capped using the sulphur capping compound.

Supplied complete with following parts and accessories

1. Cylinder cappers

Used to assure plane end surfaces perpendicular to the axis of the cylinder during the capping. Base and capping plate machined from steel. Guide is machined from cast aluminum or steel. Suitable for both 100 and 150mm diameter cylinders.

2. Cylinder carriers

A simple accessory for an easy handling of specimens. Only available for dia. 150 mm (6”x12”) and 160 x 320 mm sizes.

3. Capping compound

The compound is a mixture of sulphur and mineral filler to give a high finish and performance. 5 kgs Powder will be provided. Capping Gypsum also available in different varieties

4. Melting pot (Round bath)

Used to melt the capping compound. The temperature is set and maintained at the desired value. Adjustable electronic thermo-regulator and pilot lamp fully isolated conforming to CE requirement.

  1. Capacity : 2.5 liters approximately
  2. Temperature range : From +30 °C to 150 °C
  3. Power : 700 W
  4. Dimensions : Internal 200 mm diameter x 75 mm depth
  5. External : 330 mm diameter x 215 mm high
  6. Weight approx : 7.7 kg

6. Rubber washer-capping pad-100 x 13 mm-for capping set

7. Rubber washer-capping pad-150 x 13 mm-for capping set

PRODUCT VIDEO

WORKING PRINCIPALNew

Capping Set – Vertical Type

Working Principle

  1. Purpose
    The capping set provides a smooth, plane, and parallel surface on the top of concrete cubes or cylinders so that load is uniformly distributed during compression testing.

  2. Specimen Placement

    • The concrete cube/cylinder is placed vertically inside the capping mould.

    • The mould holds the specimen firmly in a perfect vertical alignment.

  1. Capping Material Application

    • Molten sulphur compound / capping compound or cement-based capping material is poured on the top surface.

    • The material fills surface irregularities of the specimen.

  2. Levelling & Alignment

    • Due to the vertical design, gravity helps the capping material to settle evenly.

    • The top plate or guide ensures the capped surface becomes flat and parallel to the base.

  3. Hardening

    • The capping material is allowed to cool or set.

    • Once hardened, it forms a rigid, smooth bearing surface.

  4. Testing Ready

    • The capped specimen is removed.

    • It is now ready for testing in a Compression Testing Machine (CTM) with accurate and reliable results.
