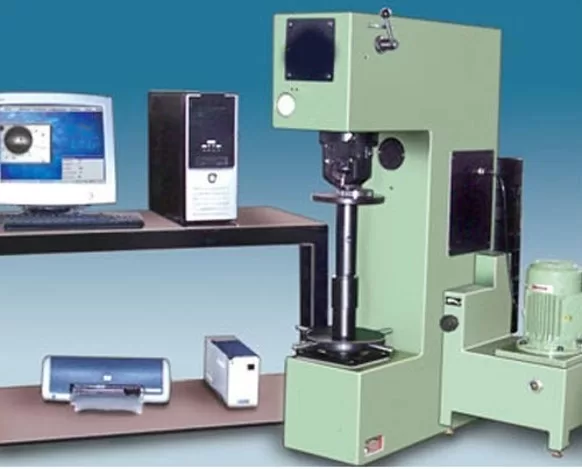

Brinell Hardness Testing Machine VSLIC-SM123

short info

Computerized digital Brinell Hardness Testing machine As per IS 2281, IS 1500, ASTM E-10 or latest specification.

Machine is having Loading and Unloading of Machine Hydraulically Indentation image and hardness number will appear on computer screen directly

Standard

IS:1500-2, BS:10003-2, ASTM-10

Model

VSLIC-SM123

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Description : Supply, installation, Commissioning and testing of Computerized digital Brinell Hardness Testing machine As per IS 2281, IS 1500, ASTM E-10 or latest specification Along with standard accessories.

  • Machine is having Loading and Unloading of Machine Hydraulically Indentation image and hardness number will appear on computer screen directly

The Software should Includes-

  • -Facility for Auto / semi Auto / Manual modes of operation.
  • -Well managed database saves readings W.R.T. batch and certificate.
  • -Report generation in the form of certificate and graph as per customer requirements.
  • -Facility for calibration and check of calibration

Latest GUI Features:

  • User friendly software with all help file and Windows features.
  • Online indentation setting and focusing on PC monitor.
  • Advance Image Processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen.
  • Batch File Processing : Option for data/storage and reports generation.
  • Statistical Evaluation : Software for calculating deviation, mode, medium, histogram etc.
  • Wide option in calibration mode.
  • Extensibility for future advanced image processing analysis requirements.




Related Searches

SPECIFICATIONS

1.    TECHNICAL SPECIFICATION

SPECIFICATIONS UNIT Range
Loads 200 500 to 3000 in stages of 250
Initial Load kgf NIL
Max. Testing Height mm 380
Depth of Throat mm 200
Max. Depth of elevating screw below base mm 180
Size of Base mm 370×670
Machine Height mm 1185
Net Weight (Approx.) Kg. 500
Drive Motor HP 0.33-415 v/p

  1. STANDARD ACCESSORIES

DESCRIPTION QTY
Testing table 200 mm 1 pc
Testing table V groove 70 mm 1 pc
Ball Holder 5 mm 2 pc
Ball Holder 10 mm 2 pc
Test Block HB – 5/750 1 pc
Test Block HB – 10/3000 1 pc
Allen Spanner 4 pc
Tungsten carbide ball 5 mm and 10 mm 5 Pc Each
Telescopic cover for elevating screw protection 1 set
Instruction Manual 1 book

Extra accessories required (Optional)

Brinell hardness test block 10/3000 HBW with NABL calibration certificate as per Std. IS:1500 Part:3)/2013 & ISO:6506.3/2005. (a) 100-125 HBW & (b) 500- 550 HBW.

FEATURES

  • Fully computerized (PC based) Brinell Hardness Tester.
  • Direct and accurate measurement of Brinell hardness number using ‘State of the art’ image processing technology.
  • ‘Wide testing range’ from soft metal to medium hardness steels.
  • High accuracy and repeatability of measurement at all loads
  • Faster measurement yielding to higher productivity.
  • Hydraulic loading and unloading cycle.
  • Advanced window based software.

PRODUCT VIDEO

WORKING PRINCIPALNew
